4"x2"PVC coated welded wire mesh

Material： Galvanized Iron wire

Surface Treatment： PVC Coated Welded Wire Mesh

Wire diameter: 0.5mm-3.0mm

Mesh size(mm): 4"x2"

Width: 0.5m-2.5m

Lenght: 10m-30m

Application： Widely used in industries such as industry, agriculture, construction, transportation, mining, etc.

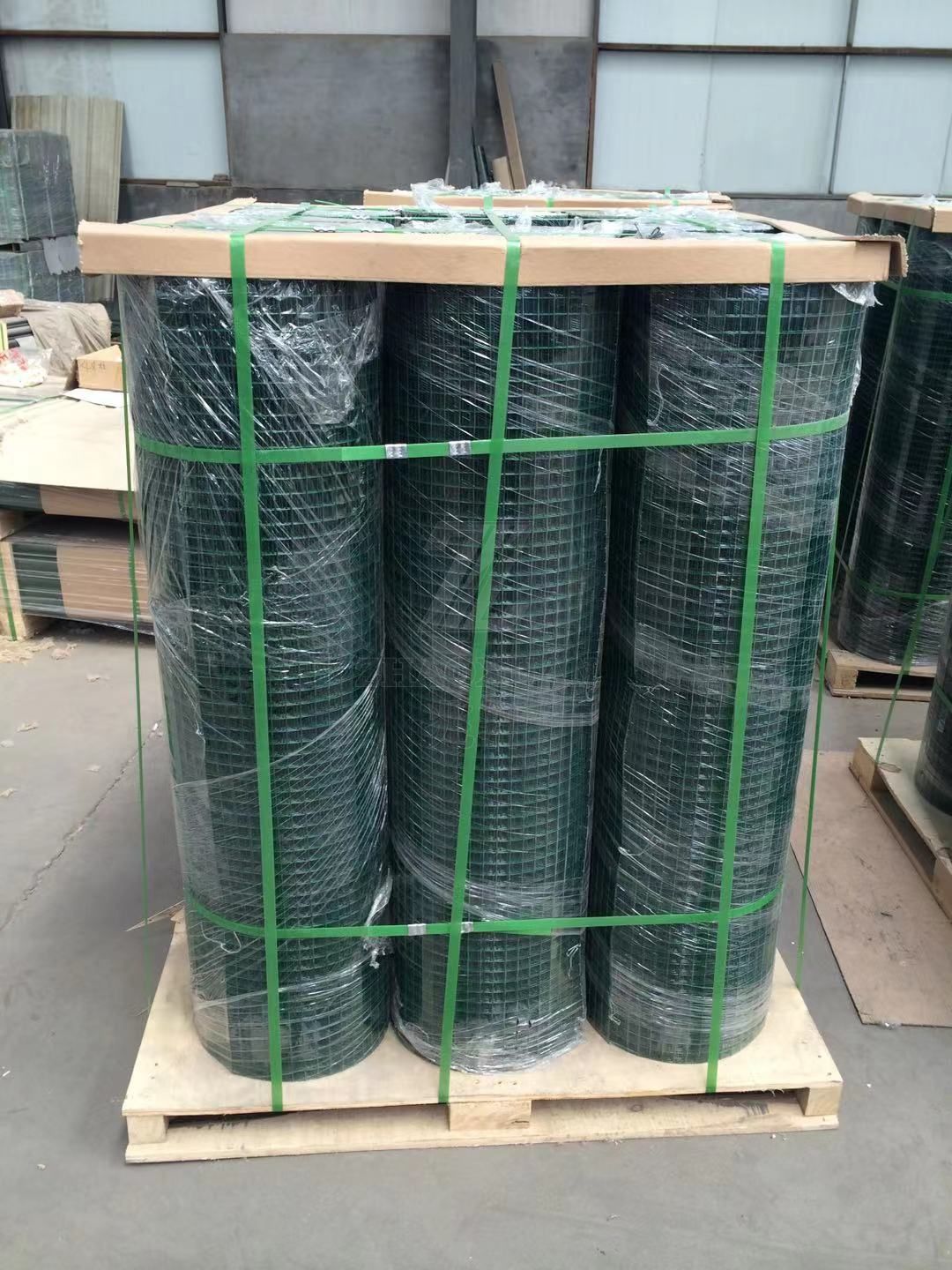

Package Type: Waterproof paper or plastic films with pallet.

Manufacturer:Anping County, Hebei Province, China

HEBEI ZHONG LAN CERTIFICATION CO.LTD

Inquire Now Next Product

Product Description

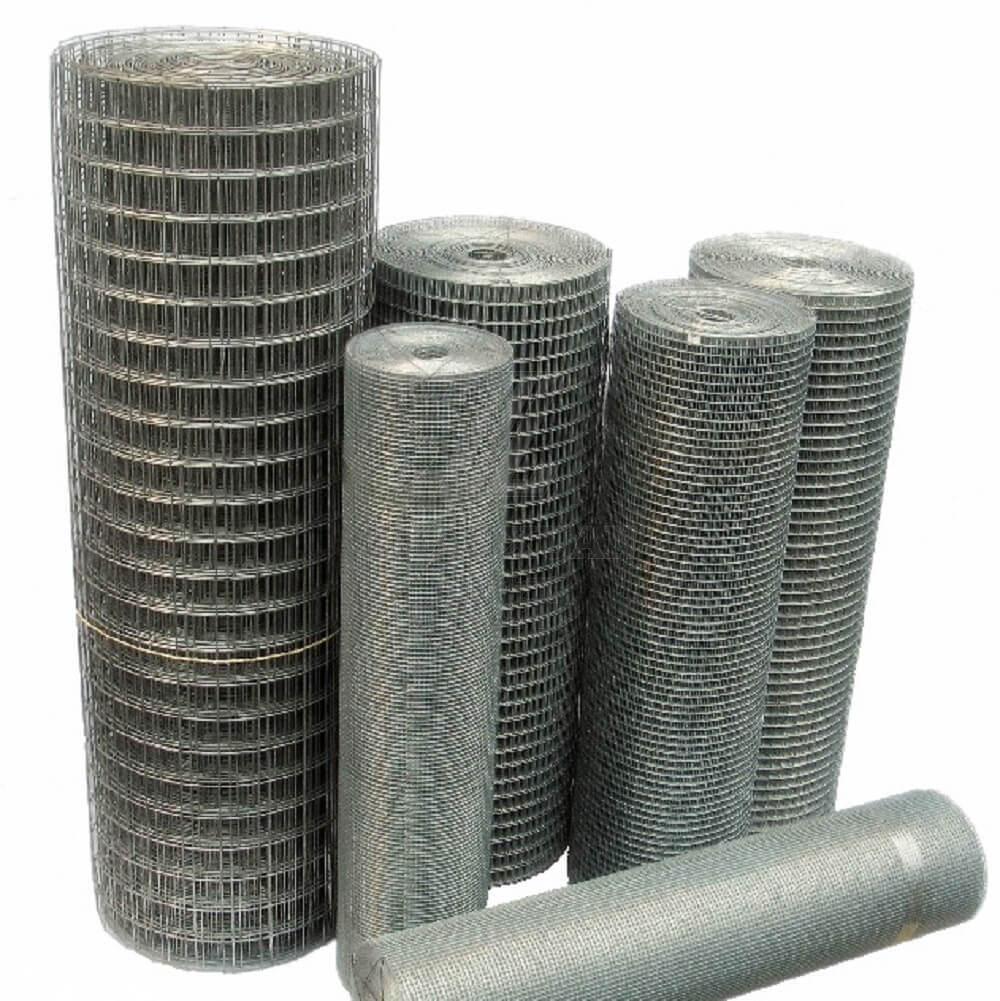

It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating.The finished Welded Wire Mesh offer flat and uniform surface, firm structure, good integrity. The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.

Specification List of Welded Wire Mesh Opening Wire Diameter<BWG> In inch In metric unit(mm) 1/4"×1/4" 6.4mm x6.4mm 22,23,24 3/8"×3/8" 10.6mmx10.6mm 19,20,21,22 1/2"×1/2" 12.7mm x12.7mm 16,17,18.19,20,21,22.23 5/8"×5/8" 16mmx 16mm 18,19,20,21,
3/4"×3/4"	19.1mm x19.1mm		16,17,18,19,20,21
1"×1/2"	25.4mmx12.7mm		16,17,18,19,20,21
1-1/2"×1-1/2"	38mm x38mm		14,15,16,17,18,19
1"×2" 25.4mm ×50.8mm 14,15,16 2"×2" 50.8mm×50.8mm 12,13,14,15,16 Technical Note:(1)Standard roll length:30m;Width:0.5m 1.0m,1.2m,1.5m,1.8m.2.0m.2.5m (2)Special sizes available at request (3)Packing:in waterproof paper in rolls.The special packing is available by customers.
Galvanized Fencing Mesh
Opening				Wire Diameter<BWG>
In inch		In metric unit(mm)
2"×2"		50mmx50mm		2.5mm,2.0mm,1.65mm
2"×3"		50mmx75mm		2.5mm,2.0mm,1.65mm
3"×3"		75mmx75mm		2.67mm.2.41mm,2.11mm
2"×4"		50mmx 100mm		2.5mm,2.1mm,1.83mm,1.65mm
4"×4"		100mmx100mm		2.11mm,2.5mm,3.0mm
Technical Note: (1)Standard roll length:30m;Width:0.5m,1.0m,1.2m,1.5m,1.8m,2.0m,2.5m (2)Special sizes available at request. (3)Packing:in waterproof paper in rolls.The special packing is available by customers.

In inch	In metric unit	Wire Diameter	Roll Size
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22	Width :0.4-2 m Length:5-50 m
3/8" x 3/8"	10.6x 10.6mm	BWG22-19
1/2" x 1/2"	12.7 x 12.7mm	BWG23-16
5/8" x 5/8"	16x 16mm	BWG21-18
3/4" x 3/4"	19.1 x 19.1mm	BWG21-16
1" x 1/2"	25.4x 12.7mm	BWG21-16
1-1/2" x 1-1/2"	38 x 38mm	BWG19-14
1" x 2"	25.4 x 50.8mm	BWG16-14
2" x 2"	50.8 x 50.8mm	BWG15-12
2” x 4"	50.8 x 101.6mm	BWG15-12
4” x 4"	101.6 x 101.6mm	BWG15-12
4” x 6"	101.6 x 152.4mm	BWG15-12
6” x 6"	152.4 x 152.4mm	BWG15-12
6” x 8"	152.4 x 203.2mm	BWG14-12

1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.

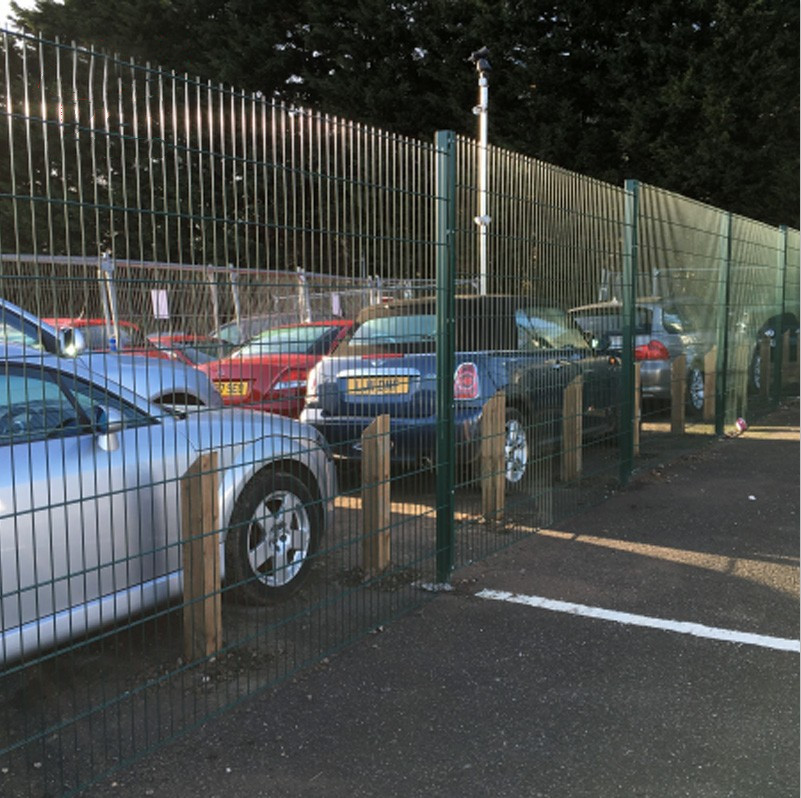

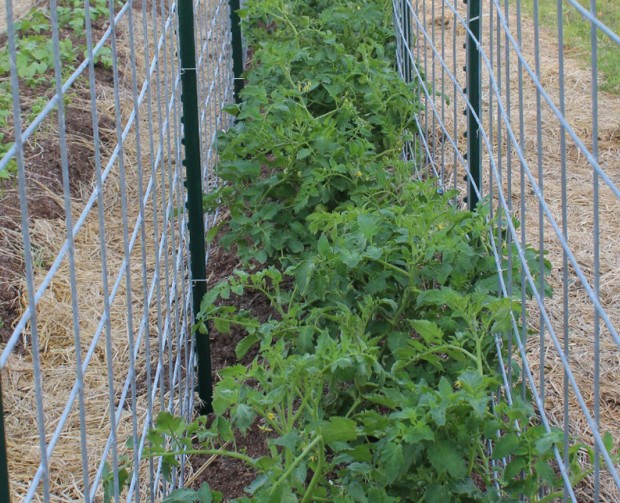

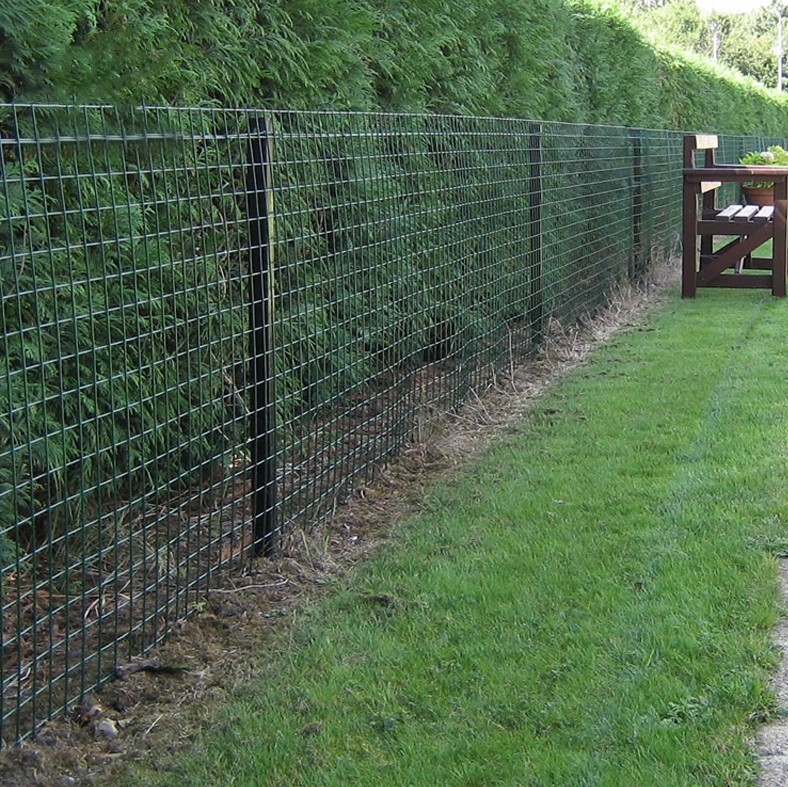

Application
