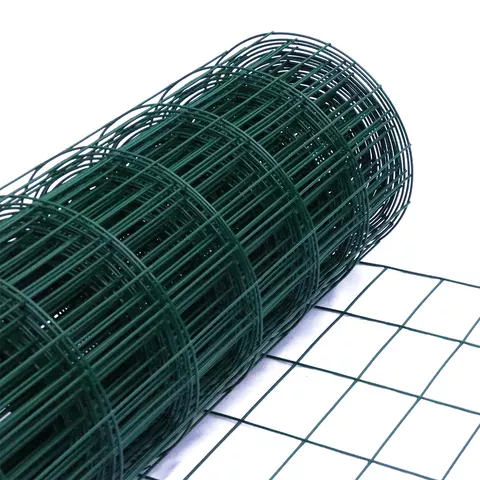

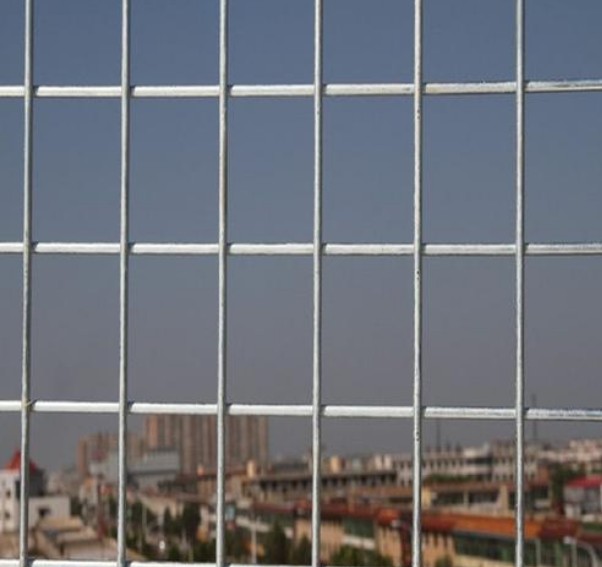

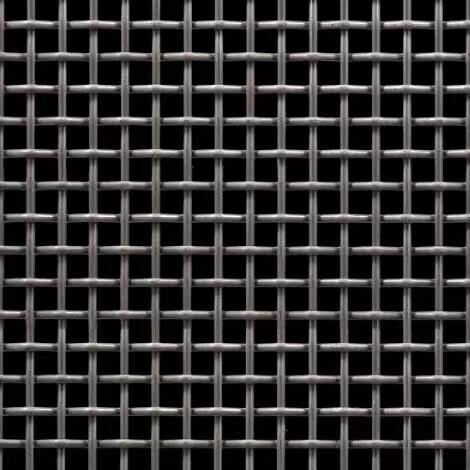

Plain welded Wire Mesh

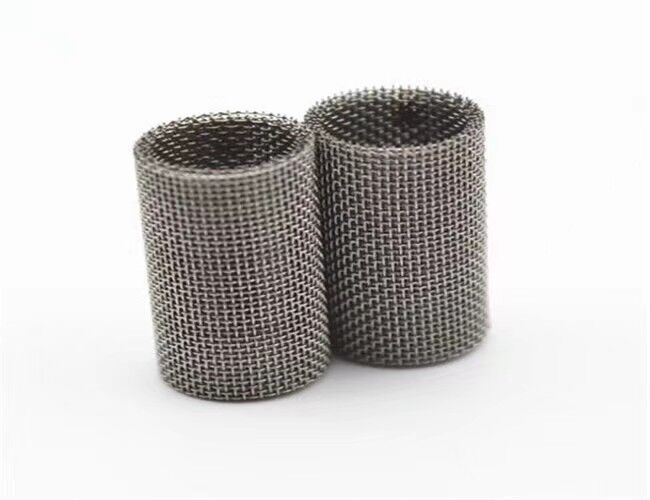

Plain wire mesh is primarily used as industrial filters in the application of filters, strainers, baskets, sieves and separator. Wire meshes are available in the below materials.

Wire Mesh are readily available in the form of rolls, cut piece, round discs and can also be customized as per requirement. Plain weave, Twilled weave, Plain Dutch Weave & Twilled Dutch Weave are the different types of weave.

Manufacturer:Anping County, Hebei Province, China

HEBEI ZHONG LAN CERTIFICATION CO.LTD

Inquire Now Next Product

Product Description

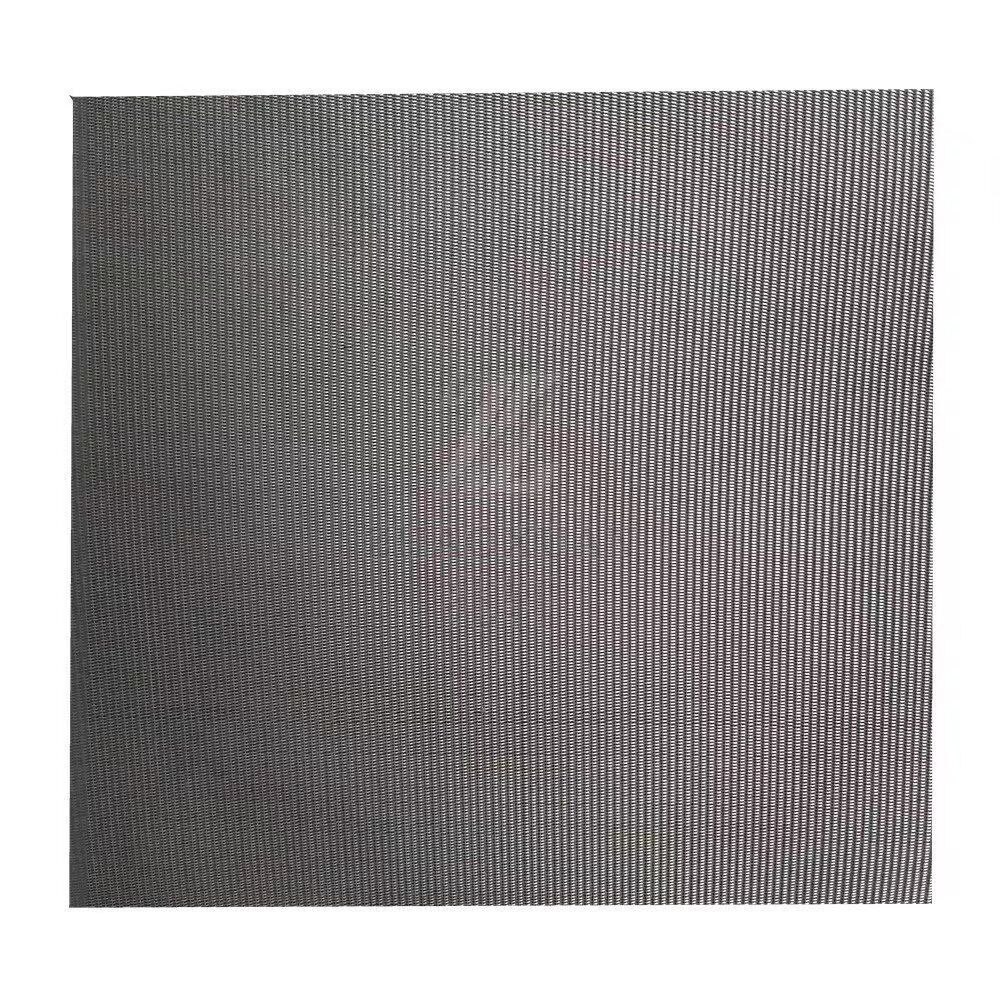

Ginning knitted mesh is a type of knitted mesh, which has ginning on the surface. When the knitted mesh is produced completely, the knitted mesh is ginned by special technology to form a variety of corrugated shapes.

product name	stainless steel crimped wire mesh
material	manganese steel,stainless steel 302/304/316/310s
weave	First rolled and then braided, bidirectional bending, bidirectional wave isolation bending, unidirectional bending.
advantage	Heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide solid structure.
Specification	Mesh 1-24 mesh, wire diameter 40-800, width 1-6 m.

Specification List of Welded Wire Mesh Opening Wire Diameter<BWG> In inch In metric unit(mm) 1/4"×1/4" 6.4mm x6.4mm 22,23,24 3/8"×3/8" 10.6mmx10.6mm 19,20,21,22 1/2"×1/2" 12.7mm x12.7mm 16,17,18.19,20,21,22.23 5/8"×5/8" 16mmx 16mm 18,19,20,21,
3/4"×3/4"	19.1mm x19.1mm		16,17,18,19,20,21
1"×1/2"	25.4mmx12.7mm		16,17,18,19,20,21
1-1/2"×1-1/2"	38mm x38mm		14,15,16,17,18,19
1"×2" 25.4mm ×50.8mm 14,15,16 2"×2" 50.8mm×50.8mm 12,13,14,15,16 Technical Note:(1)Standard roll length:30m;Width:0.5m 1.0m,1.2m,1.5m,1.8m.2.0m.2.5m (2)Special sizes available at request (3)Packing:in waterproof paper in rolls.The special packing is available by customers.

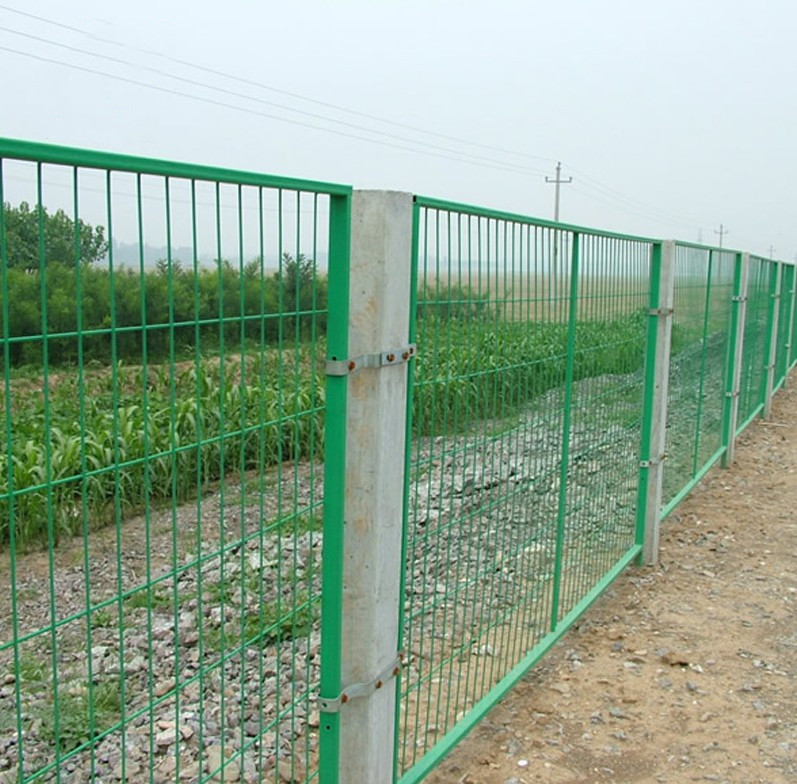

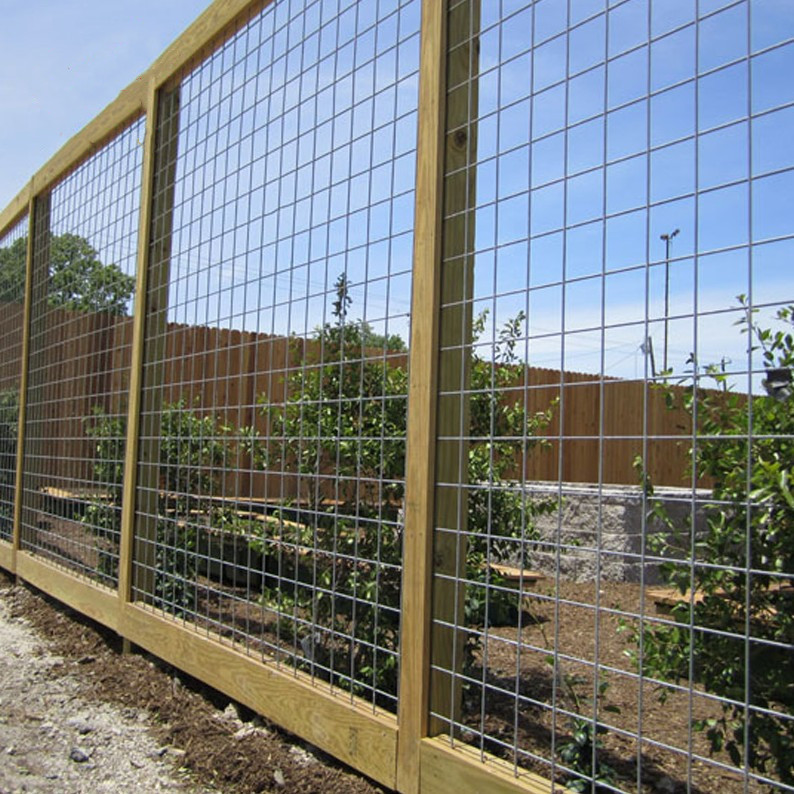

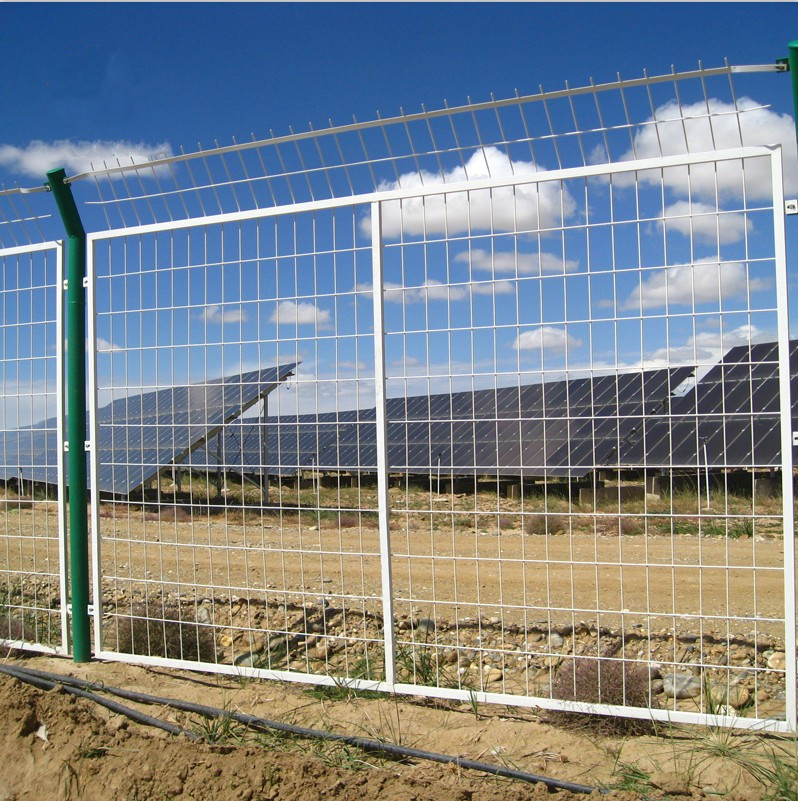

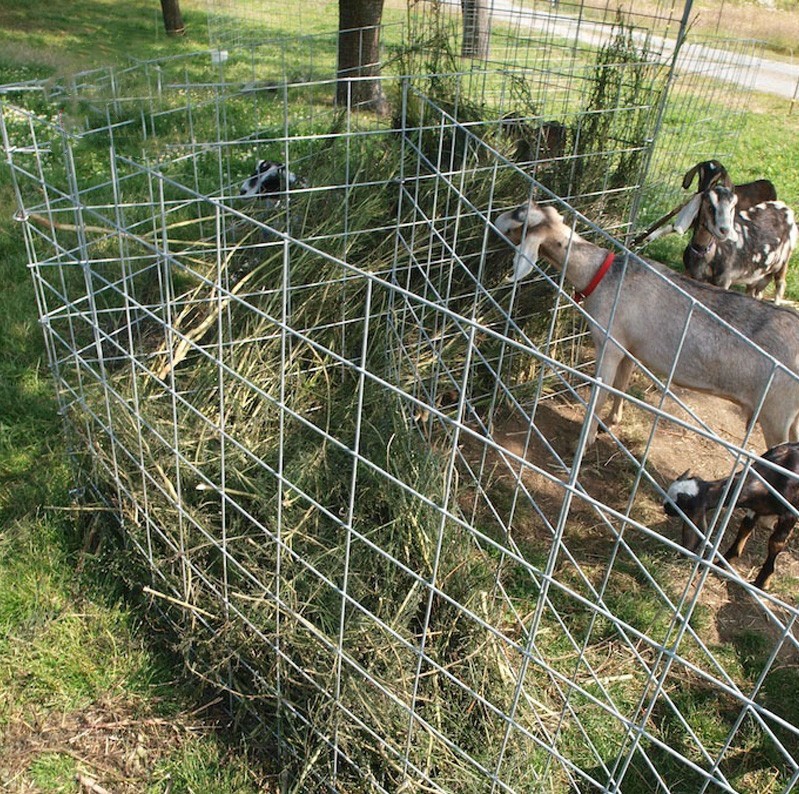

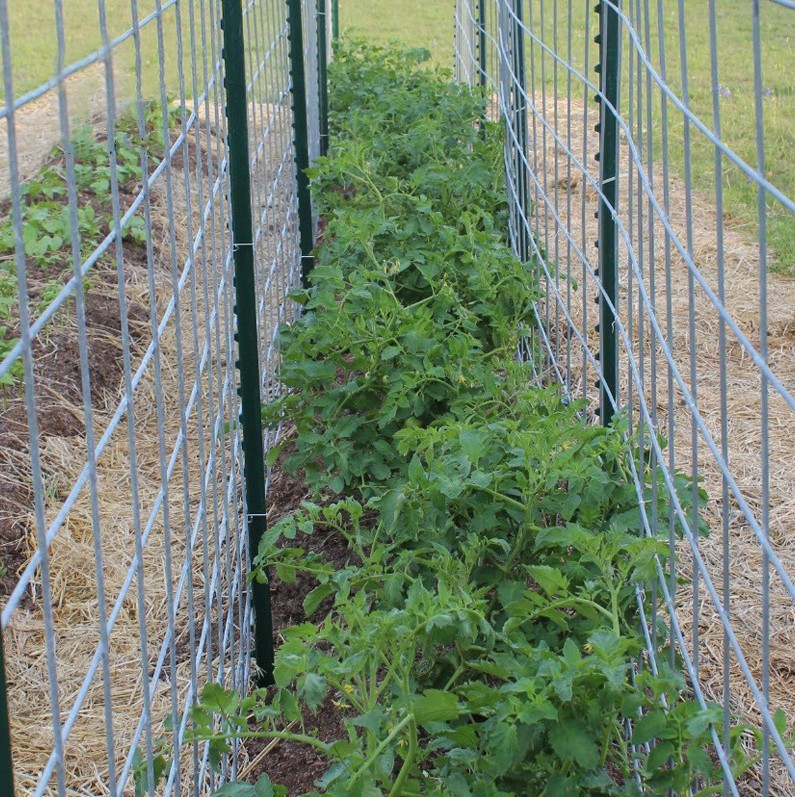

Galvanized Fencing Mesh
Opening				Wire Diameter<BWG>
In inch		In metric unit(mm)
2"×2"		50mmx50mm		2.5mm,2.0mm,1.65mm
2"×3"		50mmx75mm		2.5mm,2.0mm,1.65mm
3"×3"		75mmx75mm		2.67mm.2.41mm,2.11mm
2"×4"		50mmx 100mm		2.5mm,2.1mm,1.83mm,1.65mm
4"×4"		100mmx100mm		2.11mm,2.5mm,3.0mm
Technical Note: (1)Standard roll length:30m;Width:0.5m,1.0m,1.2m,1.5m,1.8m,2.0m,2.5m (2)Special sizes available at request. (3)Packing:in waterproof paper in rolls.The special packing is available by customers.

1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.

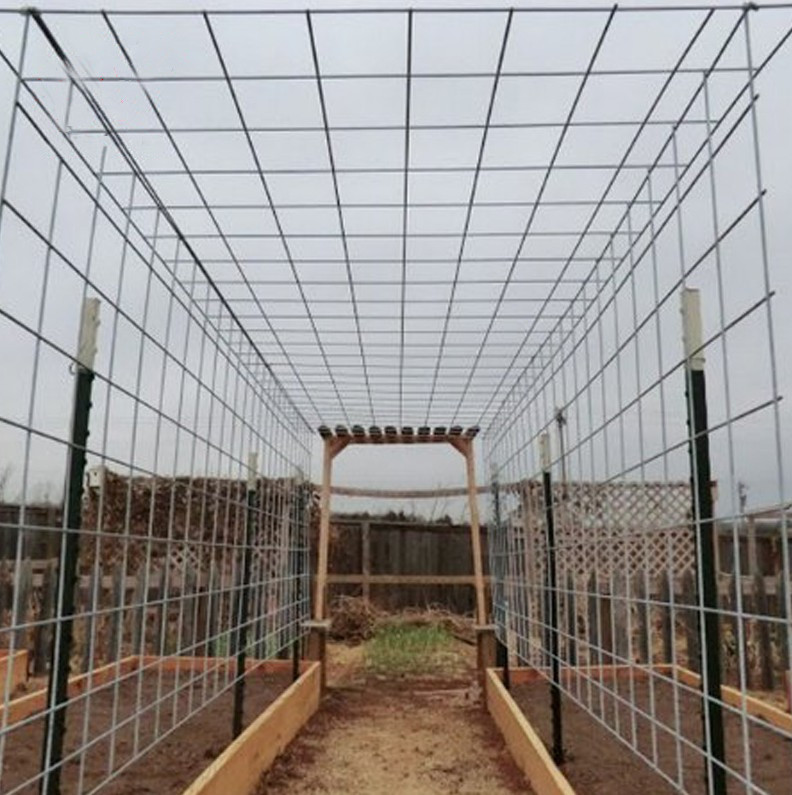

Application

Plain welded Wire Mesh
