Hot sale Razor barbed wire

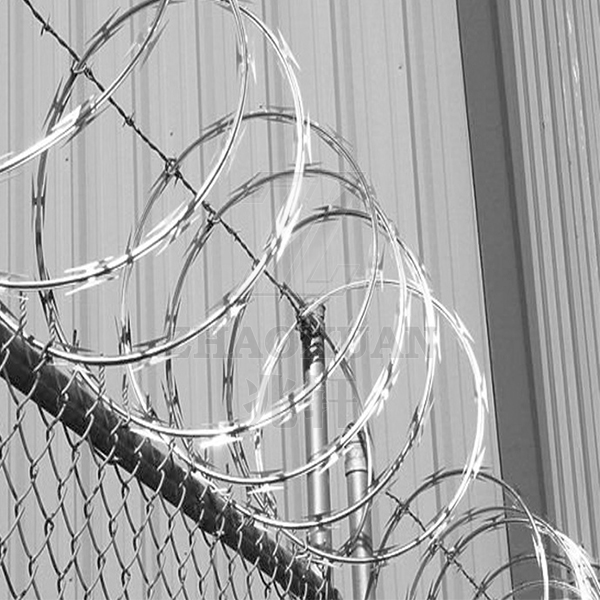

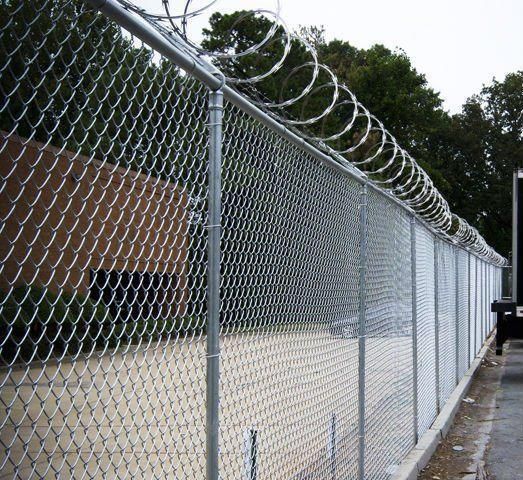

Razor wire is a new and popular defence product all over the world, normally used together with barbed wire above chain link fence,

Manufacturer:Anping County, Hebei Province, China

HEBEI ZHONG LAN CERTIFICATION CO.LTD

Inquire Now Next Product

Product Description

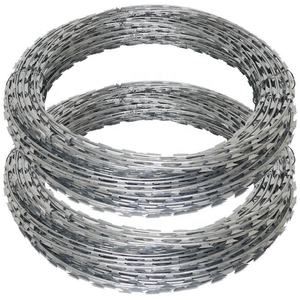

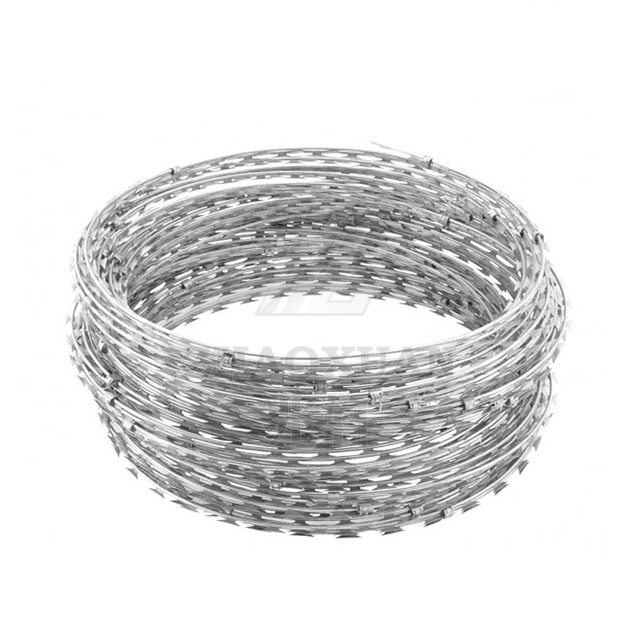

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Standard production type(标准生产形式)
外径 Outside diameter	圈数 No.of loops		标准覆盖长度 Standard length per coil		生产形式 Type	备注 Notes
450mm	33		7-8m		CBT-60.65	Single coil
500mm	56		12-13m		CBT-60.65	Single coil
700mm	56		13-14m		CBT-60.65	Single coil
960mm	56		14-15m		CBT-60.65	Single coil
450mm	56		8-9m		BTO-12.22.25.30	Cross type
500mm	56		9-10m		BTO-12.22.25.30	Cross type
600mm	56		10-11m		BTO-12.22.25.30	Cross type
600mm	56		8-10m		BTO-12.22.25.30	Cross type
700mm	56		10-12m		BTO-12.22.25.30	Cross type
800mm	56		11-13m		BTO-12.22.25.30	Cross type
900mm	56		12-14m		BTO-12.22.25.30	Cross type
960mm	56		13-15m		BTO-12.22.25.30	Cross type
980mm	56		14-16m		BTO-12.22.25.30	Cross type
Galvanized Fencing Mesh
Opening				Wire Diameter<BWG>
In inch		In metric unit(mm)
2"×2"		50mmx50mm		2.5mm,2.0mm,1.65mm
2"×3"		50mmx75mm		2.5mm,2.0mm,1.65mm
3"×3"		75mmx75mm		2.67mm.2.41mm,2.11mm
2"×4"		50mmx 100mm		2.5mm,2.1mm,1.83mm,1.65mm
4"×4"		100mmx100mm		2.11mm,2.5mm,3.0mm
Technical Note: (1)Standard roll length:30m;Width:0.5m,1.0m,1.2m,1.5m,1.8m,2.0m,2.5m (2)Special sizes available at request. (3)Packing:in waterproof paper in rolls.The special packing is available by customers.

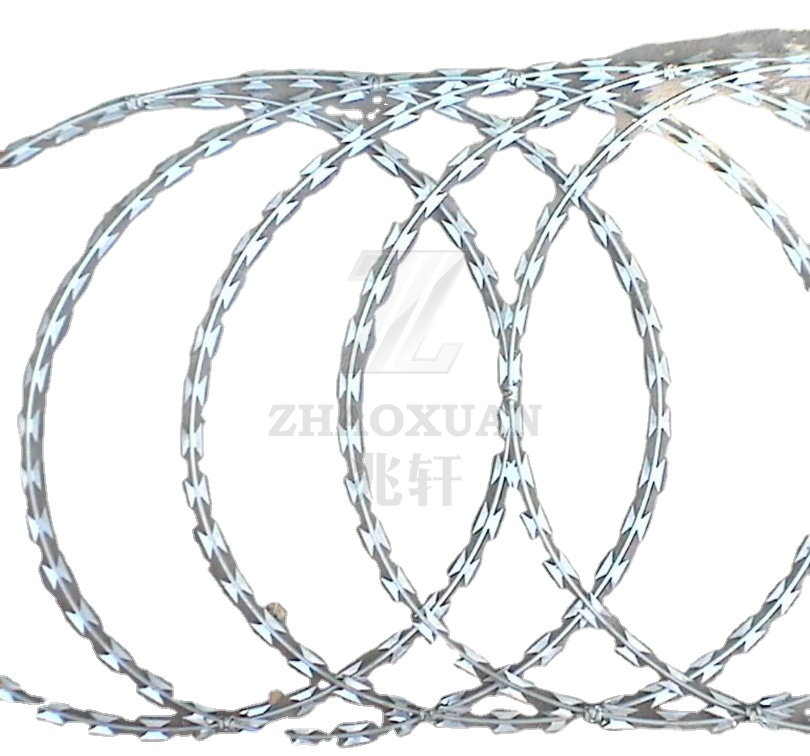

Concertina Razor wire specification

Outer diameter	No. of loops	Standard covering length	Blade type
450mm	56	8-9M (3 clips)	BTO-10.12.18.22.28.30
500mm	56	9-10M (3 clips)	BTO-10.12.18.22.28.30
600mm	56	10-11M (3 clips)	BTO-10.12.18.22.28.30
600mm	56	8-10M (5 clips)	BTO-10.12.18.22.28.30
700mm	56	10-12M (5 clips)	BTO-10.12.18.22.28.30
800mm	56	11-13M (5 clips)	BTO-10.12.18.22.28.30
900mm	56	12-14M (5 clips)	BTO-10.12.18.22.28.30

Single concertina razor coils

Outer diameter	No.of loops	Standard covering length	Blade type
450mm	33	7-8m	CBT-60 CBT-65
500mm	56	12-13m	CBT-60 CBT-65
700mm	56	13-14m	CBT-60 CBT-65
960mm	56	14-15m	CBT-60 CBT-65

1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.

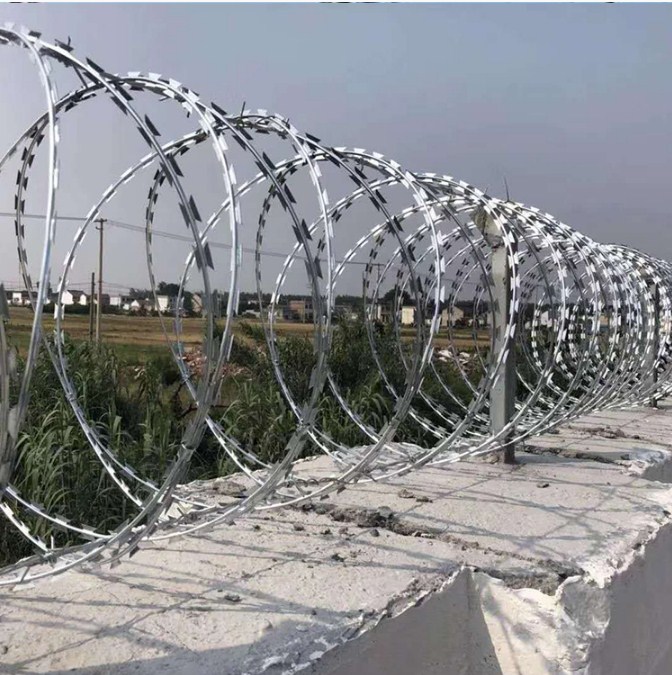

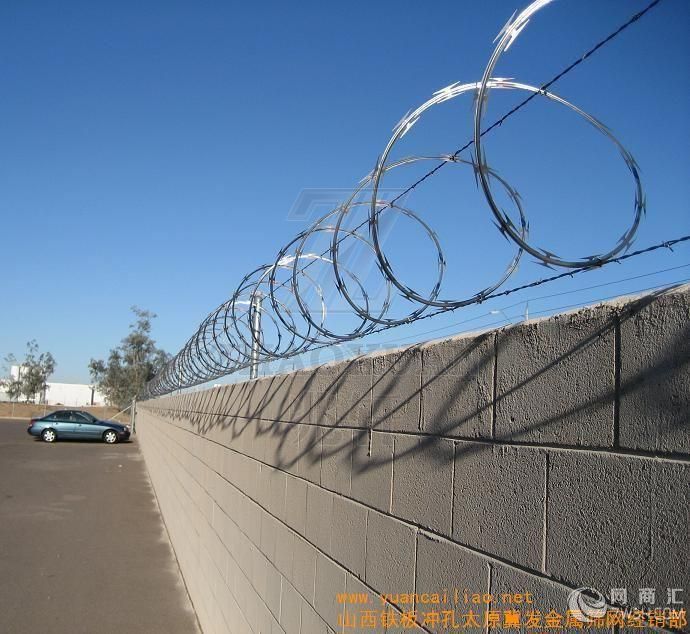

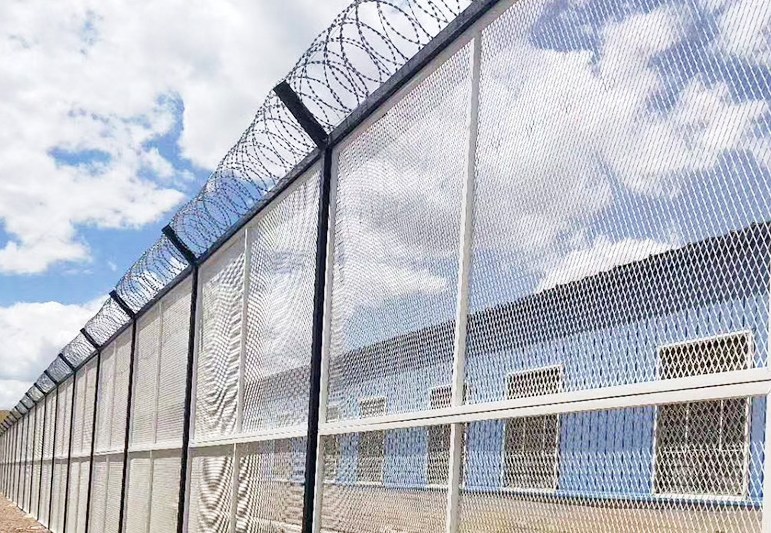

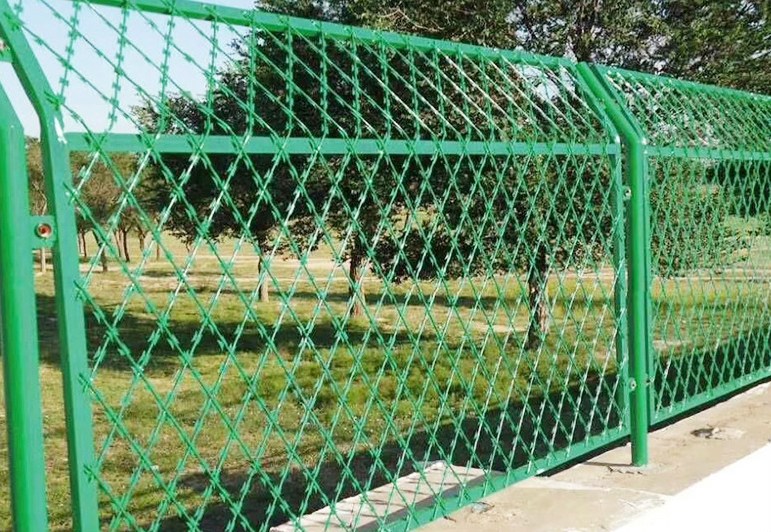

Application
