Product Description

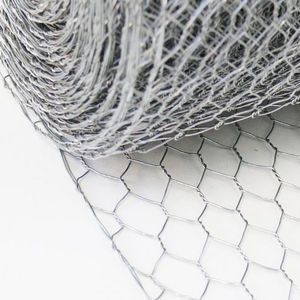

Hexagonal wire mesh with high quanlity
1)Wire Materials for Hexagonal Wire Netting:
High quality low carbon steel wire, stainless steel wire, etc.
2)Weaving Patterns:
Straight twist, reverse twist, double twist.
3)Process of Hexagonal Wire Netting:
Galvanized after weaving or galvanized before weaving.
4)Finish of Hexagonal Wire Netting:
Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.
Galvanized hexagonal wire mesh | ||||||
Specifications | Wire Diameter | Width | ||||
Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | BS | Metric |
3/8” | 10 | +0.5 | BWG27-23 | 0.40-0.6mm | 1”-6” | 0.1-2m |
1/2” | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1”-6” | 0.1-2m |
5/8” | 16 | +1.0/-2.0 | BWG27-22 | 0.4-0.7mm | 1”-6” | 0.1-2m |
3/4” | 20 | +1.0/-2.5 | BWG26-20 | 0.46-0.9mm | 1”-6” | 0.1-2m |
1” | 25 | +1.5 | BWG25-19 | 0.5-1.0mm | 1”-6” | 0.1-2m |
1-1/4” | 31 | -3.0 | BWG24-18 | 0.56-1.2mm | 1”-6” | 0.2-2m |
1-1/2” | 40 | +2.0/-4.0 | BWG23-16 | 0.6-1.65mm | 1”-6” | 0.2-2m |
2” | 51 | +2.0/-4.0 | BWG22-14 | 0.7-2.0mm | 1”-6” | 0.2-2m |
3” | 76 | +2.0/-4.0 | BWG21-14 | 0.8-2.0mm | 1”-6” | 0.3-2m |
4” | 100 | +2.0/-4.0 | BWG20-12 | 0.9-2.8mm | 1”-6” | 0.5-2m |
Application
Hexagonal wire mesh has been widely used in industry,construction,cultivation and etc.Such as wrapping pipeline,insulating,boiler,protecting residence,defending gardens,fencing for chicken,duck,rabbit or other animals.
