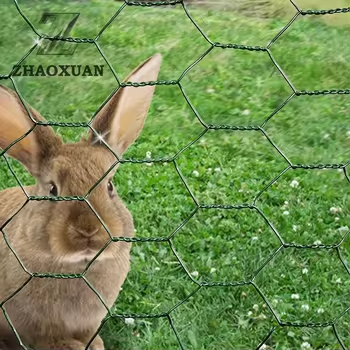

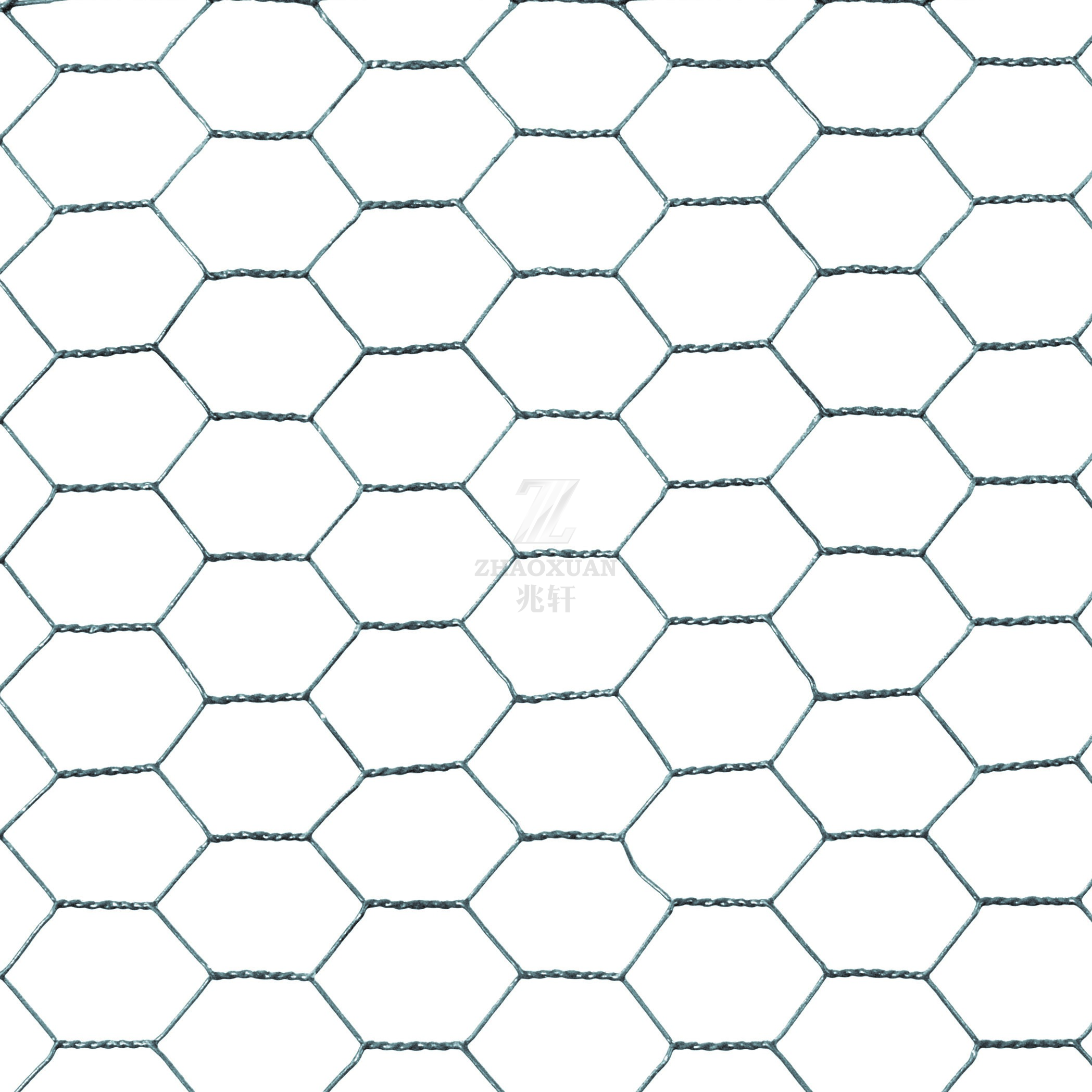

Hexagonal Chicken Wire Mesh

– Lightweight Fencing Solution

Base Material: High-quality carbon steel wire

Fabrication Method: Precision machine-twisted hexagonal weave

Surface Treatment Options:

✔ Electro-galvanized (standard corrosion resistance)

✔ Hot-dip galvanized (enhanced durability)

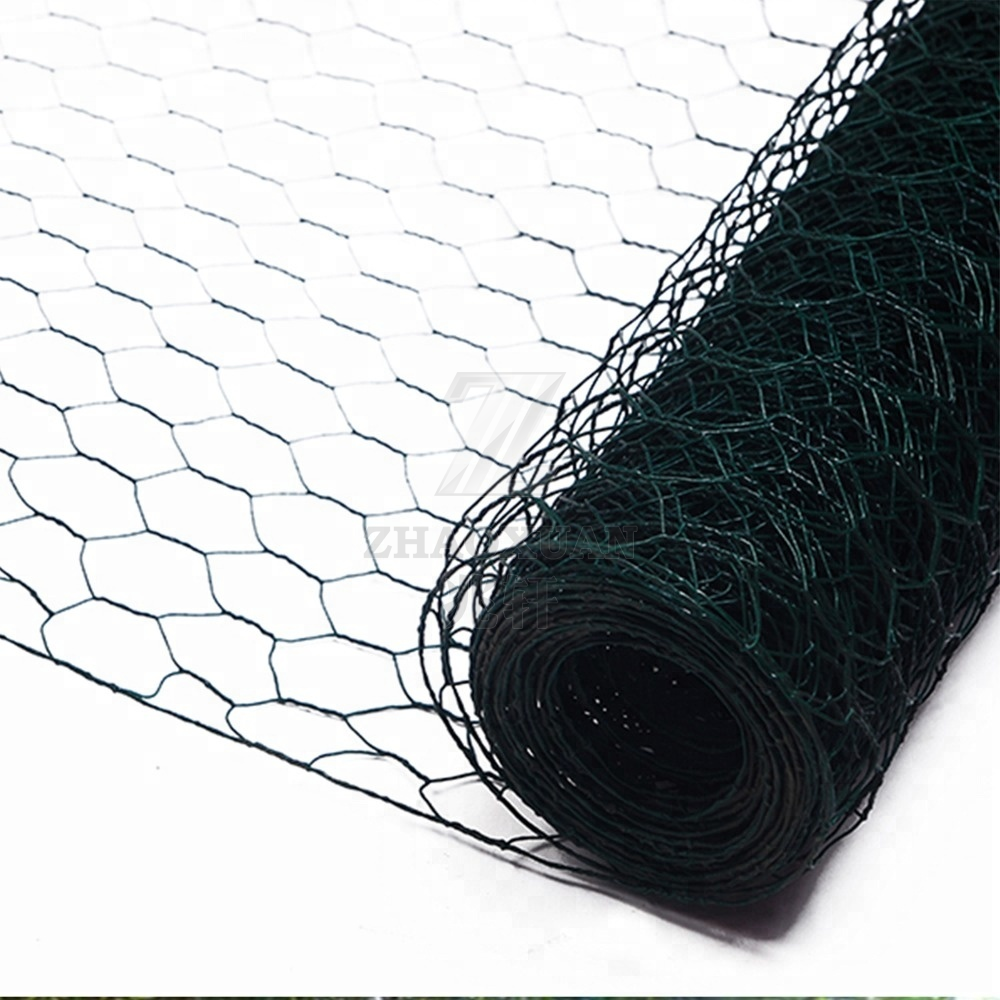

✔ PVC/PE coated (color options + extra protection)

Inquire Now Next Product

Product Description

Basic Information

✔ Material: Low-carbon iron wire (standard) with optional galvanized or PVC coating

✔ Structure: Firm hexagonal weave with flat, snag-free surface

✔ Durability: Corrosion-resistant for long-term outdoor use

✔ Flexibility: Easy to cut and shape for custom installations

Features

✔ Optimal Airflow Design: Hexagonal openings ensure superior ventilation

✔ Structural Integrity: Twisted wire joints prevent unraveling

✔ Multi-Environment Durability: Withstands weather, UV exposure, and moisture

Common Specifications

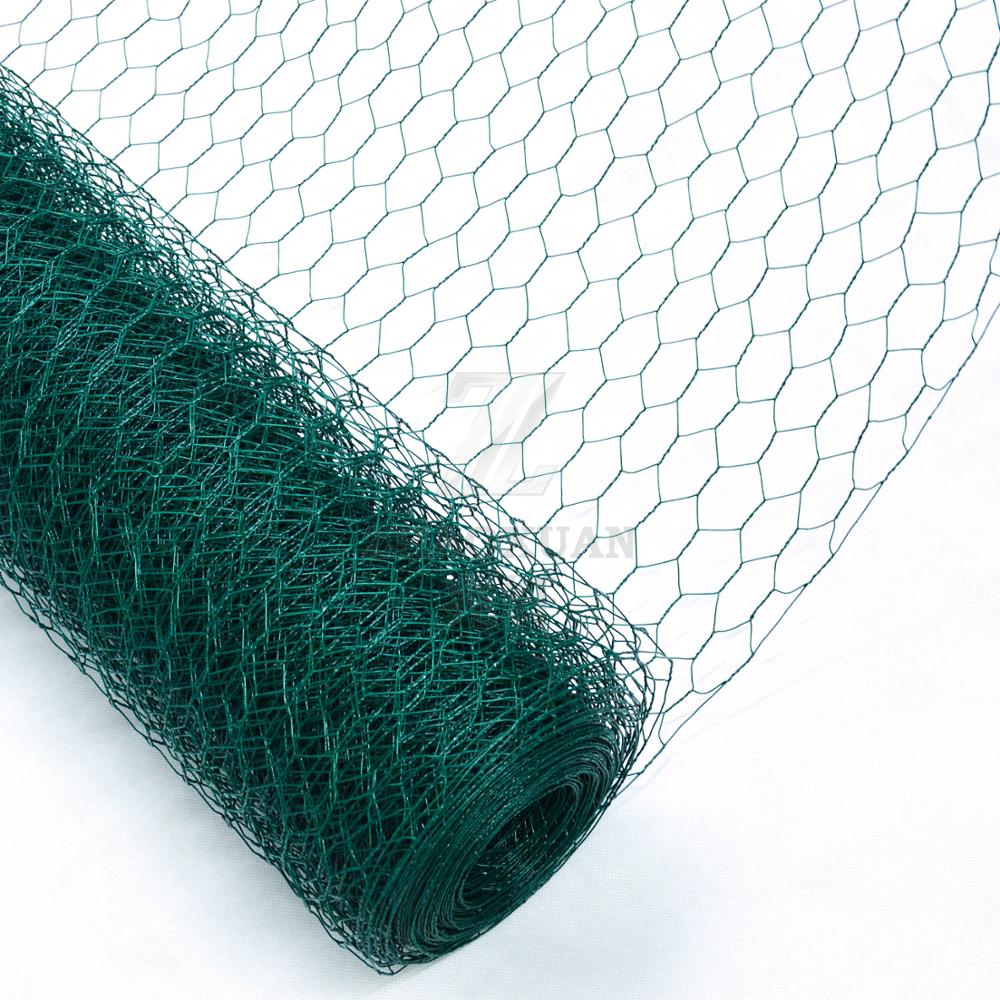

Specifications	PVC Coated Hex. Wire Netting
	Mesh			Wire Gauge (mm)		Width
	Inch		mm	-		-
	1/2"		13	0.6-1.0		2'-2m
	3/4"		19	0.6-1.0		2'-2m
	1"		25	0.7-1.3		1'-2m
	1-1/4"		30	0.85-1.3		1'-2m
	1-1/2"		40	0.85-1.4		1'-2m
	2"		50	1.0-1.4		1'-2m
	Note: 1. The thickness of PVC coating is usually 0.2-0.4mm, others may be arranged as per buyers' requests; 2. Package: Normally each roll packed in water proof paper, then in termo foil (shrinked plastic)
	Galvanized Hex. Wire Netting
	Mesh			Min. Gal.v. (g/sq.m)	Width	Wire Gauge (Diameter) BWG
	Inch	mm	Tolerance (mm)
	3/8"	10	±1.0	145 for 0.7mm wire	2'-1m	27, 26, 25, 24, 23
	1/2"	13	±1.5	95 for 0.7mm wire	2'-2m	25, 24, 23, 22, 21
	5/8"	16	±2.0	70 for 0.7mm wire	2'-2m	27, 26, 25, 24, 23, 22
	3/4"	20	±3.0	55 for 0.7mm wire	2'-2m	25, 24, 23, 22, 21, 20, 19
	1"	25	±3.0	55 for 0.9mm wire	1'-2m	25, 24, 23, 22, 21, 20, 19, 18
	1-1/4"	31	±4.0	40 for 0.9mm wire	1'-2m	23, 22, 21, 20, 19, 18
	1-1/2"	40	±5.0	45 for 1.0mm wire	1'-2m	23, 22, 21, 20, 19, 18
	2"	50	±6.0	40 for 1.2mm wire	1'-2m	23, 22, 21, 20, 19, 18
	2-1/2"	65	±7.0	30 for 1.0mm wire	1'-2m	21, 20, 19, 18
	3"	75	±8.0	30 for 1.4mm wire	2'-2m	20, 19, 18, 17
	4"	100	±8.0	30 for 1.6mm wire	2'-2m	19, 18, 17, 16
	Note: 1. The above tolerance comply wit standard EN10223-2:1997; 2. Minimum galvanization is only for typical wire diameter as stipulated separately in the column for your reference; also it is only for hot dipped galvanized netting.
