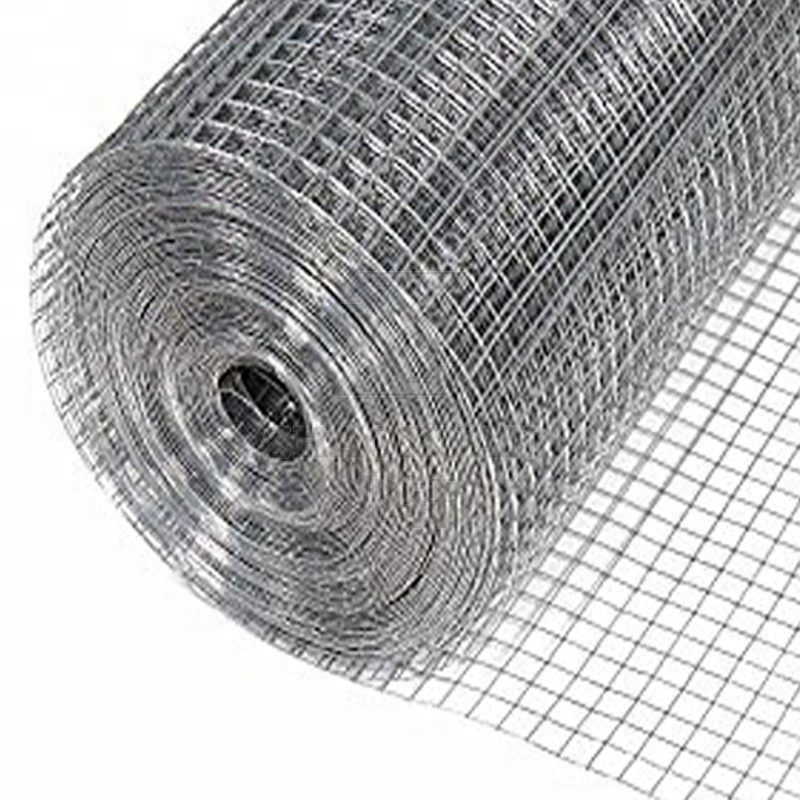

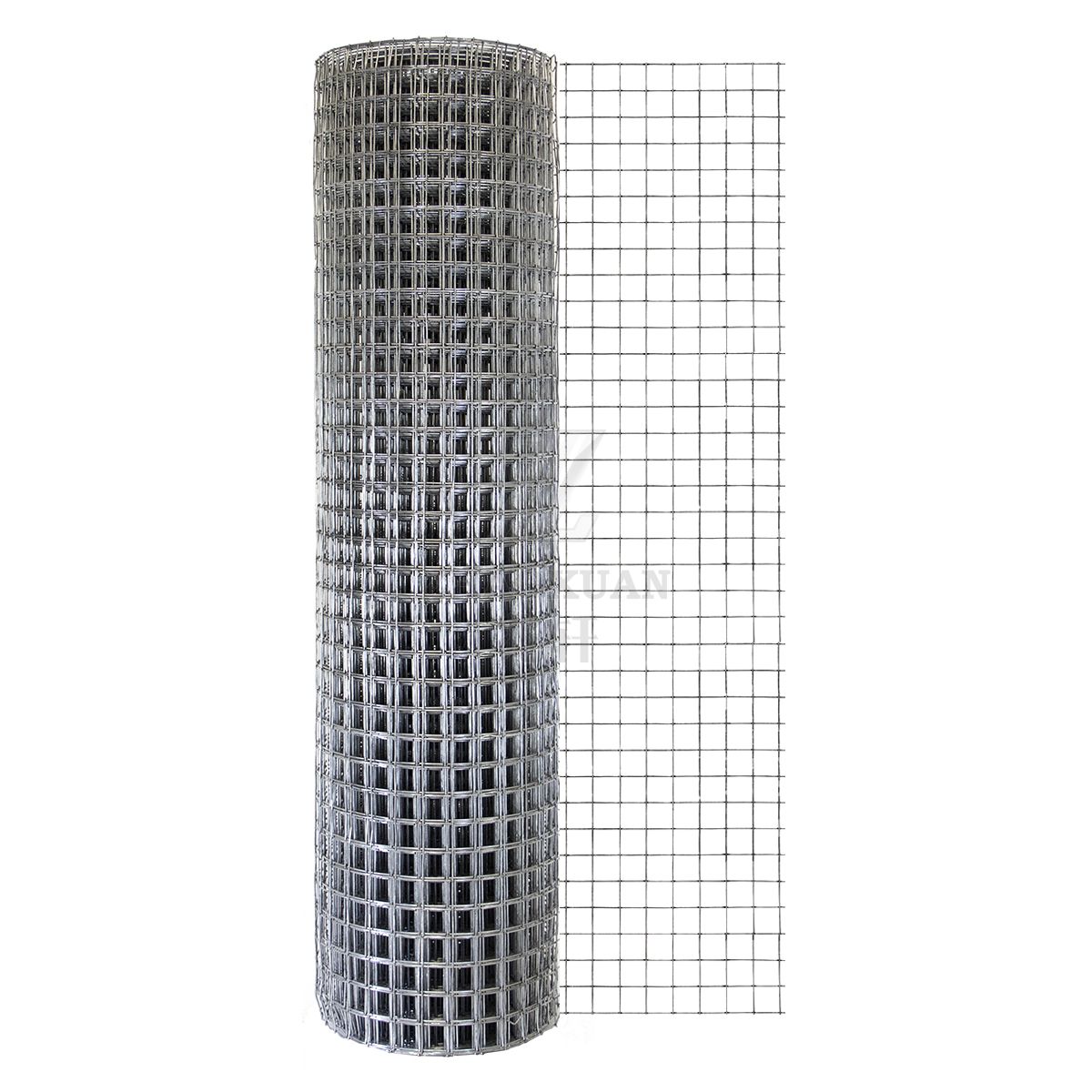

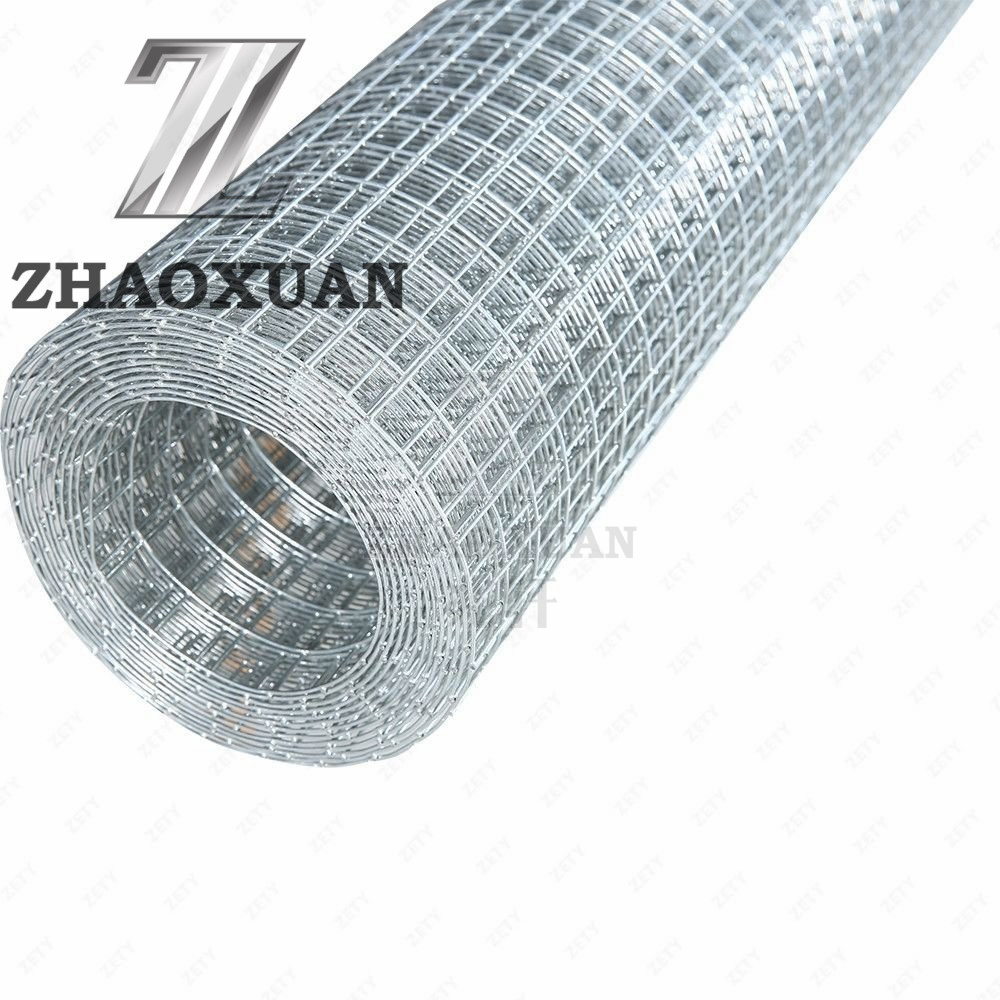

1-1/2"x1-1/2"Galvanized Welded Wire Mesh

Material： Hot dipped galvanized Iron wire

Surface Treatment： hot dipped galvanized after welding

Wire diameter: 0.5mm-3.0mm

Mesh size(mm): 1-1/2"*1-1/2"

Width: 0.5m-2.5m

Lenght: 10m-30m

Application： Widely used in industries such as industry, agriculture, construction, transportation, mining, etc.

Package Type: Waterproof paper or plastic films with pallet.

Manufacturer:Anping County, Hebei Province, China

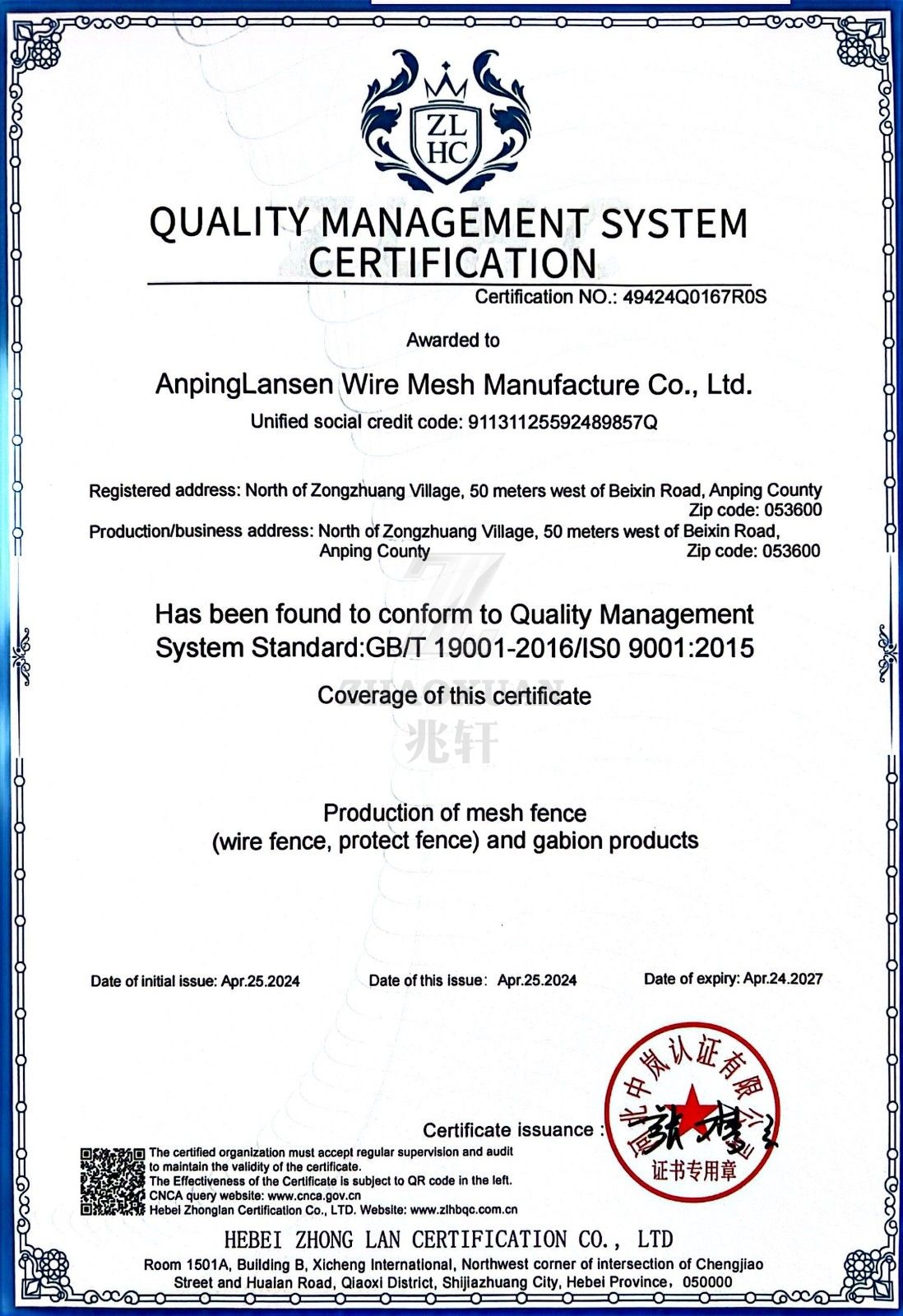

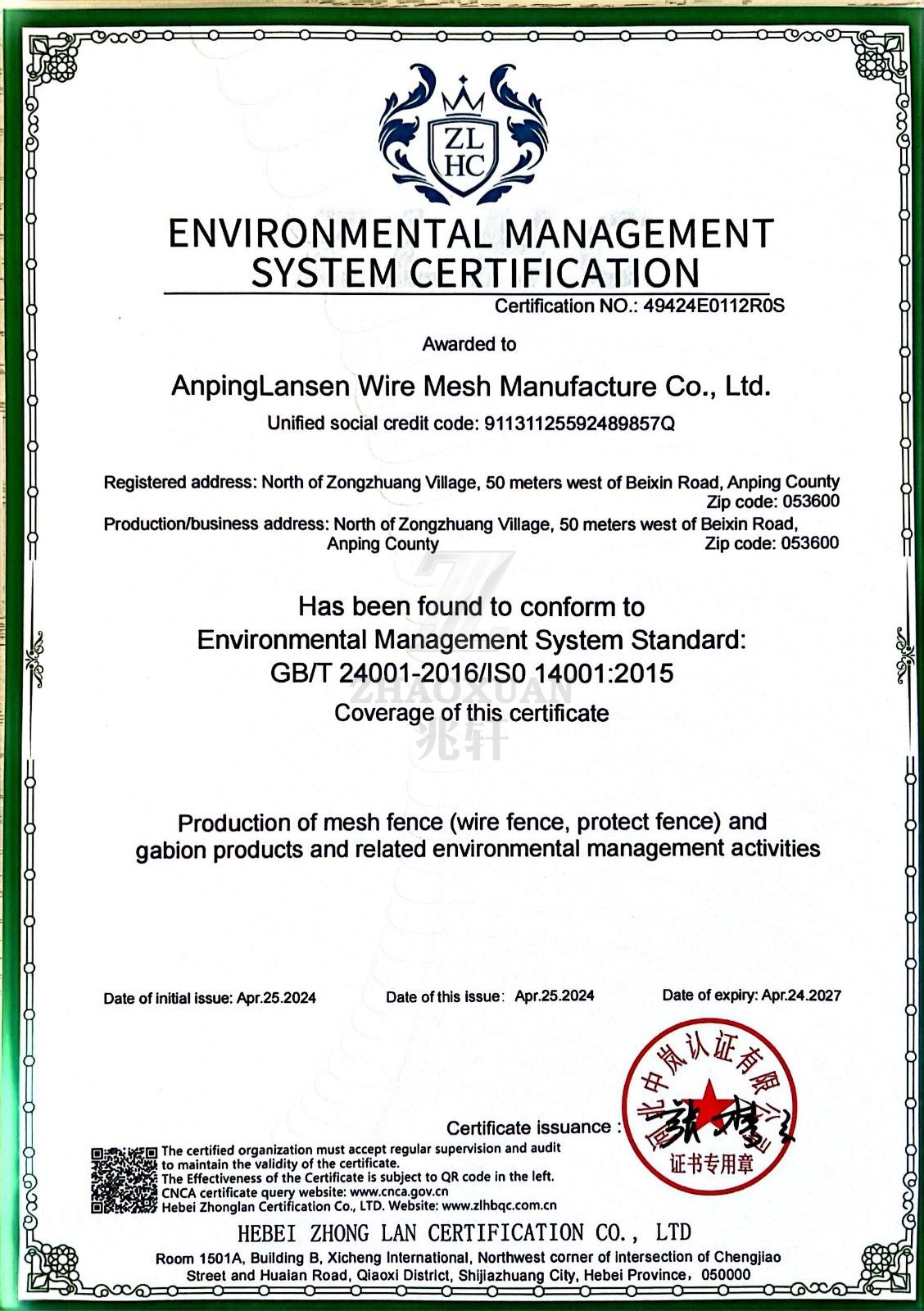

HEBEI ZHONG LAN CERTIFICATION CO.LTD

Inquire Now Next Product

Product Description

Welded wire mesh is made of high quality low carbon steel wire,stainless steel wire.welded wire mesh divides into hot dipped galvanized and electro galvanized.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment .The products have smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of strong antioxidant, and other anti-corrosion characteristics.

Specification List of Welded Wire Mesh Opening Wire Diameter<BWG> In inch In metric unit(mm) 1/4"×1/4" 6.4mm x6.4mm 22,23,24 3/8"×3/8" 10.6mmx10.6mm 19,20,21,22 1/2"×1/2" 12.7mm x12.7mm 16,17,18.19,20,21,22.23 5/8"×5/8" 16mmx 16mm 18,19,20,21,
3/4"×3/4"	19.1mm x19.1mm		16,17,18,19,20,21
1"×1/2"	25.4mmx12.7mm		16,17,18,19,20,21
1-1/2"×1-1/2"	38mm x38mm		14,15,16,17,18,19
1"×2" 25.4mm ×50.8mm 14,15,16 2"×2" 50.8mm×50.8mm 12,13,14,15,16 Technical Note:(1)Standard roll length:30m;Width:0.5m 1.0m,1.2m,1.5m,1.8m.2.0m.2.5m (2)Special sizes available at request (3)Packing:in waterproof paper in rolls.The special packing is available by customers.
Galvanized Fencing Mesh
Opening				Wire Diameter<BWG>
In inch		In metric unit(mm)
2"×2"		50mmx50mm		2.5mm,2.0mm,1.65mm
2"×3"		50mmx75mm		2.5mm,2.0mm,1.65mm
3"×3"		75mmx75mm		2.67mm.2.41mm,2.11mm
2"×4"		50mmx 100mm		2.5mm,2.1mm,1.83mm,1.65mm
4"×4"		100mmx100mm		2.11mm,2.5mm,3.0mm
Technical Note: (1)Standard roll length:30m;Width:0.5m,1.0m,1.2m,1.5m,1.8m,2.0m,2.5m (2)Special sizes available at request. (3)Packing:in waterproof paper in rolls.The special packing is available by customers.

<td colspan=

In inch	In metric unit	Wire Diameter	Roll Size
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22	Width :0.4-2 m Length:5-50 m
3/8" x 3/8"	10.6x 10.6mm	BWG22-19	Width :0.4-2 m Length:5-50 m

1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.

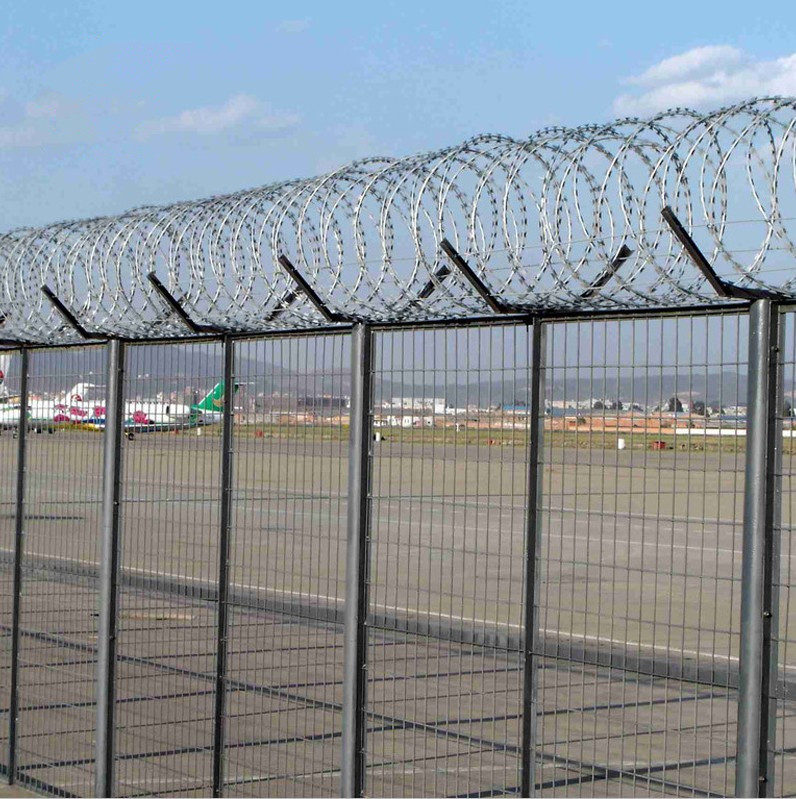

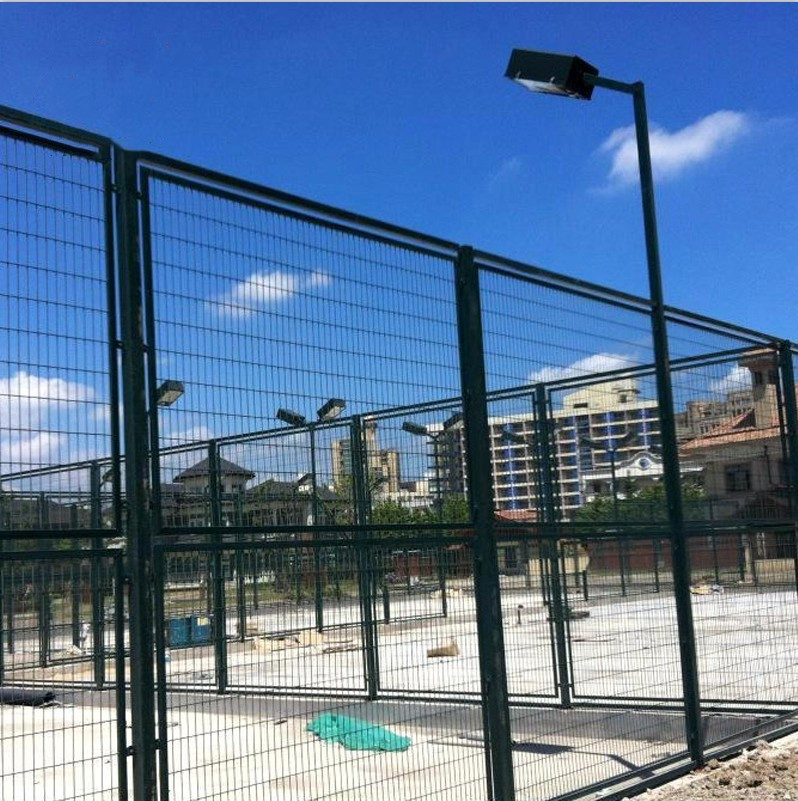

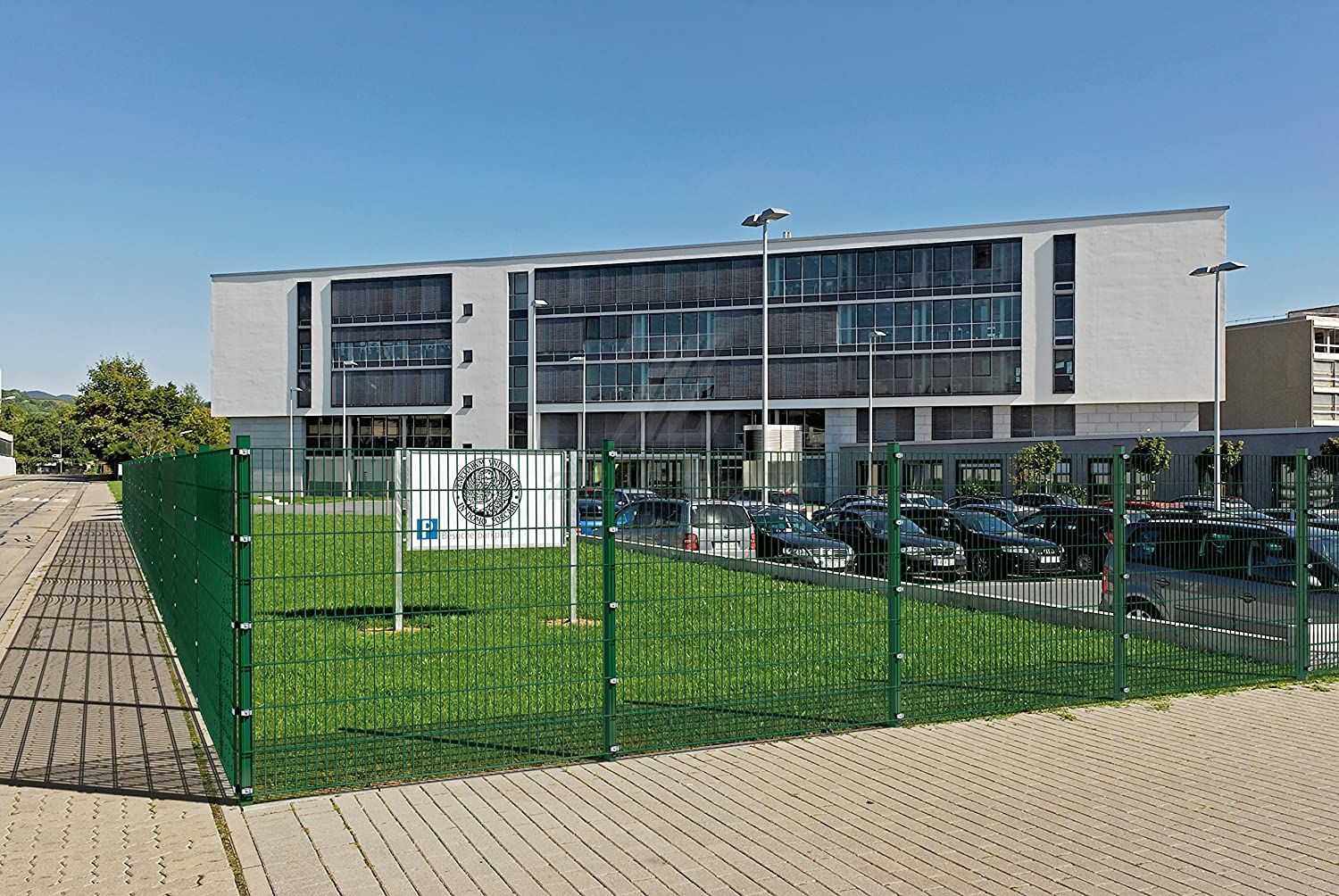

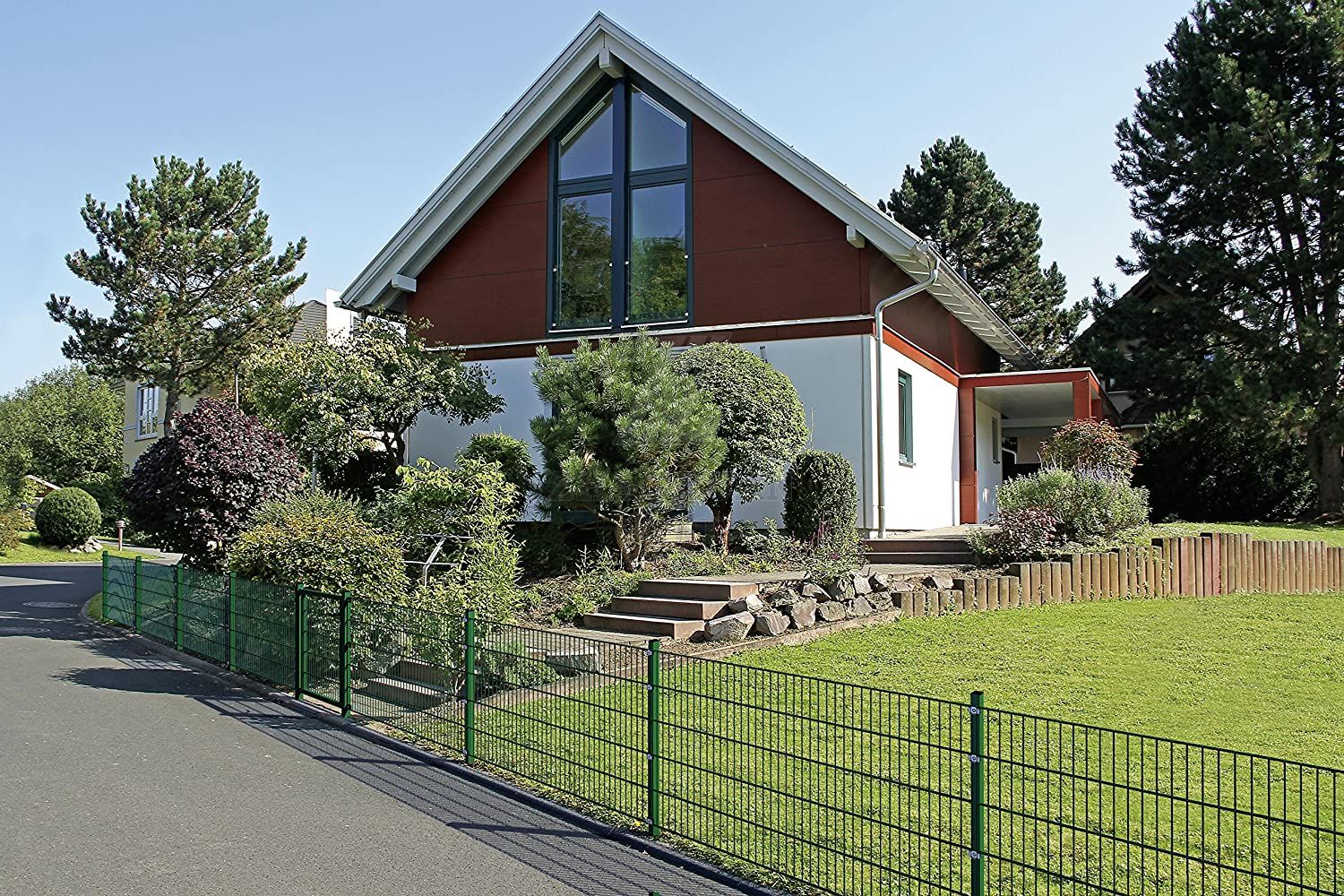

Application
