Concertina Razor Barbed Wire

Material: Galvanized or Stainless Steel Sheet & Wire

Certificate: SGS, ISO9001, ISO14001, ISO45001, BV

Brand: Zhaoxuan

Manufacturer: Anping Lansen Wire Mesh Manufacture Co.,Ltd. (our own factory)

Origin: China

Inquire Now

Product Description

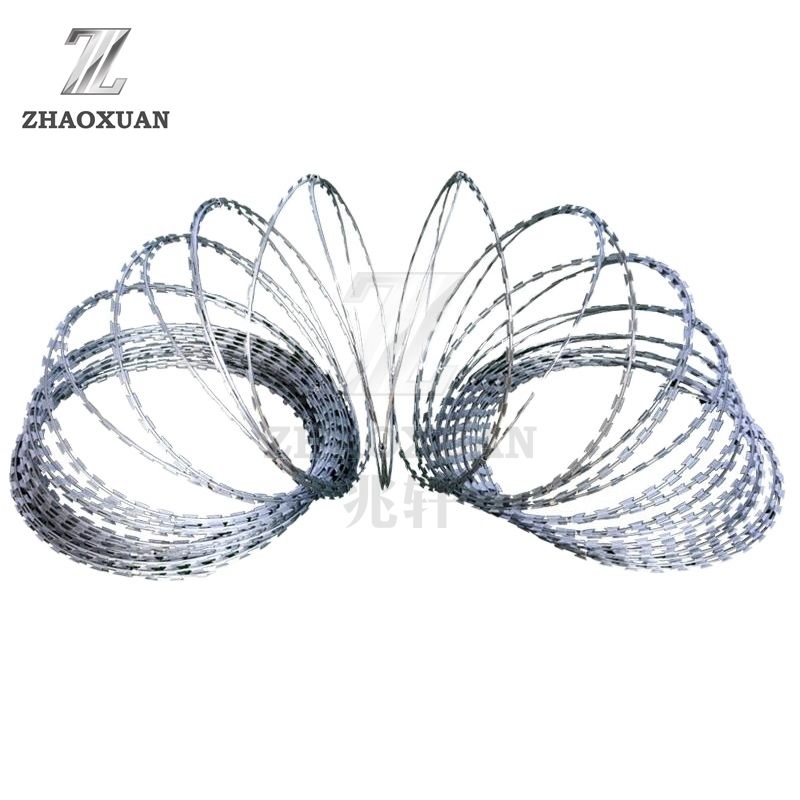

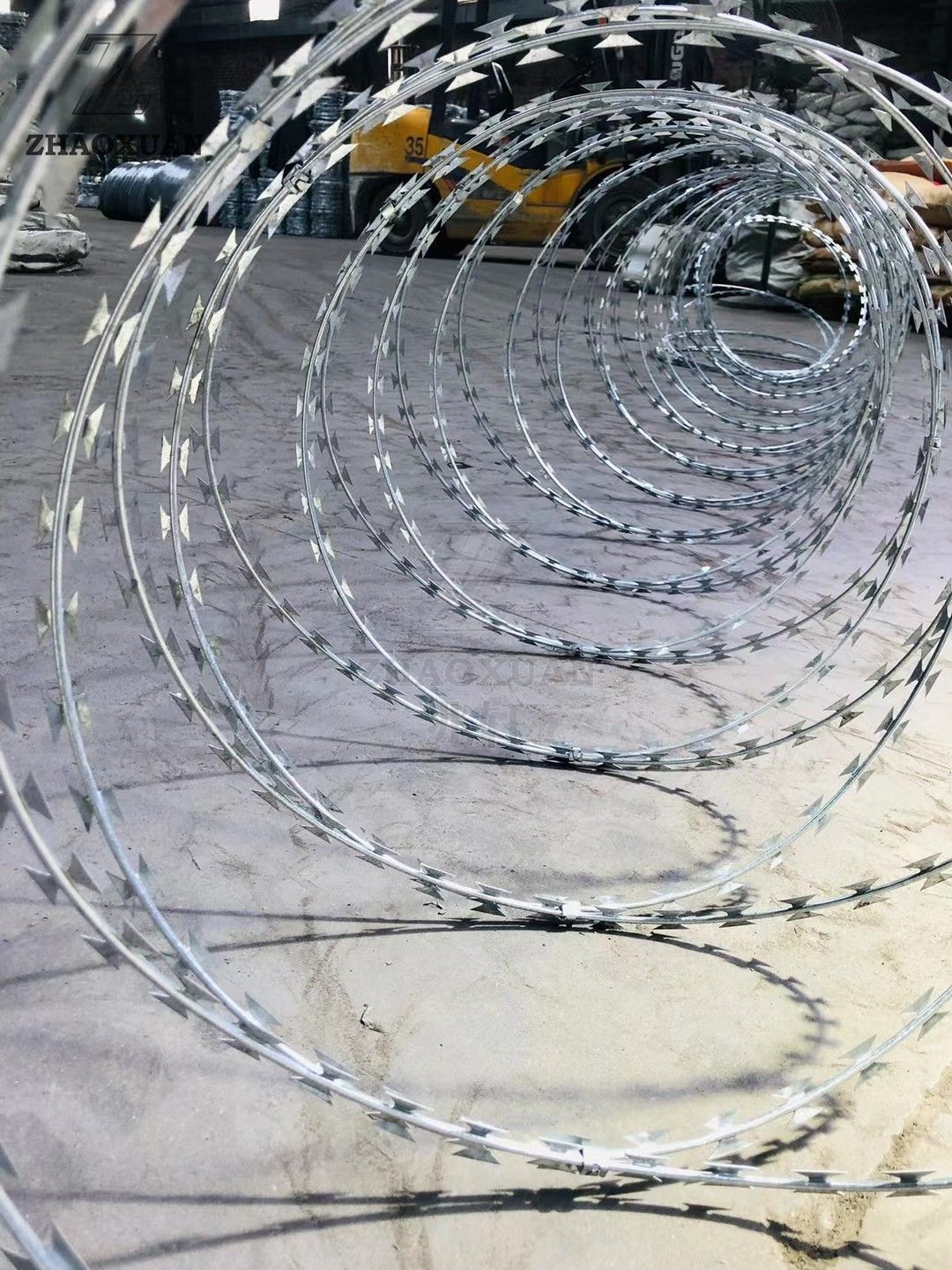

Concertina Razor Barbed Wire

Concertina wire is a type of razor wire that is one of the most widely used. It is used as a security measure to preventunauthorised entry or intrusion. It consists of coils of wire with sharp edges which are interwoven and designed to form an impenetrable barrier.

Concertina wire is usually used in high security areas such as military and prisons, airport and government buildings, as well as in border fences to prevent illegal immigration and smuggling, and to protect homes, factories, ect. It is very effective in deterring intruders.

The raw materials are made of hot dipped galvanized steel sheets and hot dipped galvanized wire, or stainless steel sheets and stainless steel wire, which are very resistant to corrosion and can be used for more than ten years without rusting.

High strength steel, high tensile strength, hign hardness, good elasticity.

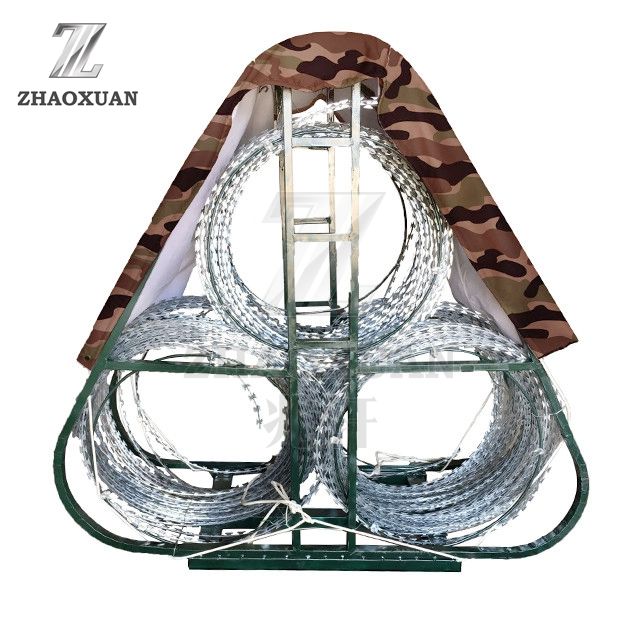

Can be used independently or installed on top of the parapet or wall, easy to install, easy to transport.

Unique shape, will not be easily destroyed, intruders difficult to cross.

Specification:

Standard Production Type

Outside Diameter	No. of Loops	Standard Length per coil	Type	Notes
450mm	33	7-8m	CBT-60.65	Single Coil
500mm	56	12-13m	CBT-60.65	Single Coil
700mm	56	13-14m	CBT-60.65	Single Coil
960mm	56	14-15m	CBT-60.65	Single Coil
450mm	56	8-9m	BTO-12.22.25.30	Cross Type
500mm	56	9-10m	BTO-12.22.25.30	Cross Type
600mm	56	10-11m	BTO-12.22.25.30	Cross Type
600mm	56	8-10m	BTO-12.22.25.30	Cross Type
700mm	56	10-12m	BTO-12.22.25.30	Cross Type
800mm	56	11-13m	BTO-12.22.25.30	Cross Type
900mm	56	12-14m	BTO-12.22.25.30	Cross Type
960mm	56	13-15m	BTO-12.22.25.30	Cross Type
980mm	56	14-16m	BTO-12.22.25.30	Cross Type

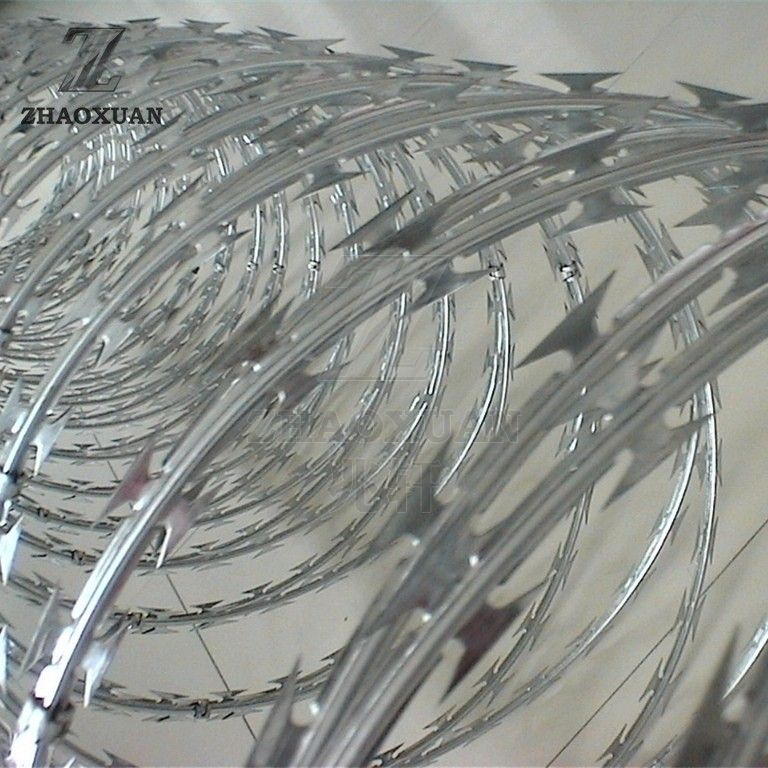

Razor Blade Type and Specification

Reference No.	Blade Style	Thickness (mm)	Wire Diameter(mm)	Barb Length (mm)	Barb Width (mm)	Barb Spacing (mm)
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-15		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-30		0.5±0.05	2.5±0.1	30	18	45±1
CBT-60		0.5±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.5±0.05	2.5±0.1	65±2	21±1	100±2

Application

Range Of Application:

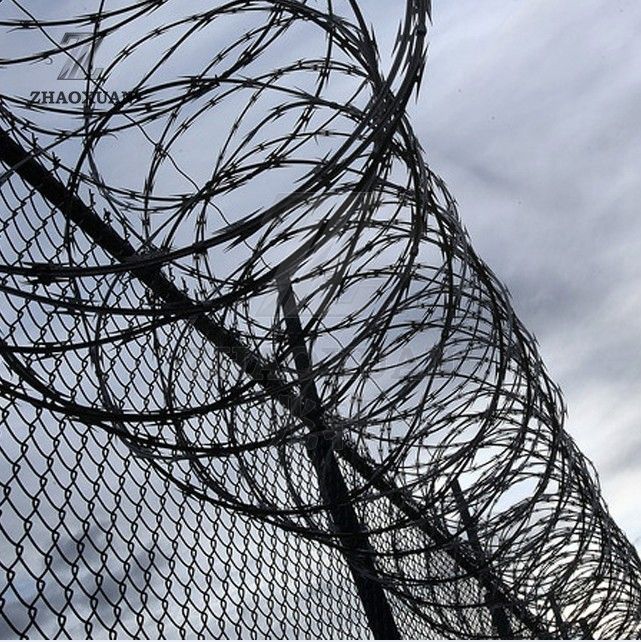

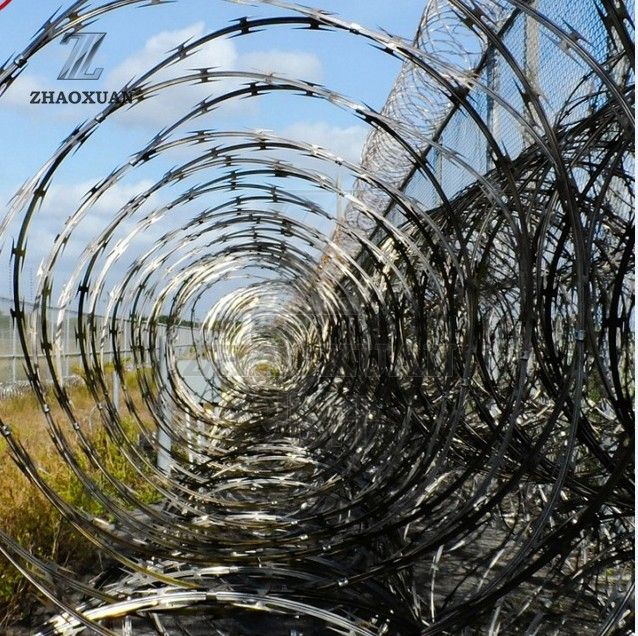

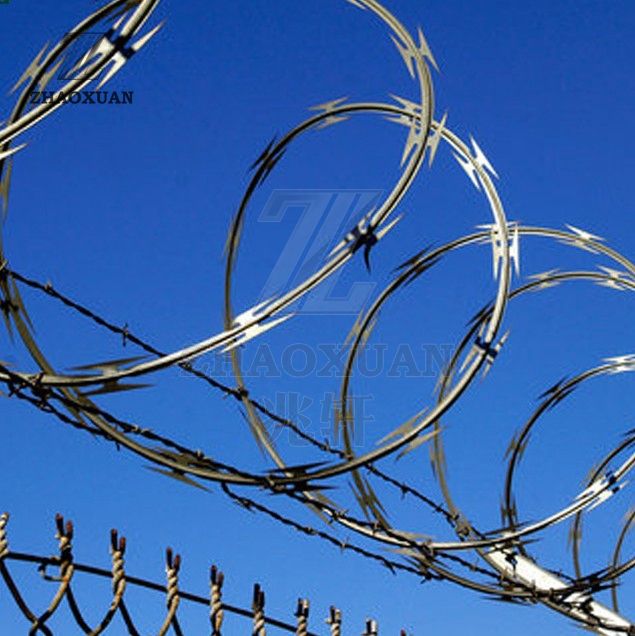

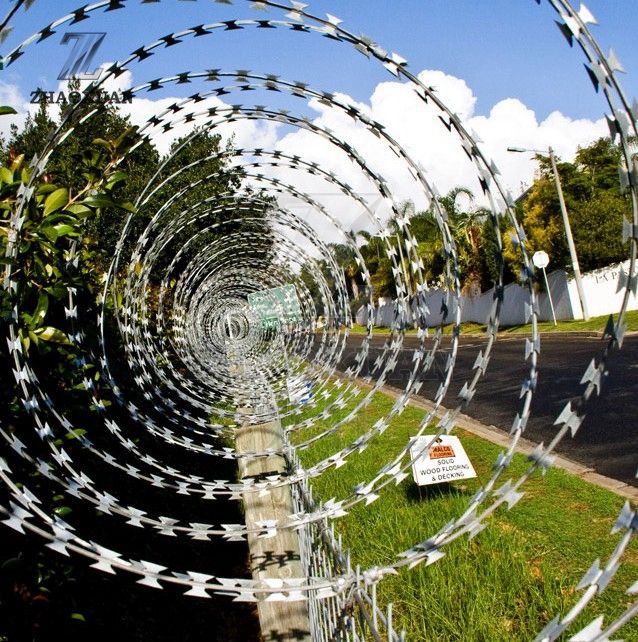

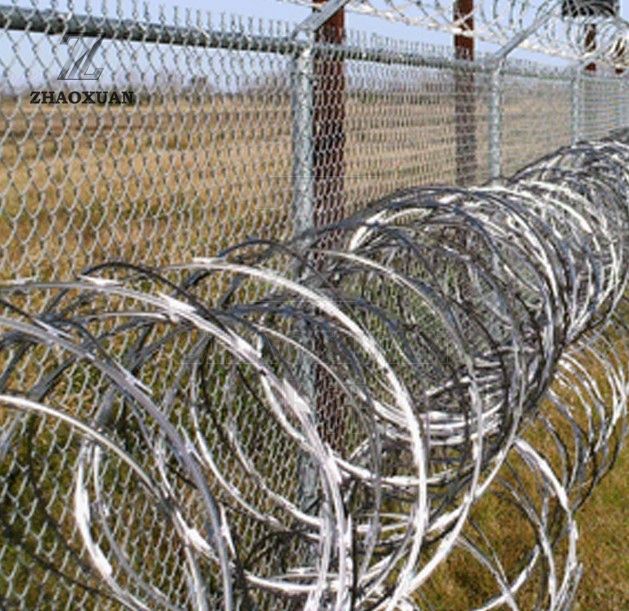

The concertina wire is easy to transport and install ans is used in a wide range of applications such as prisons, airports, borders, military bases, trenches, as well as residential and home fences, ect. It can be installed on the top of fences or walls or can be installed independently to form razor wire fences.
