China factory supply high quality stainless steel Welded Wire Panel

Share

Product Description

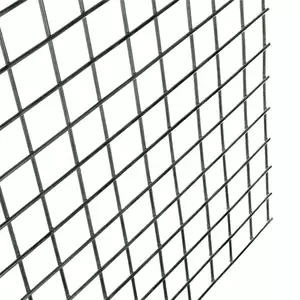

GALVANIZED WELDED MESH/PANEL
*Material: Low carbon steel wire Q195 *Classification
         Ⅰ Electric Galvanized Welded Mesh
        Ⅱ Hot dipped Galvanized Welded Mesh

WELDED WIRE MESH

Hole Size

Wire Diameter

Width&Length

In inch

In MM

In BWG

In MM


1/2"

12.7mm

BWG16- BWG28

1.65mm-0.356mm

Width:0.5m-2.0m

Length:25m,30m

Other Sizes can be made as request

3/4"

19.05mm

BWG16- BWG27

1.65mm-0.406mm

1"

25.4mm

BWG14- BWG20

2.1mm-0.88mm

1"×2"

25.4×50.8mm

BWG14- BWG19

2.1mm-1.06mm

2"

50.8mm

BWG12- BWG18

2.76mm-1.24mm

2"×4"

50.8×101.6mm

BWG10- BWG10

3.4mm-1.24mm

1/4"

6.35mm

BWG19- BWG24

1.06mm-0.56mm

3/8"

9.52mm

BWG18- BWG27

1.24mm-0.406mm

5/8"

16mm

BWG18- BWG27

1.24mm-0.406mm

New mesh sizes:   1"×1/2",30×30mm,60×60mm
