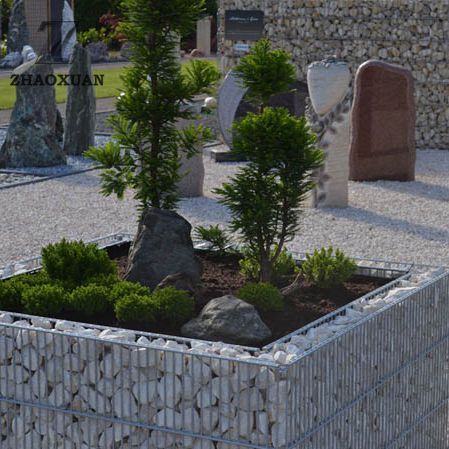

Garden Products

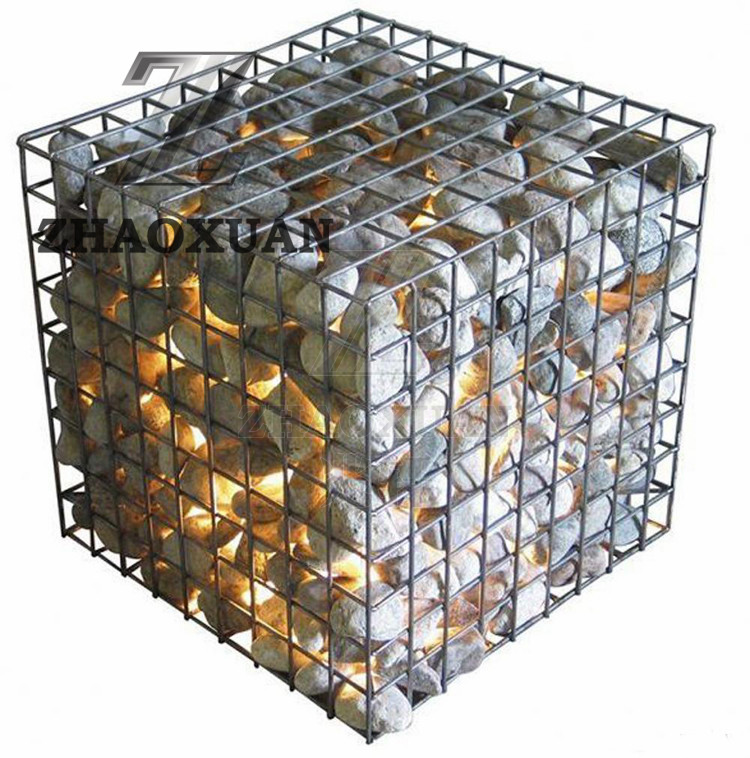

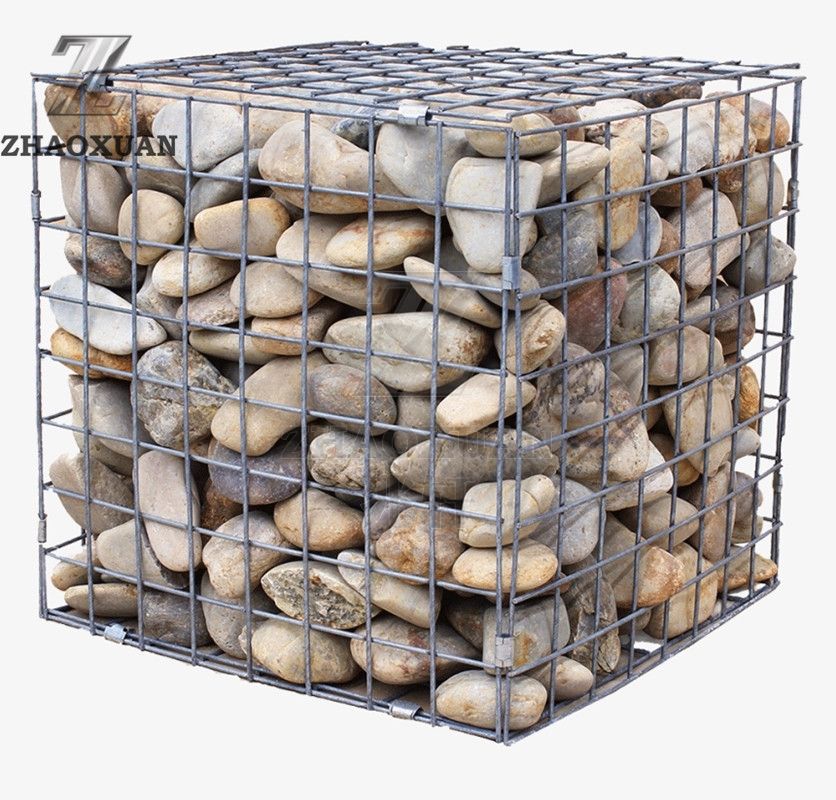

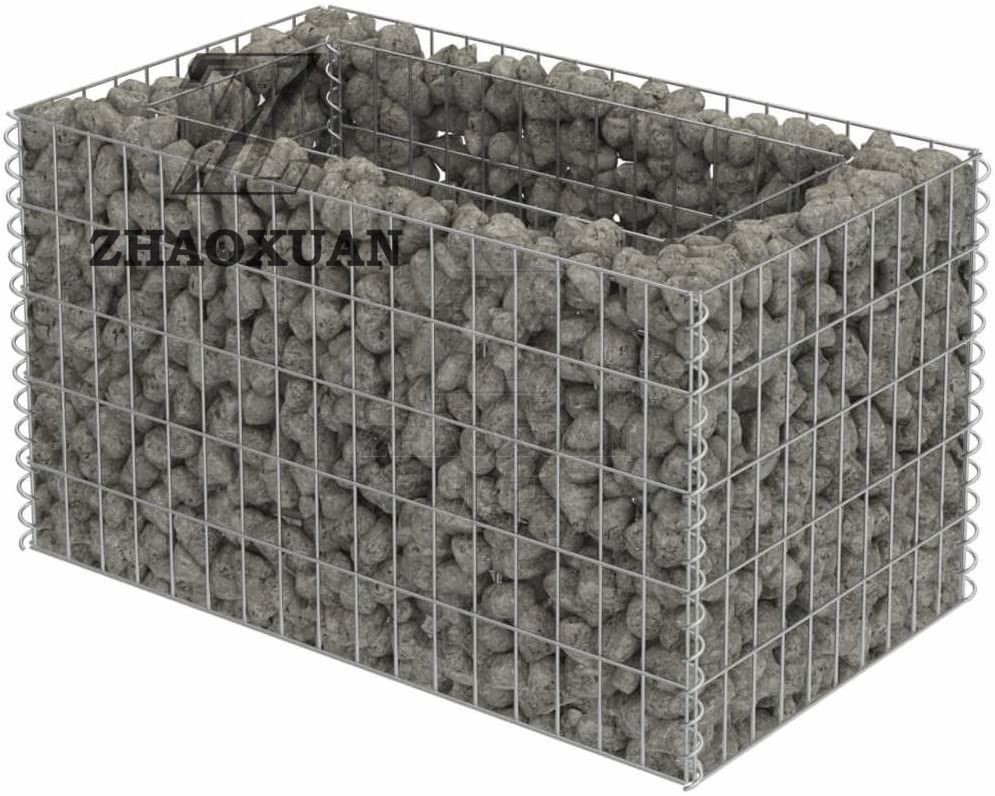

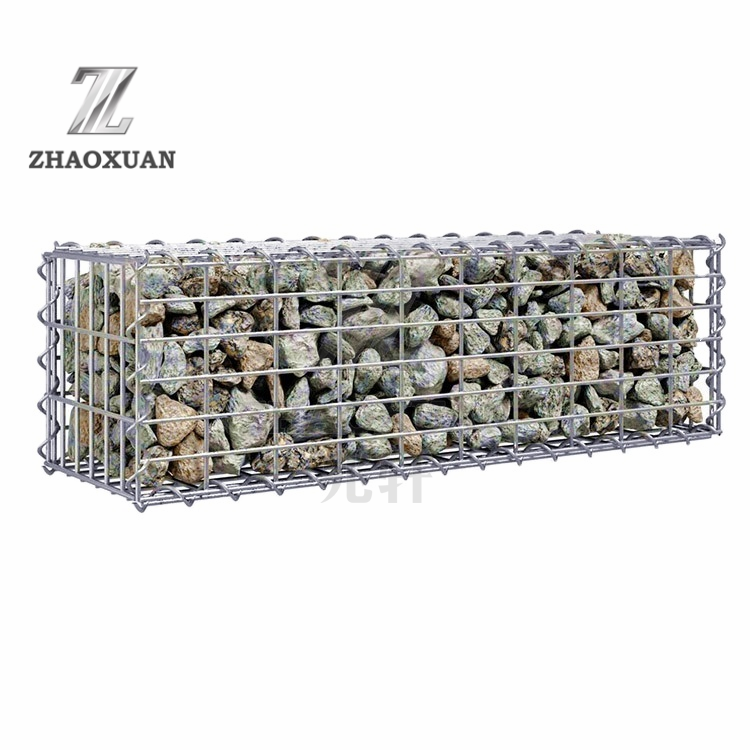

The welding stone cage net is made of high-quality low-carbon steel wire through automatic, precise and accurate mechanical equipment, and is surface passivated and plasticized by electro, hot-dip galvanizing, spray-coating, dip-molding or Galvan. deal with. When transporting, the welded front and rear panels, the bottom plate and the partition are assembled with the spiral binding wire and packaged together with the cage cover.
dimension:100*80*50cm,100*30*30cm,100*50*30cm,100*50*50cm or else size.
Manufacturer:Anping County, Hebei Province, China
HEBEI ZHONG LAN CERTIFICATION CO.LTD
Product Description
| Gabion Box | ||||
| 表面处理 Surface Treatment | 网孔 Mesh Size | 网丝 Mesh Wire (mm) | 边丝 Selvedge Wire (mm) | 绑丝 Lacing Wire (mm) |
| Heavy Hot dipped Galvanized or Golfan galvanized and PVC coating | 60×80 | 2.0mm/3.0mm 22mm32mm | 2.8mm/3.8mm 3.0mm/4.0mm | 1.8mm/2.8mm 2.0mm/3.0mm |
| 80×100 80120 | 22mm/32mm 2.5mm/35mm 2.7mm3.7mm | 3.0mm/4.Omm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 100×120 100×150 | 2.2mm3.2mm 2.5mm35mm 2.7mm37mm | 3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 120×150 | 2.2mmy3.2mm 2.5mmy3.5mm 2.7mm3.7mm | 3.0mn/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 格宾网尺寸 Size | 备注 Notes | 公差范围 The tolerance | |||
| 长(m) | 宽(m) | 高(m) | 隔片数量(unt | 体积(m³) | 长k3% 宽k5% 高 ： 5 % |
| 2.00 | 1.00 | 0.30 | 1 | 060 | |
| 3.00 | 1.00 | 0.30 | 2 | 090 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
| 表面处 理Surface Treatment | 网孔 Mesh Size | 网丝 Mesh Wire (mm) | 边丝 Selvedge Wire (mm) | 绑丝 Lacing Wire (mm) | ||||
| Heavy Hot dipped Galvanized or Golfan galvanized (5%or 10% Aluminium + Zinc) | 60×80 | 2.0-2.2mm | 2.8-3.0mm | 1.8-2.0mm | ||||
| 80×100 80×120 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
| 100×120 100×150 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
| 120×150 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||

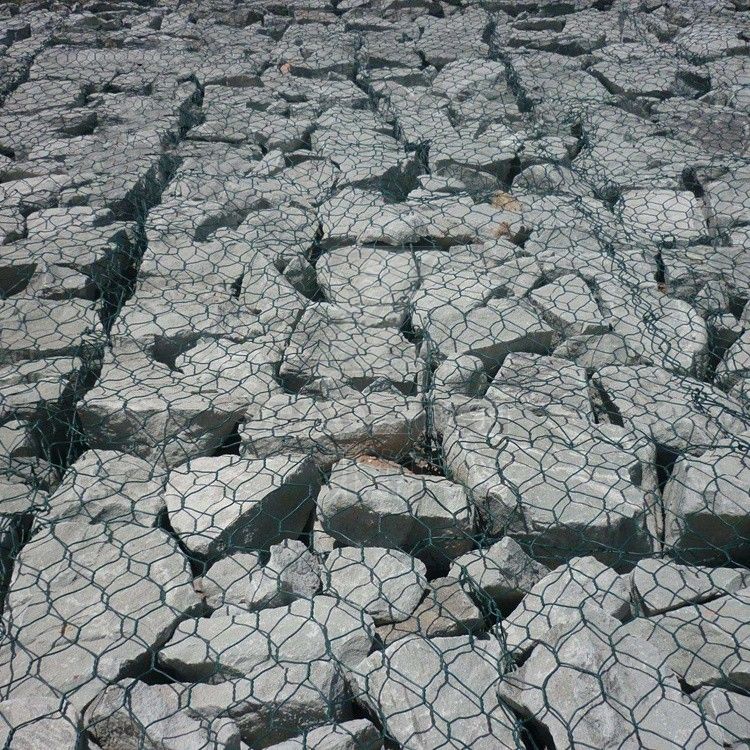

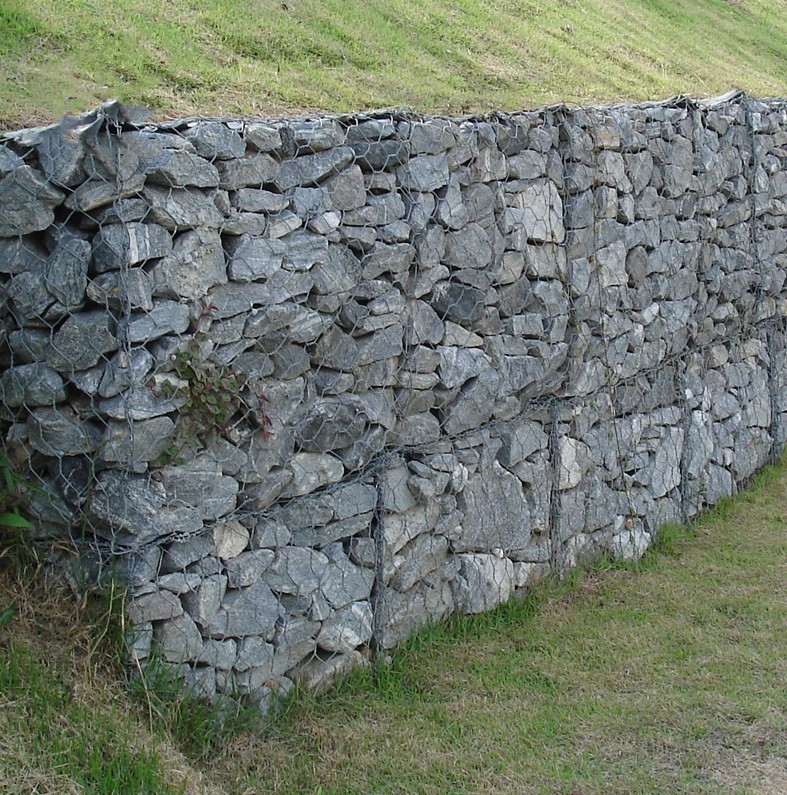

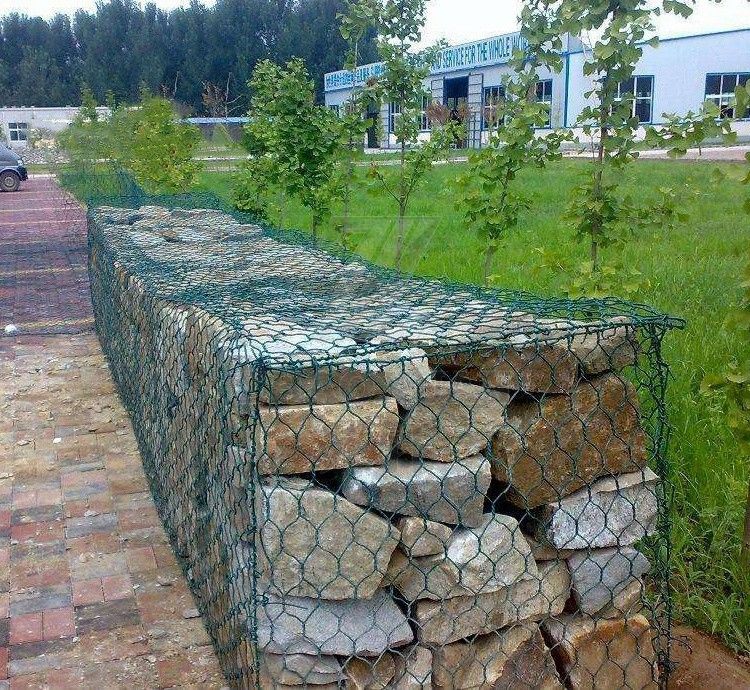

Gabion Cages(Boxes)are made of hexagonal Galvanized/PVC/Zine coatede double-twised mild steel wire mesh. Gabion boxes shall be supplied in various lengths,widths and heights.In order to strengthen the boxes,all the edged of the structure shall be selvedged with wire of bigger diameter.
Rockfall Nets
Rock-fall protection netting
Rock fall netting is a steel woven hexagonal opening wire netting which is used to prevent rocks and debris from falling onto roads,railways and other structures.
The mesh is made of heavily zine coated or PVC+Heavily Zine coated double twisted steel woven wire. Due to the characteristics of double twist, the steel wire netting can withstand the force of falling rocks without unraveling in the event of wire breakage.

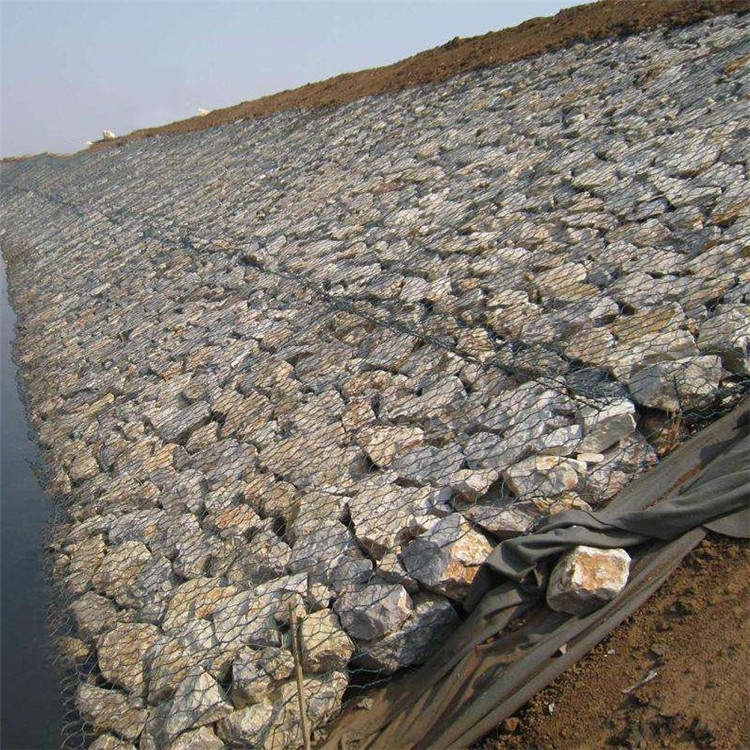

River Gabion Mattresses
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.
Application
Strengthening the stability of the river beds;Protecting riverbeds from being washed away;Providing the prefixed value of coarseness modulus of river banks;Protecting the trees and zoology of slopes and banks.
