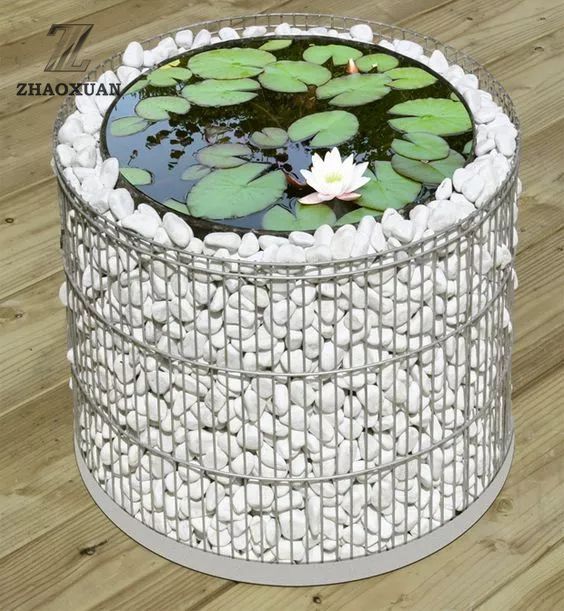

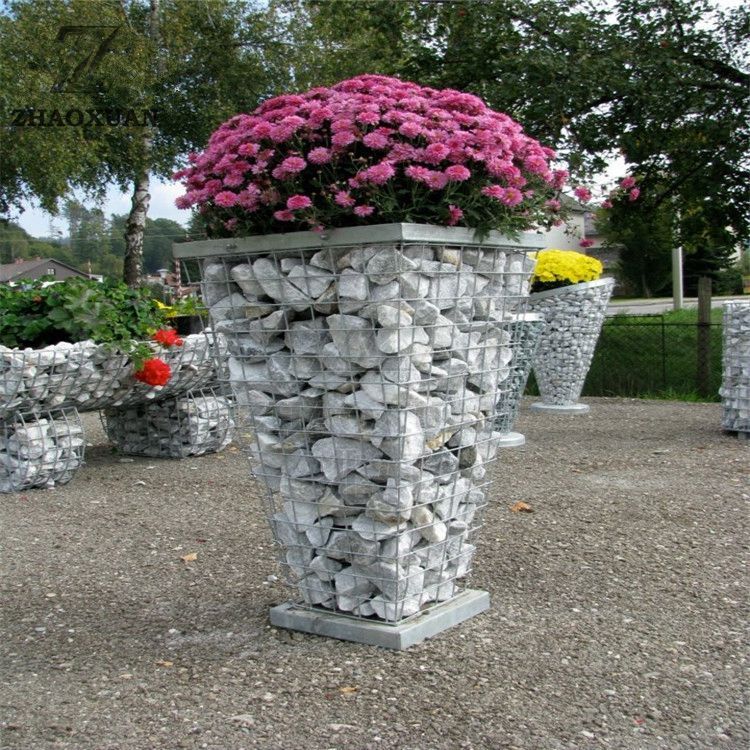

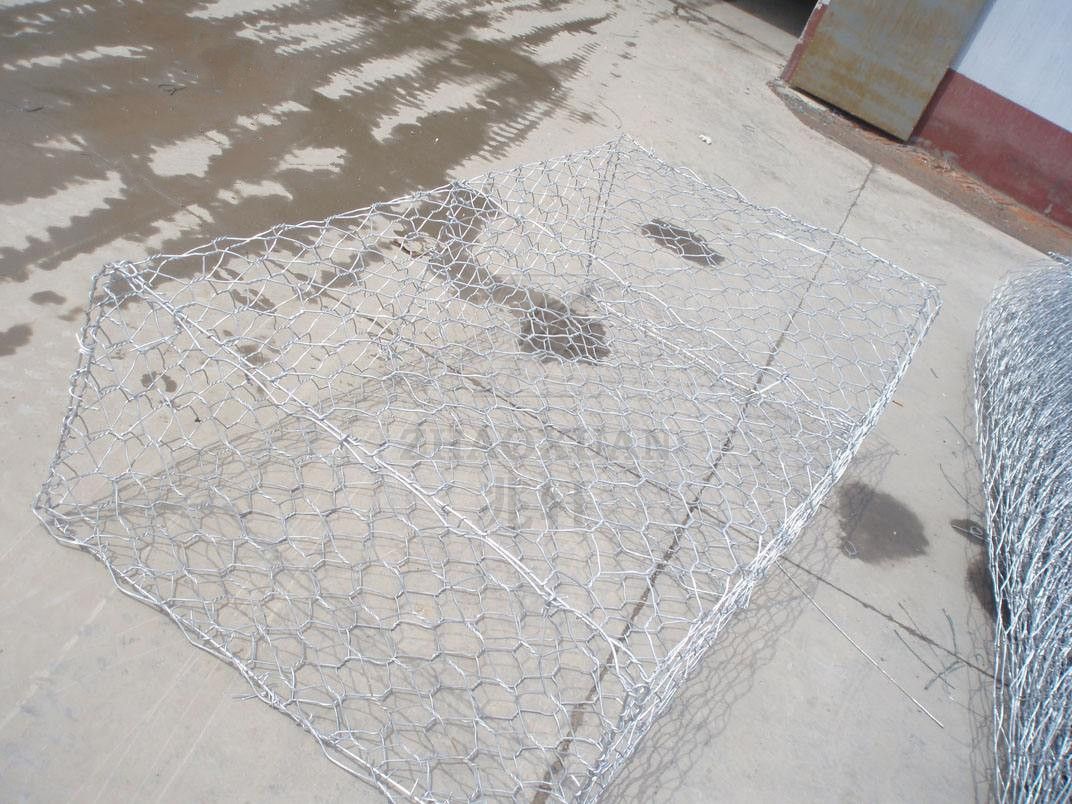

The gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.
Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the edges of the structure shall be selvedged with wire of bigger diameter.

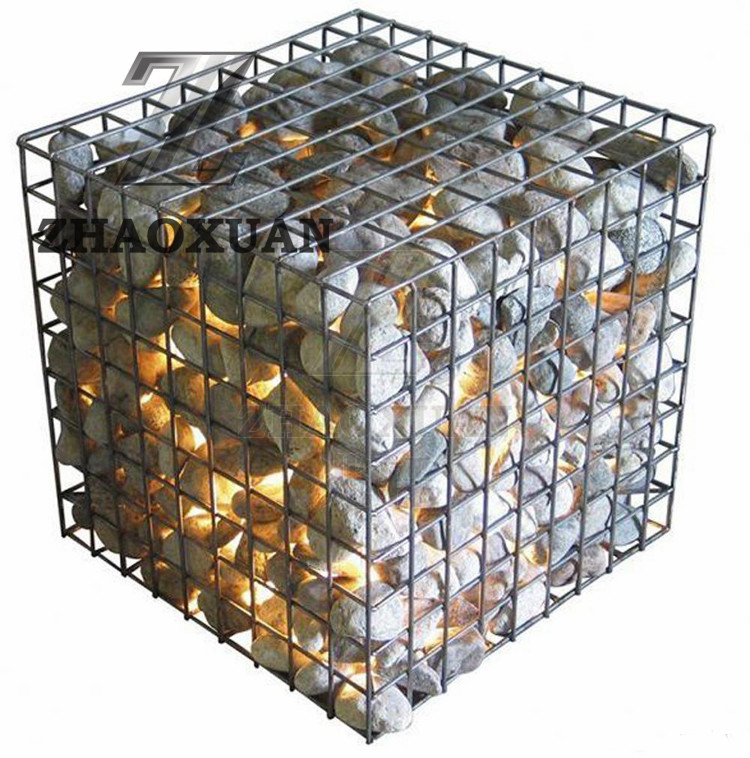

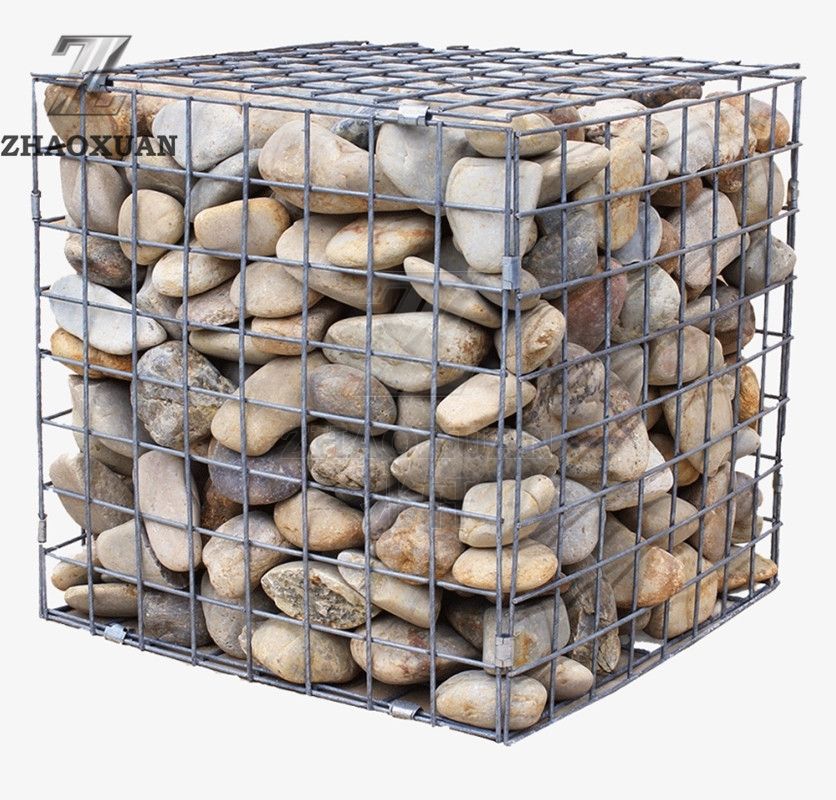

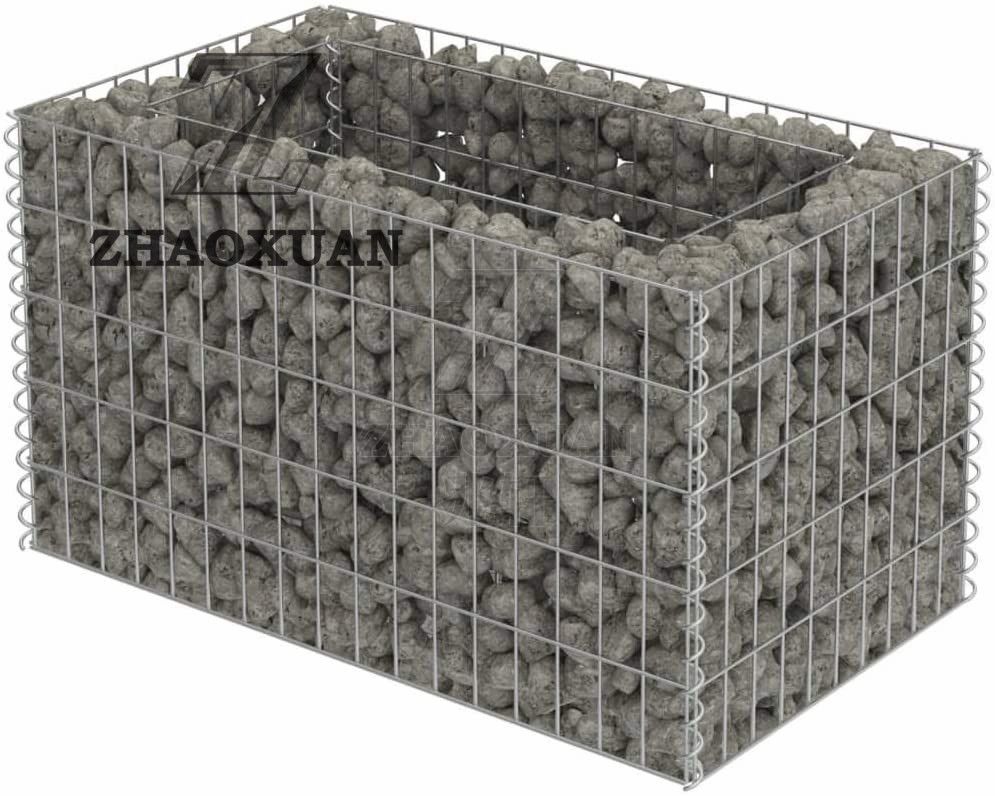

Welded gabion basket is made from welded wire mesh.
They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.
Manufacturer:Anping County, Hebei Province, China
HEBEI ZHONG LAN CERTIFICATION CO.LTD
Product Description
Product name | wire diameter | mesh size | gabion size |
welded gabion | 3-4mm | 50X50,75X75,50X100 | 1*1*0.5,1*1*1,etc |
welded gabion | 4mm | 50X50,75X75,50X100 | 1*1*1,2*1*0.5,etc |
welded gabion | 4-5mm | 50X100,75X75,100X100 | 2*1*0.5,2*1*1,etc |
| Gabion Box | ||||
| 表面处理 Surface Treatment | 网孔 Mesh Size | 网丝 Mesh Wire (mm) | 边丝 Selvedge Wire (mm) | 绑丝 Lacing Wire (mm) |
| Heavy Hot dipped Galvanized or Golfan galvanized and PVC coating | 60×80 | 2.0mm/3.0mm 22mm32mm | 2.8mm/3.8mm 3.0mm/4.0mm | 1.8mm/2.8mm 2.0mm/3.0mm |
| 80×100 80120 | 22mm/32mm 2.5mm/35mm 2.7mm3.7mm | 3.0mm/4.Omm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 100×120 100×150 | 2.2mm3.2mm 2.5mm35mm 2.7mm37mm | 3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 120×150 | 2.2mmy3.2mm 2.5mmy3.5mm 2.7mm3.7mm | 3.0mn/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm | 2.2mm/3.2mm | |
| 格宾网尺寸 Size | 备注 Notes | 公差范围 The tolerance | |||
| 长(m) | 宽(m) | 高(m) | 隔片数量(unt | 体积(m³) | 长k3% 宽k5% 高 ： 5 % |
| 2.00 | 1.00 | 0.30 | 1 | 060 | |
| 3.00 | 1.00 | 0.30 | 2 | 090 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
| 表面处 理Surface Treatment | 网孔 Mesh Size | 网丝 Mesh Wire (mm) | 边丝 Selvedge Wire (mm) | 绑丝 Lacing Wire (mm) | ||||
| Heavy Hot dipped Galvanized or Golfan galvanized (5%or 10% Aluminium + Zinc) | 60×80 | 2.0-2.2mm | 2.8-3.0mm | 1.8-2.0mm | ||||
| 80×100 80×120 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
| 100×120 100×150 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
| 120×150 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.
Application

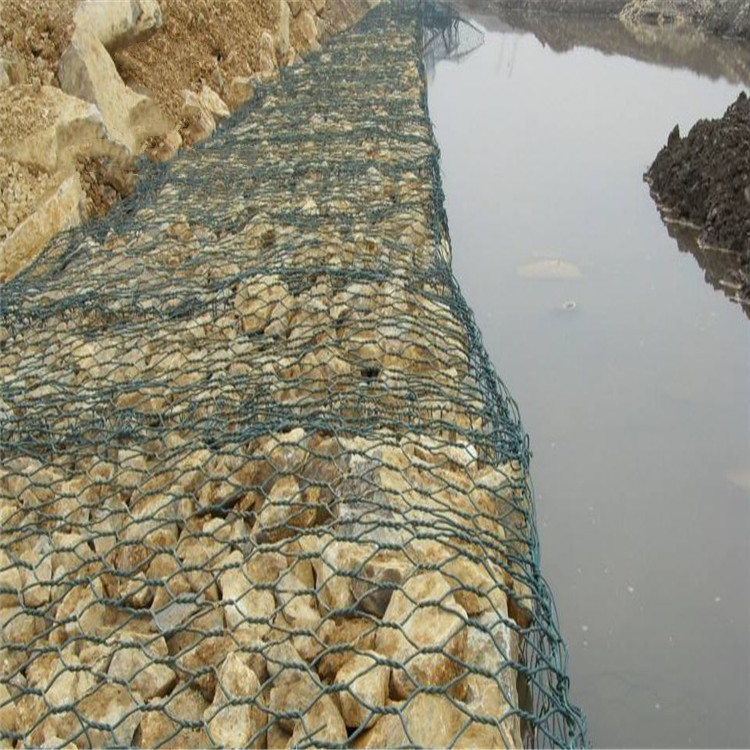

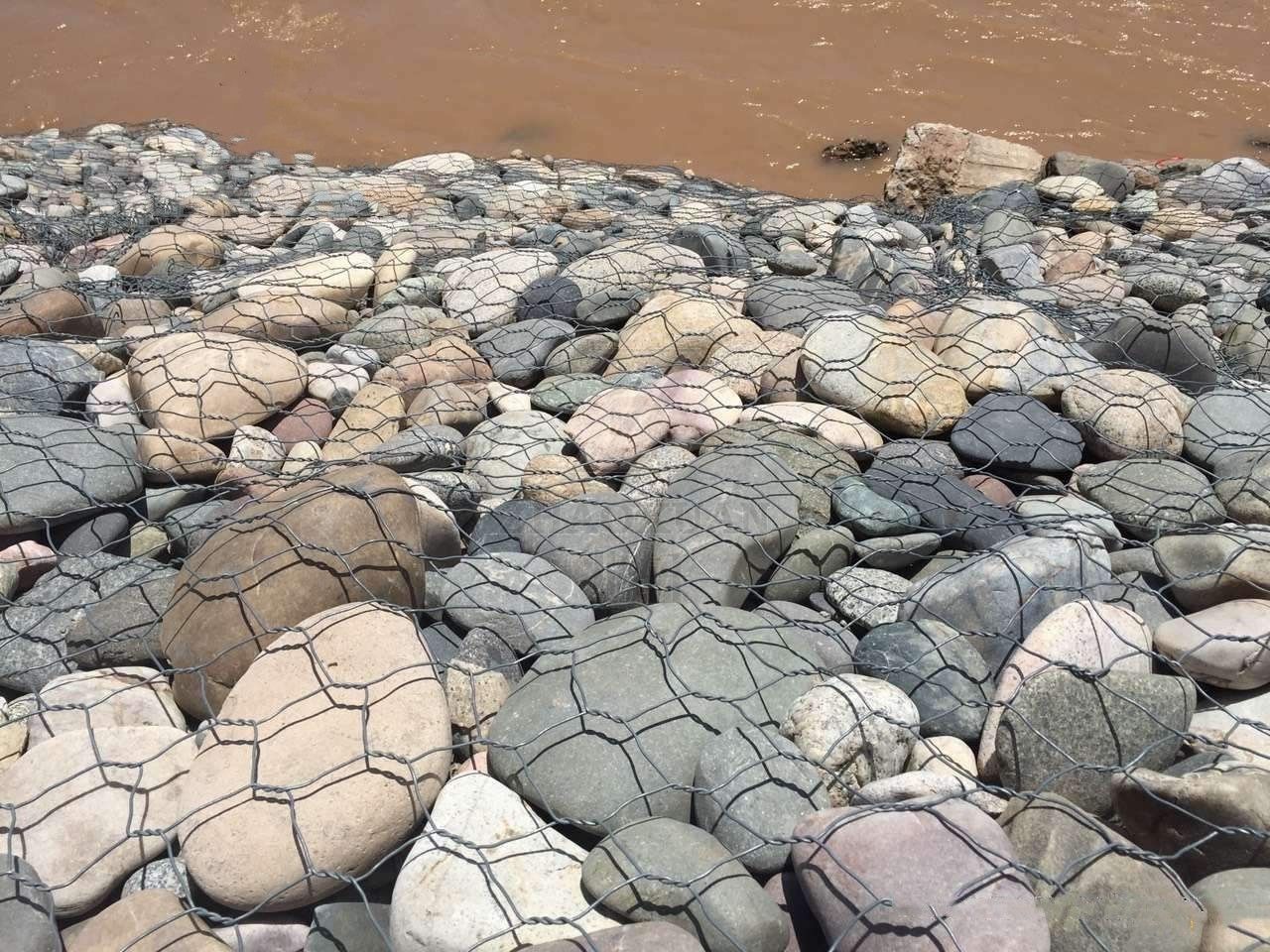

Strengthening the stability of the river beds;Protecting riverbeds from being washed away;Providing the prefixed value of coarseness modulus of river banks;Protecting the trees and zoology of slopes and banks.
