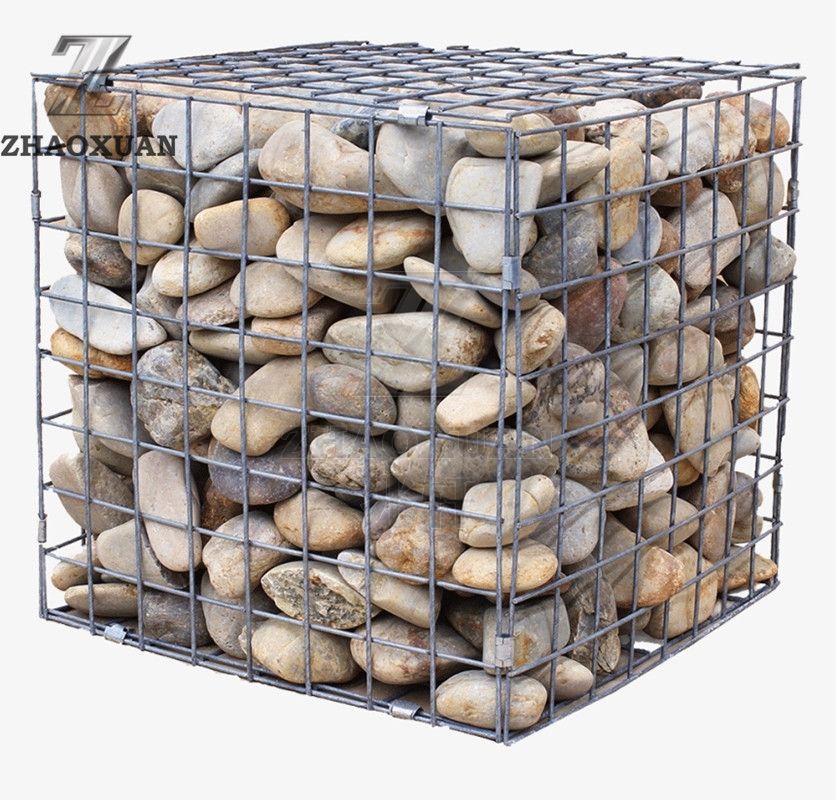

Garden Galvanized Welded Gabion Stone Basket

The gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.

Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the edges of the structure shall be selvedged with wire of bigger diameter.

Inquire Now Next Product

Product Description

Surface Treatment	Mesh Size	Mesh Wire mm	Selvedge Wire mm	Lacing Wire mm
Heavy Hot dipped galvanized or golfan galvanized and PVC coating	60×80	2.0mm/3.0mm 2.2mm/3.2mm	2.8mm/3.8mm 3.0mm/4.0mm	2.8mm/2.0mm 2.0mm/3.0mm
	80×100 80×120	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
	100×120 100×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
	120×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
