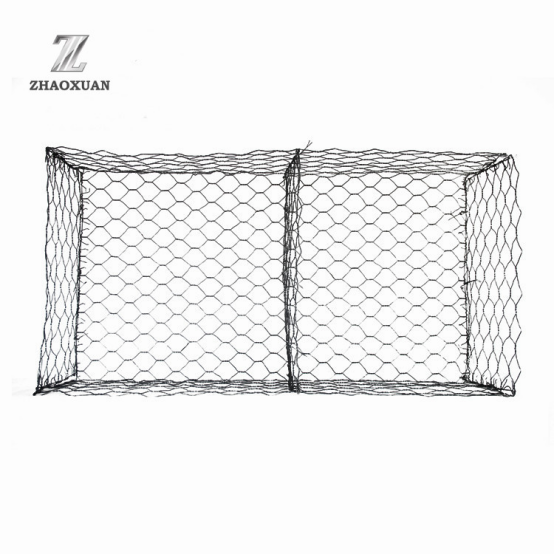

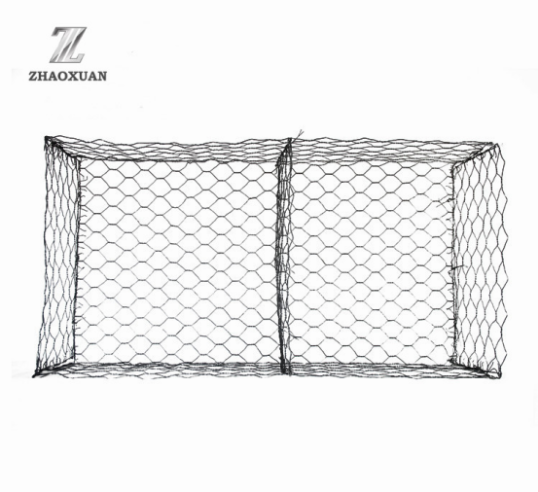

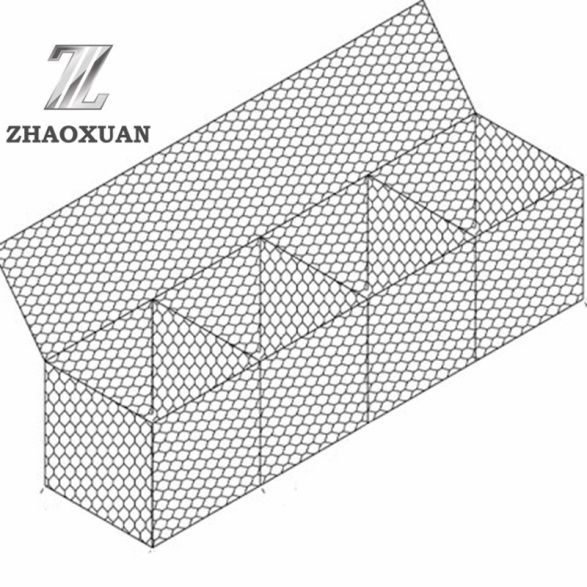

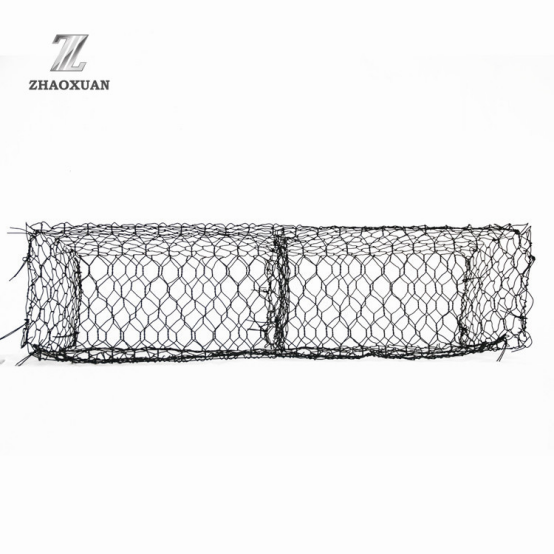

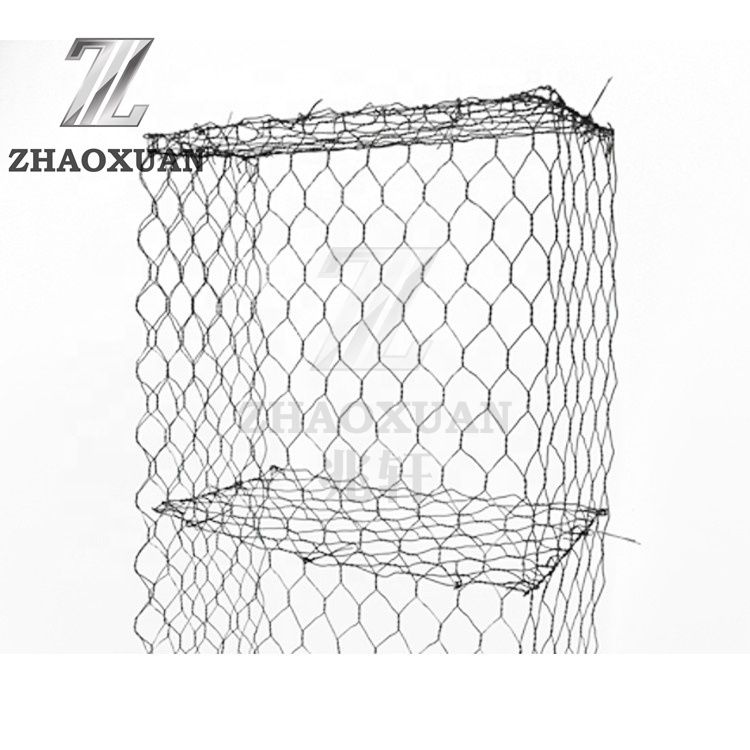

Hexagonal Gabion Box

Gabion boxes are made of heavy galvanized wire/ZnAI(Golfan)coated wire/PVC coated wires, the mesh shape is hexagonal style.

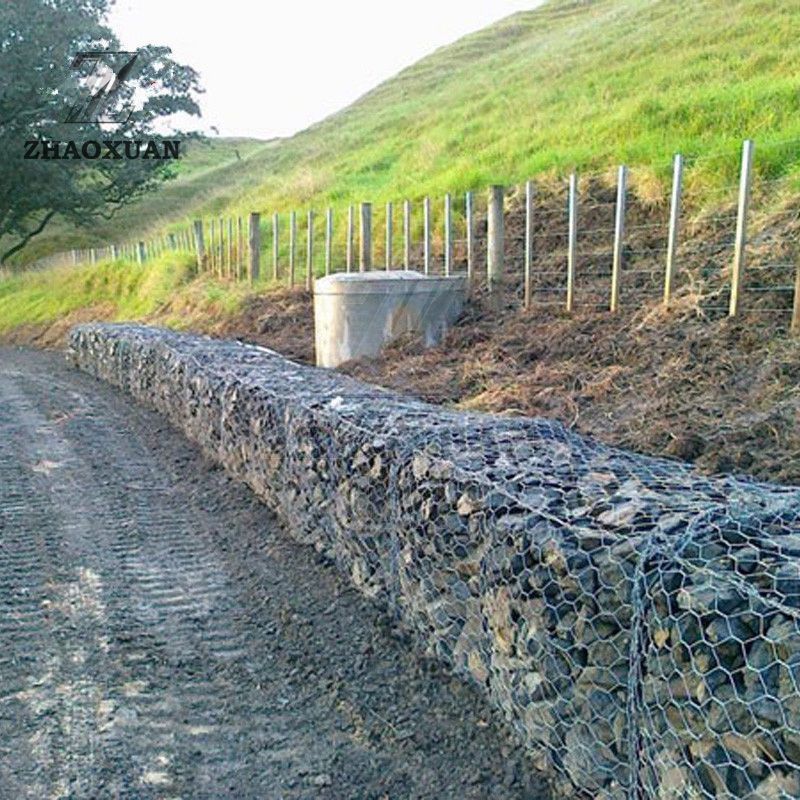

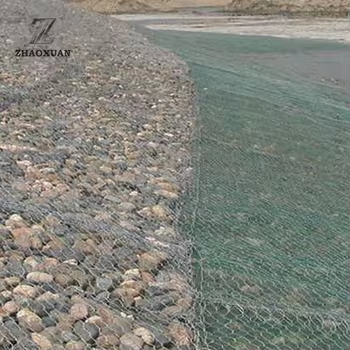

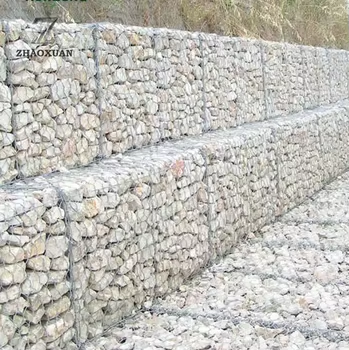

The gabion boxes are used widely in slope protection, foundation pit supporting, mountain rock holding, river protection.

Inquire Now Next Product

Product Description

Surface Treatment	Mesh Size	Mesh Wire mm	Selvedge Wire mm	Lacing Wire mm
Heavy Hot dipped galvanized or golfan galvanized and PVC coating	60×80	2.0mm/3.0mm 2.2mm/3.2mm	2.8mm/3.8mm 3.0mm/4.0mm	2.8mm/2.0mm 2.0mm/3.0mm
	80×100 80×120	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
	100×120 100×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
	120×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
