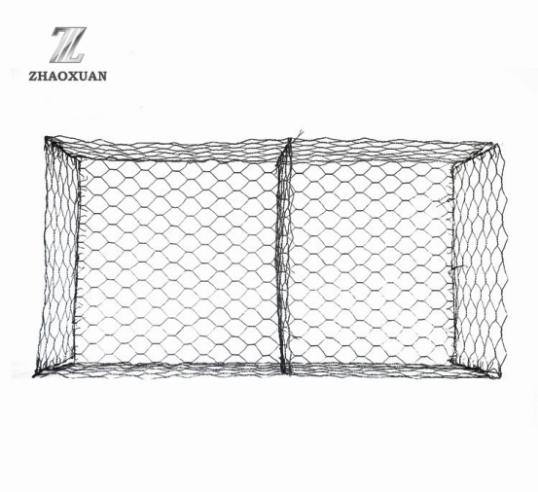

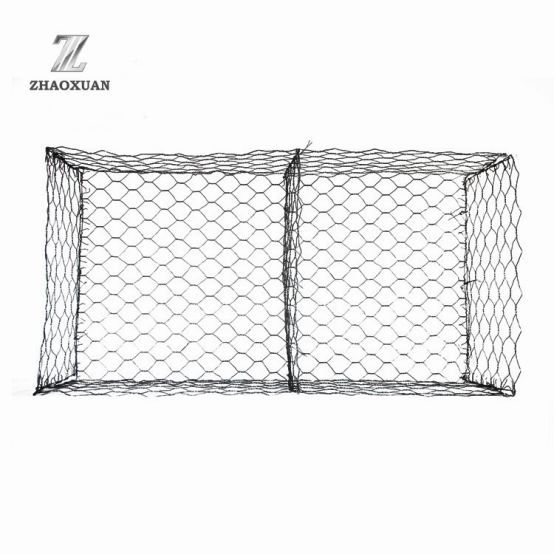

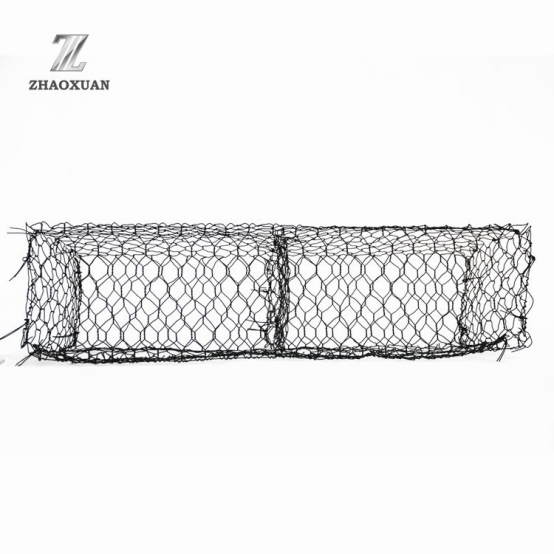

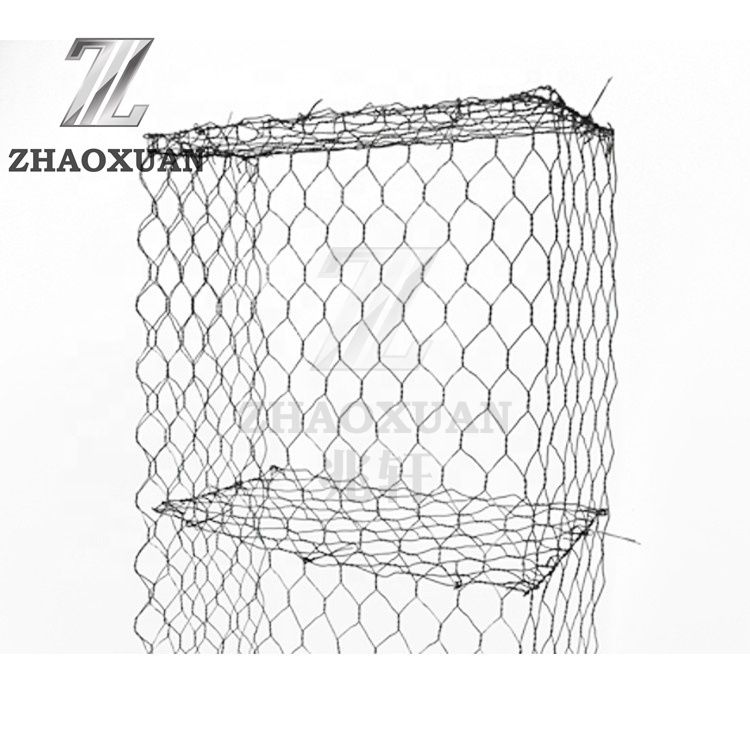

Hexagonal Gabion Basket

Gabion Boxes – Heavy-Duty Wire Mesh Containers

High-Strength Wire Mesh:

Fabricated from heavy-gauge steel wire with:

✓ Hot-Dip Galvanized Coating

✓ ZnAl (Galfan) Coating

✓ PVC Coating

Hexagonal Mesh Design:

Double-twisted weave provides optimal strength and flexibility while allowing natural drainage.

Inquire Now Next Product

Product Description

Surface Treatment	Mesh Size	Mesh Wire mm	Selvedge Wire mm	Lacing Wire mm
Heavy Hot dipped galvanized or golfan galvanized and PVC coating	60×80	2.0mm/3.0mm 2.2mm/3.2mm	2.8mm/3.8mm 3.0mm/4.0mm	2.8mm/2.0mm 2.0mm/3.0mm
	80×100 80×120	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
	100×120 100×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm
	120×150	2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm	3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm	2.2mm/3.2mm

Application

Primary Applications

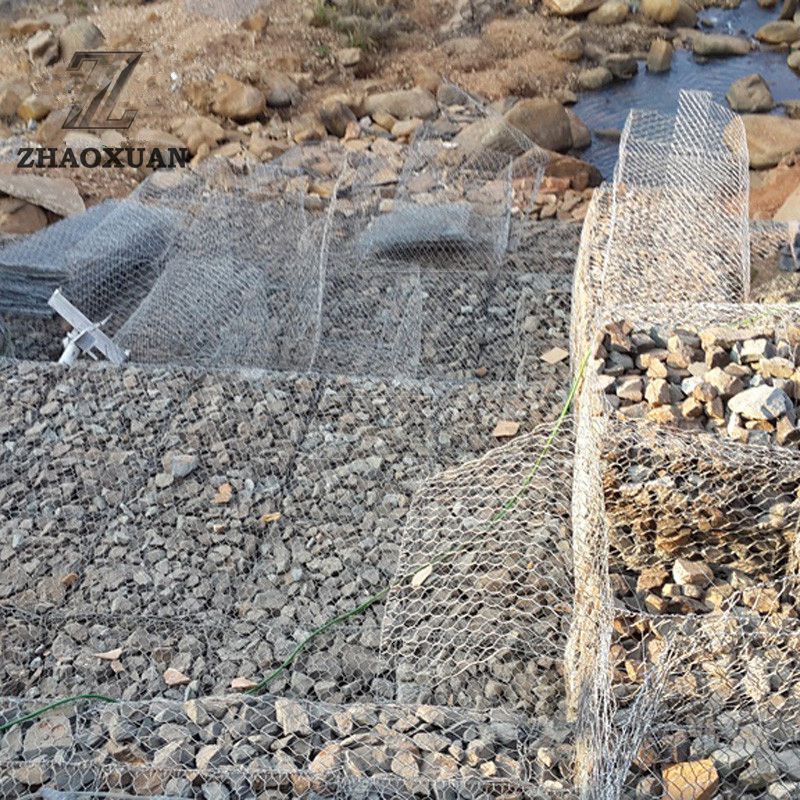

✔ Slope Stabilization: Prevents erosion and landslides on embankments

✔ Foundation Support: Reinforces retaining walls and excavation sites

✔ Geohazard Control: Secures loose rock faces in mountainous terrain

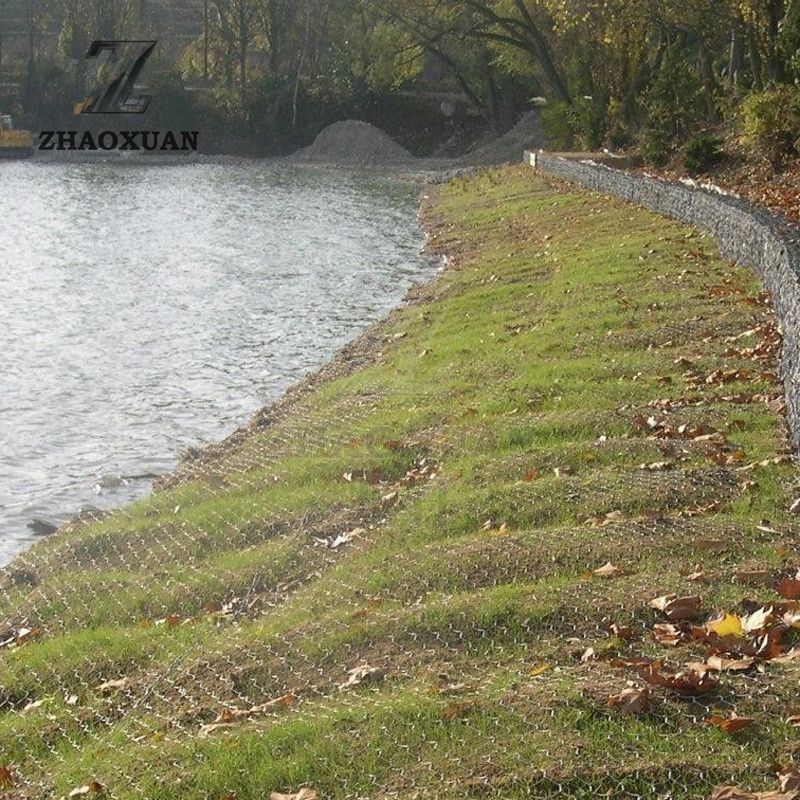

✔ Hydraulic Engineering: Protects riverbanks and coastal areas from water erosion
