Gabion Products

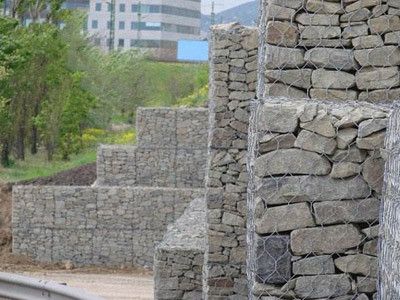

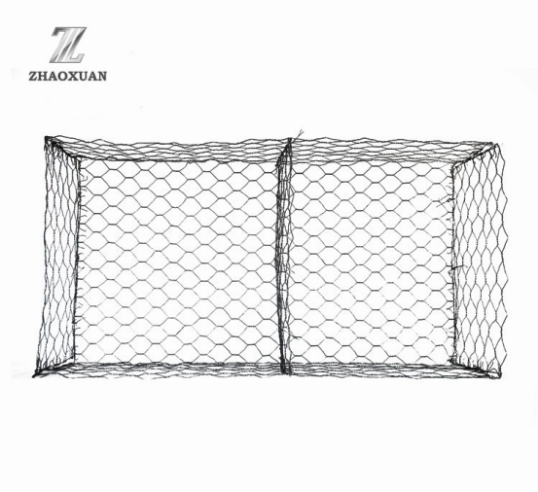

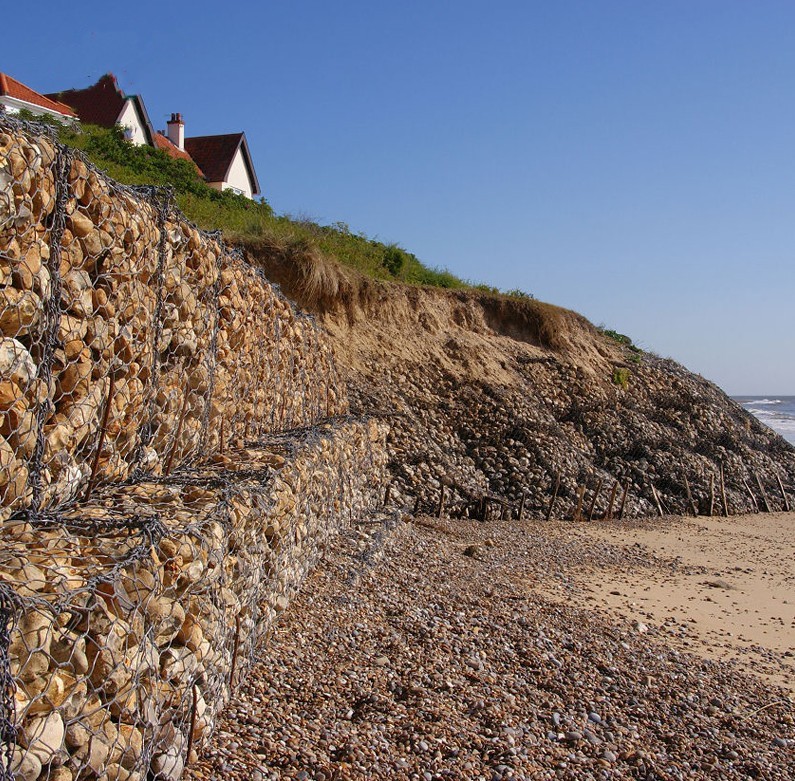

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron. Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Manufacturer:Anping County, Hebei Province, China

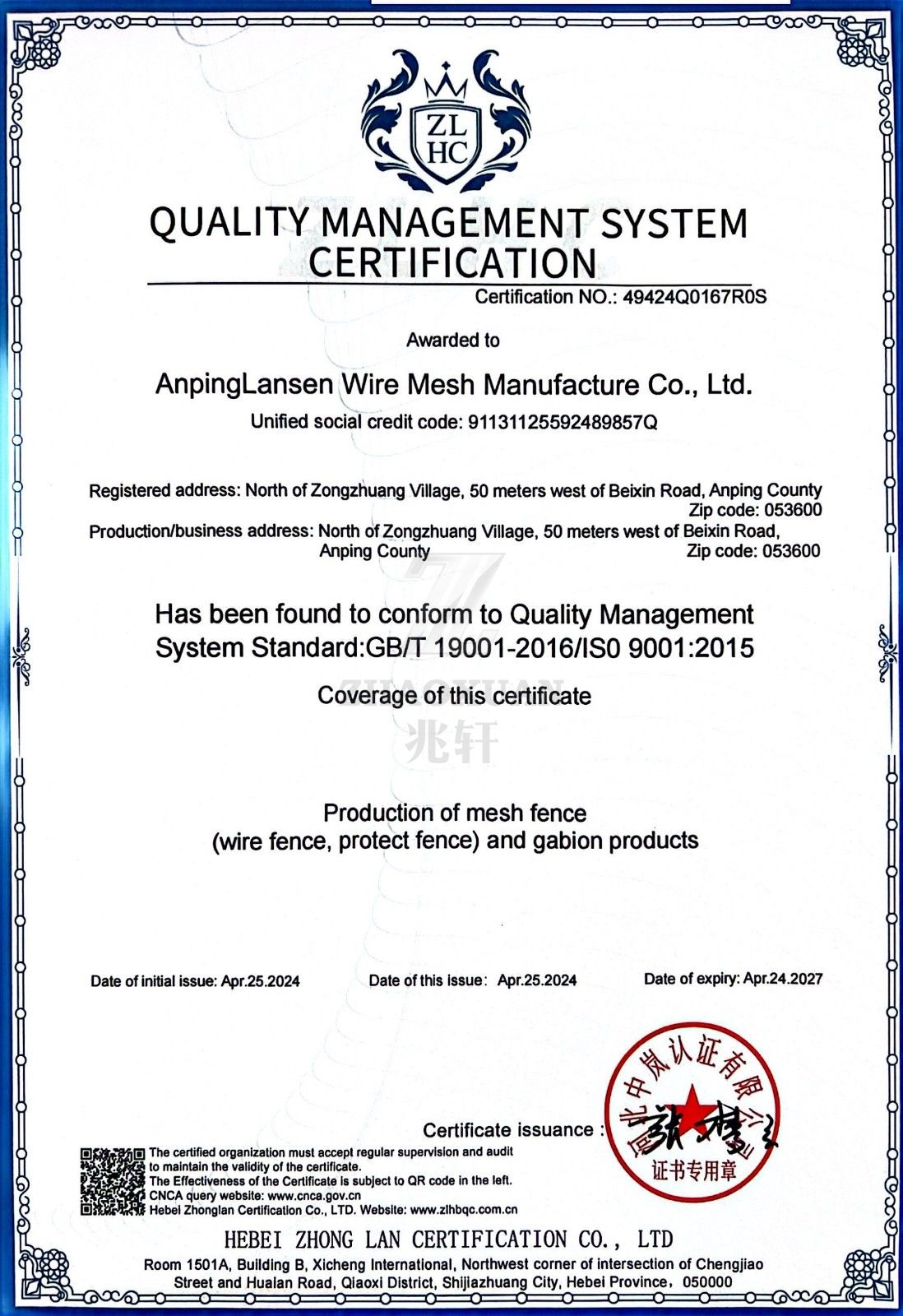

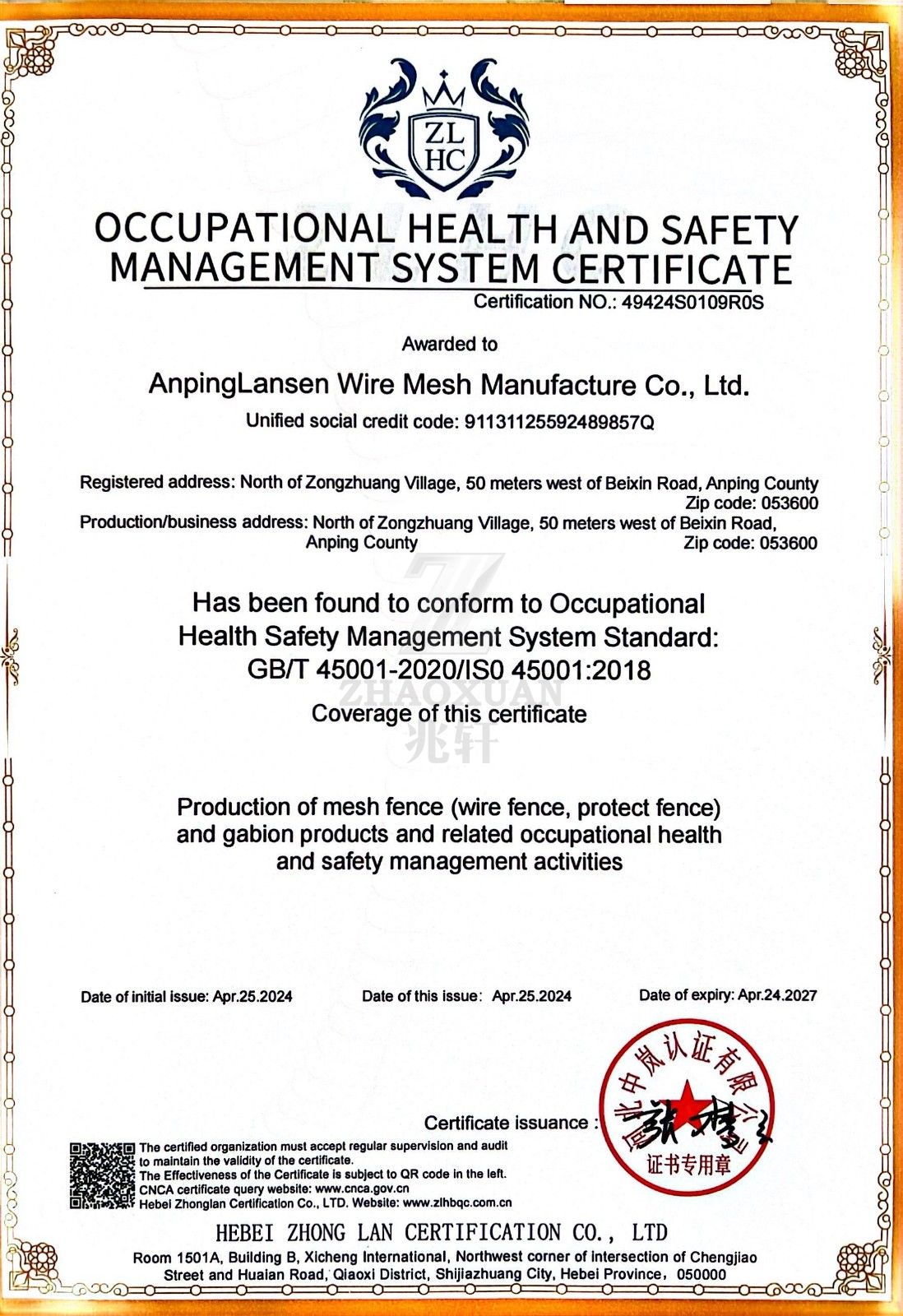

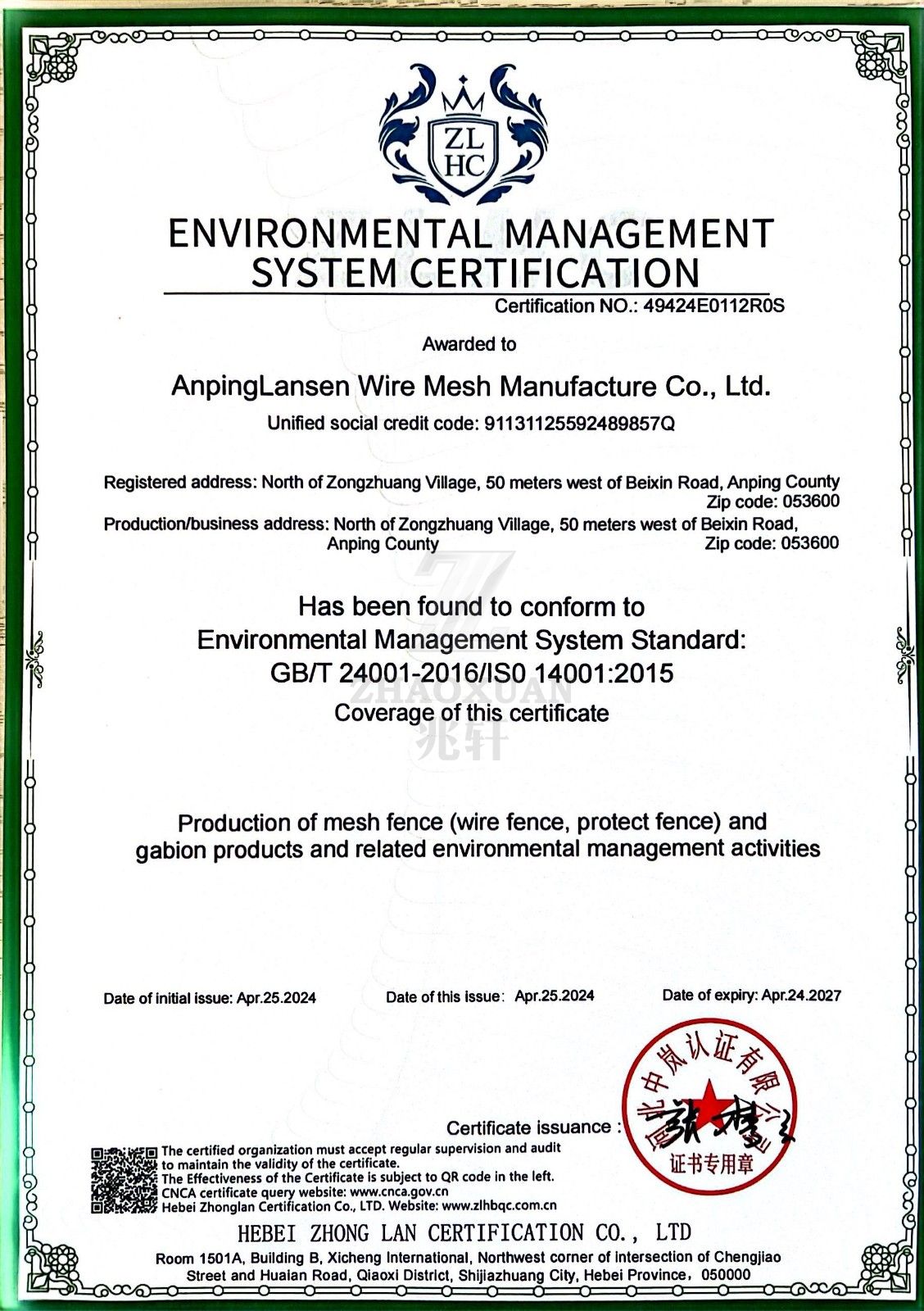

HEBEI ZHONG LAN CERTIFICATION CO.LTD
Product Description
Surface Treatment | Mesh Size | Mesh Wire | Selvedge Wire | Lacing Wire |
Heavy Hot dipped galvanized | 60×80 | 2.0mm/3.0mm | 2.8mm/3.8mm | 2.8mm/2.0mm |
80×100 | 2.2mm/3.2mm | 3.0mm/4.0mm | 2.2mm/3.2mm | |
100×120 | 2.2mm/3.2mm | 3.0mm/4.0mm | 2.2mm/3.2mm | |
120×150 | 2.2mm/3.2mm | 3.0mm/4.0mm | 2.2mm/3.2mm |
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.
| 格宾网尺寸 Size | 备注 Notes | 公差范围 The tolerance | |||
| 长(m) | 宽(m) | 高(m) | 隔片数量(unt | 体积(m³) | 长k3% 宽k5% 高 ： 5 % |
| 2.00 | 1.00 | 0.30 | 1 | 060 | |
| 3.00 | 1.00 | 0.30 | 2 | 090 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
| 表面处 理Surface Treatment | 网孔 Mesh Size | 网丝 Mesh Wire (mm) | 边丝 Selvedge Wire (mm) | 绑丝 Lacing Wire (mm) | ||||
| Heavy Hot dipped Galvanized or Golfan galvanized (5%or 10% Aluminium + Zinc) | 60×80 | 2.0-2.2mm | 2.8-3.0mm | 1.8-2.0mm | ||||
| 80×100 80×120 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
| 100×120 100×150 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||
| 120×150 | 2.2-2.7mm | 3.0-3.4mm | 2.2mm | |||||

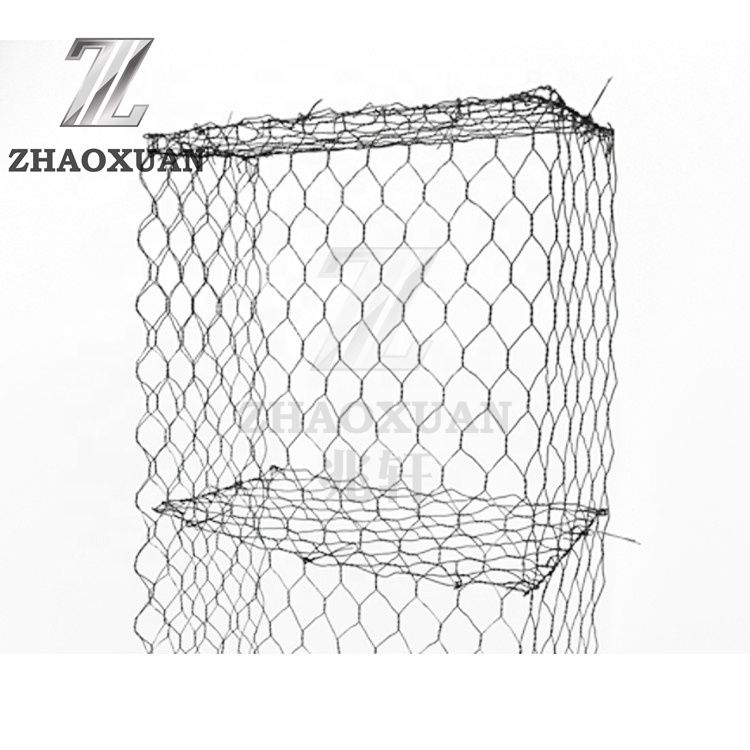

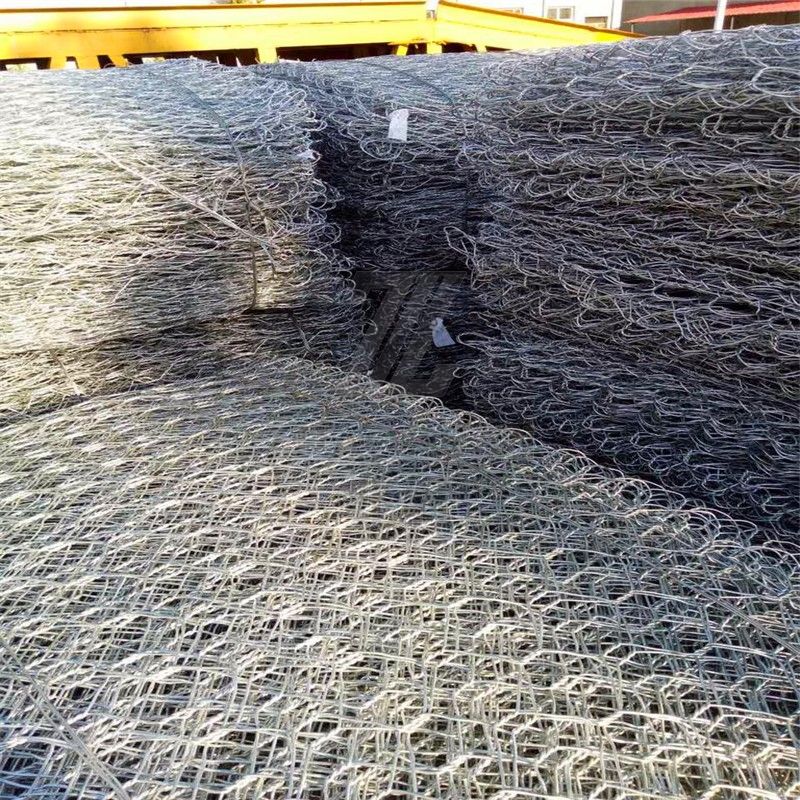

Gabion Cages(Boxes)are made of hexagonal Galvanized/PVC/Zine coatede double-twised mild steel wire mesh. Gabion boxes shall be supplied in various lengths,widths and heights.In order to strengthen the boxes,all the edged of the structure shall be selvedged with wire of bigger diameter.
Rockfall Nets
Rock-fall protection netting

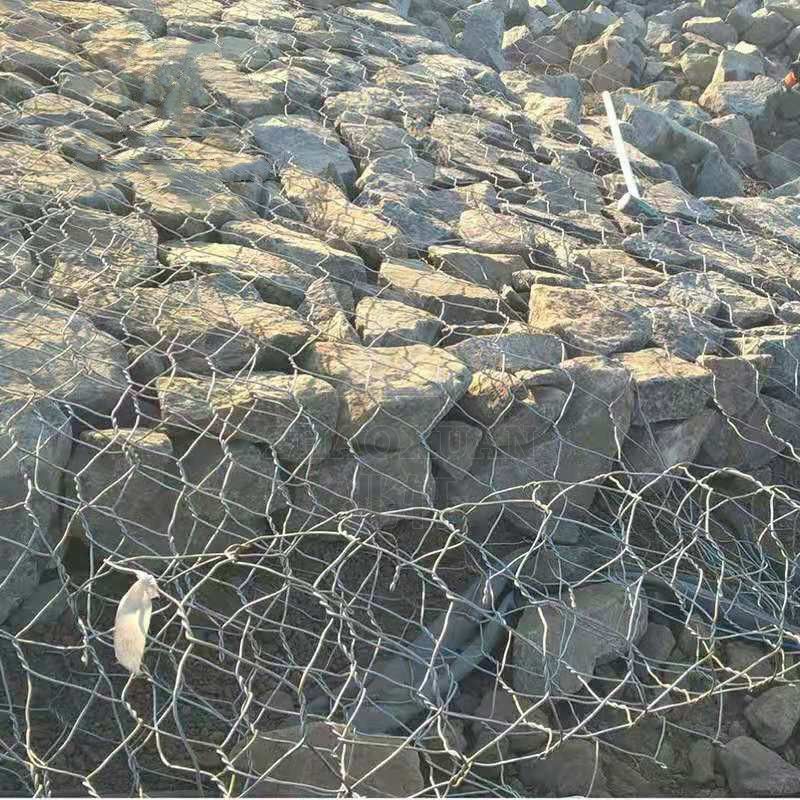

Rock fall netting is a steel woven hexagonal opening wire netting which is used to prevent rocks and debris from falling onto roads,railways and other structures.
The mesh is made of heavily zine coated or PVC+Heavily Zine coated double twisted steel woven wire. Due to the characteristics of double twist, the steel wire netting can withstand the force of falling rocks without unraveling in the event of wire breakage.

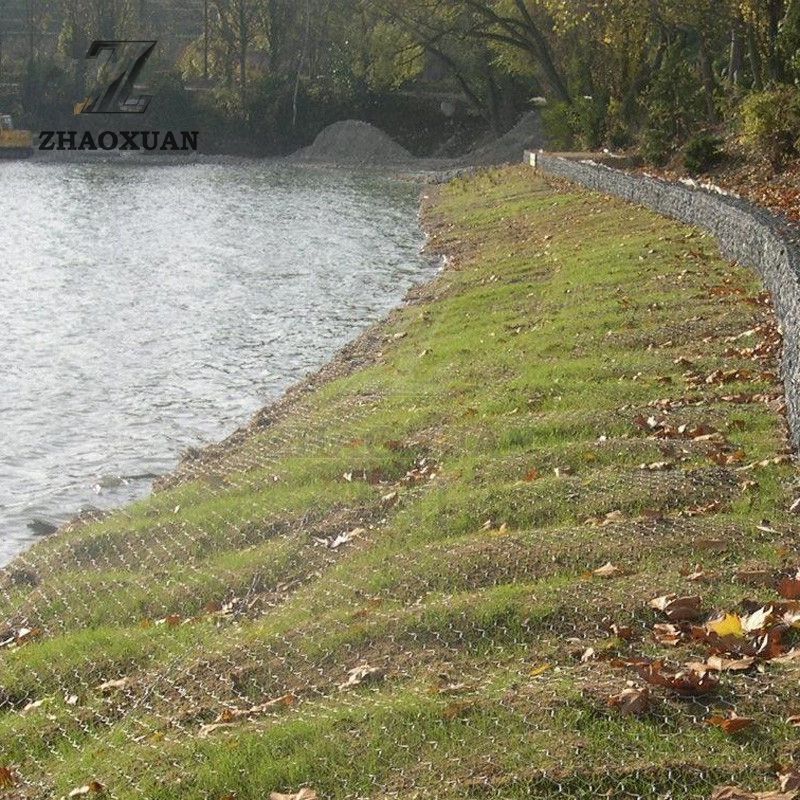

River Gabion Mattresses
Gabion mattress can be made of hexagonal double-twisted mild steel wire mesh. Mattresses can be supplied in various length, widths and height. The tolerances d mattress'dimensions are ‡ 5% in length, + 5% in width and + 5% in height. In order to strengthen the mattresses,all the edges of the mattress are selvedged with a wire of greater diameter.

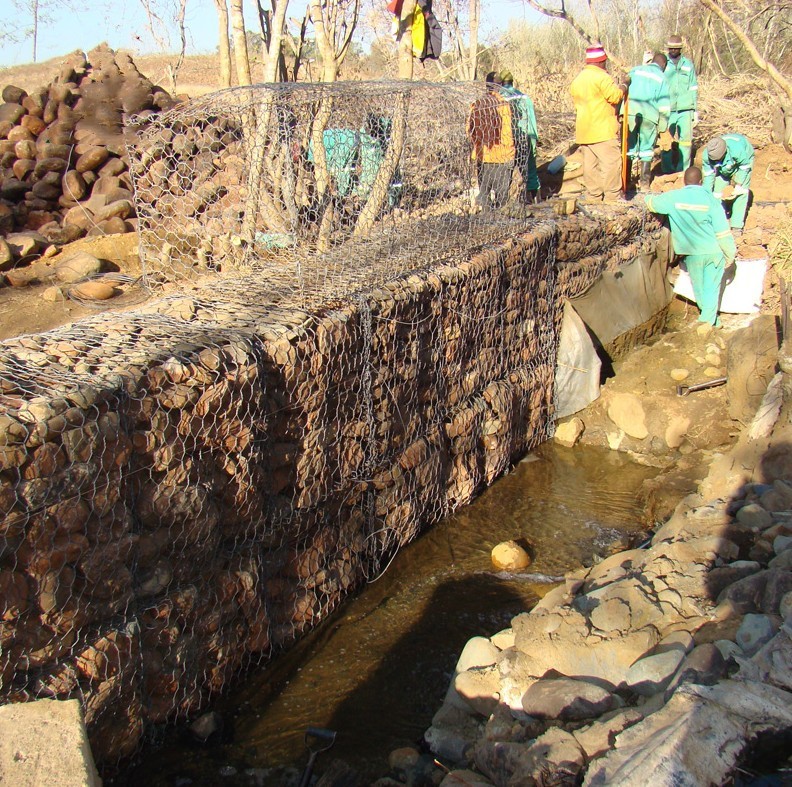

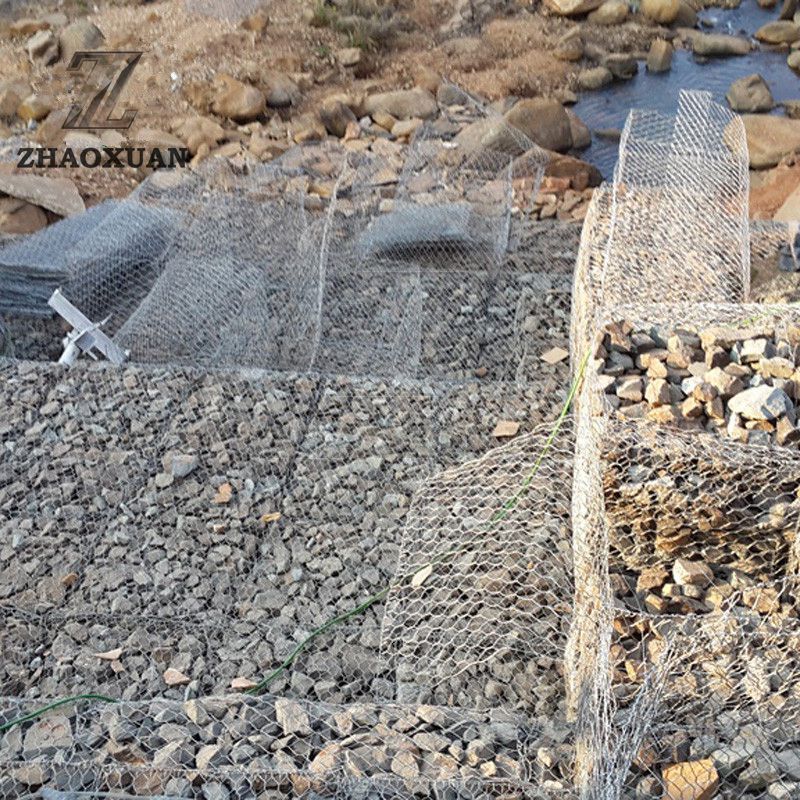

The river mattress is a structure made of hexagonal double twisted wire mesh. River mattresses are filled with stones at the project site to form flexible and permeable,monolithic structures such as river bank protection and channel linings for erosion control.
Surface treatment of gabion mattress: The woven steel wire used to manufacture the mattress is heavily zinc-coated soft temper steel.
CONFIGURATION CHARACTERISTIC:
1. Great Perviousness: keep the hillside and the seaside steady.
2. Great Pliability: No connection aperture and to be provided with tractility.
3. Great Anti-corrosion: The heavy galvanized surface and or PVC/PE coated are able to against the corrosion strongly.
4. Resist the scour: to be suitable for seaside and slope defend project.
5. Holistic capability: This cages are perfect to others, it doesn't leave the aperture when constructed in the huge quantity.
6. Easy to Construct: Don't need water, concrete with moulding board, no need electric power also.
7. Application Better: easy to pack and load. It could be packed according to the design requests. Such as according to the shape of Hillside, Shore&bench, and Dike.
8. Economical: use local stone, not need any concrete.
9. Keep entironment: the stone should be filled with soil finally(contrived or natural).
The plant can grow in it. So it could keep the water and soil very well, and beautify the environment.
Application
Strengthening the stability of the river beds;Protecting riverbeds from being washed away;Providing the prefixed value of coarseness modulus of river banks;Protecting the trees and zoology of slopes and banks.
