Economical 3D Curved Wire Mesh Fence

Zhaoxuan Economical 3D curved wire mesh fence features:

1. Economical: 3D curved wire mesh can reduce the wire's diameter by using bends, and the fastness of the panel won't be debase,then cost can be reduced.
2. Easy Installation: The modular fence panels design ensures a quick and straightforward installation process, saving time and labor.

3. Flexibility: Our 3D curved wire mesh fence's size, and surface treatments can be produced as customer's requests.

4. Stability: The unique 3D curved design enhances the strength and stability of the fence, providing superior protection.

5. Durability: By using high-quality iron rod raw material and professional surface treatment, we ensure the durability of our economical fence.

Inquire Now Next Product

Product Description

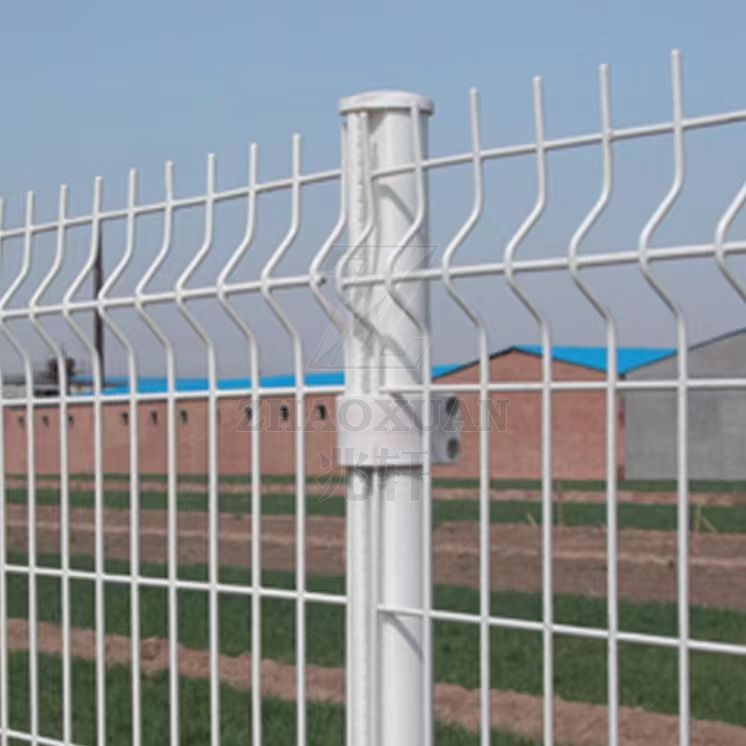

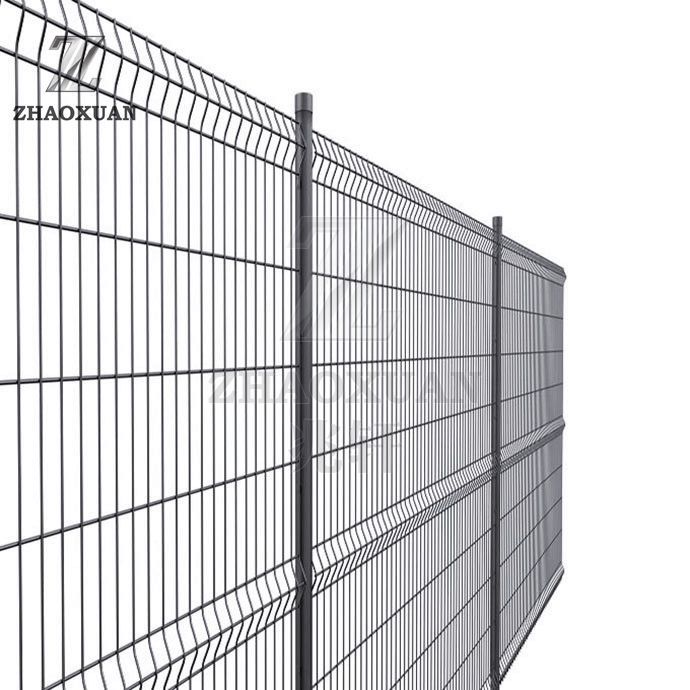

XLF-02 Economical 3D Curved Wire Mesh Fence

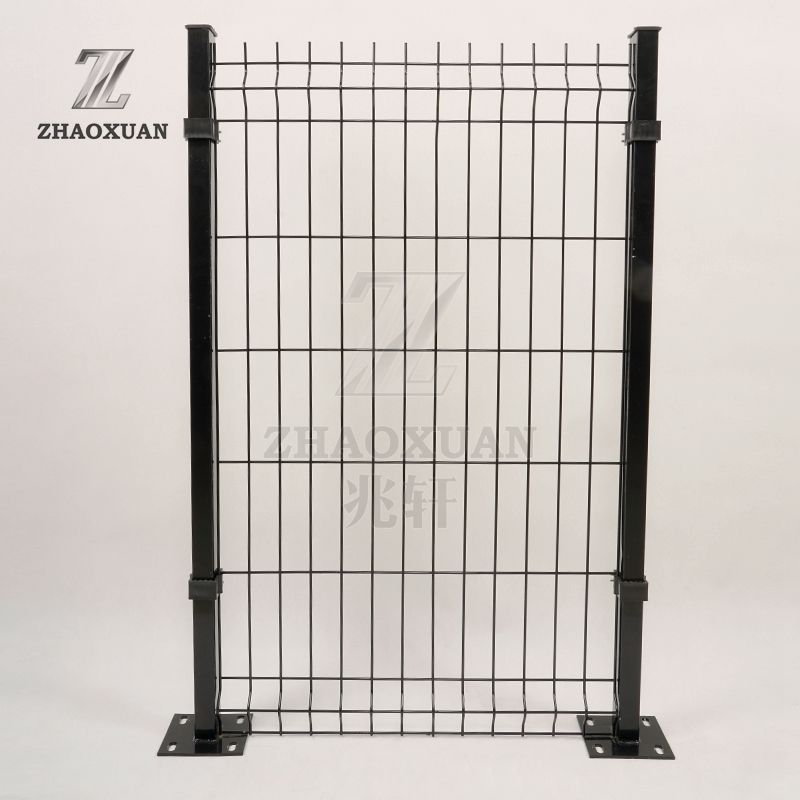

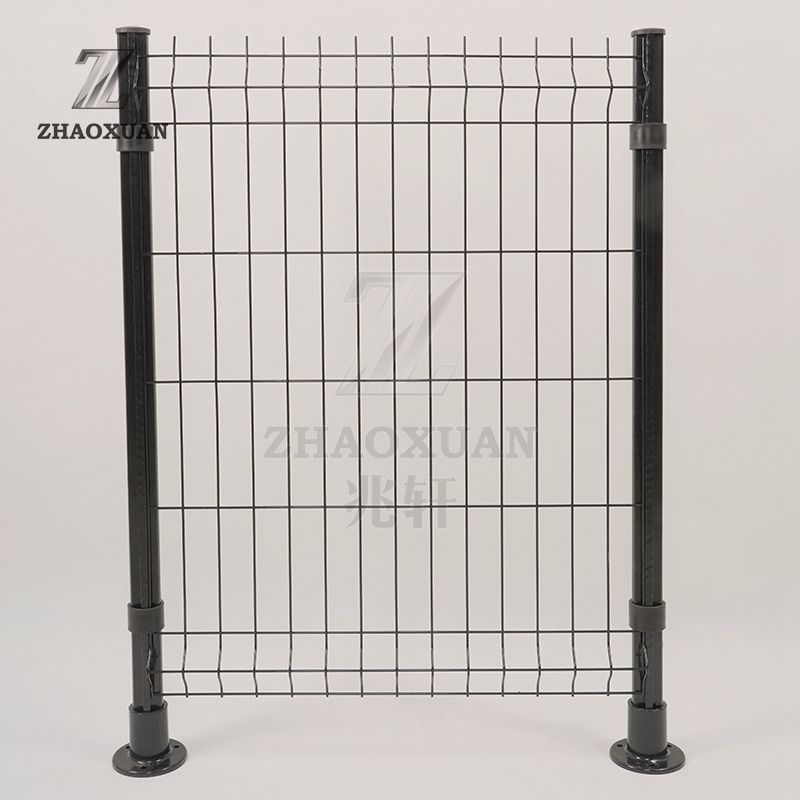

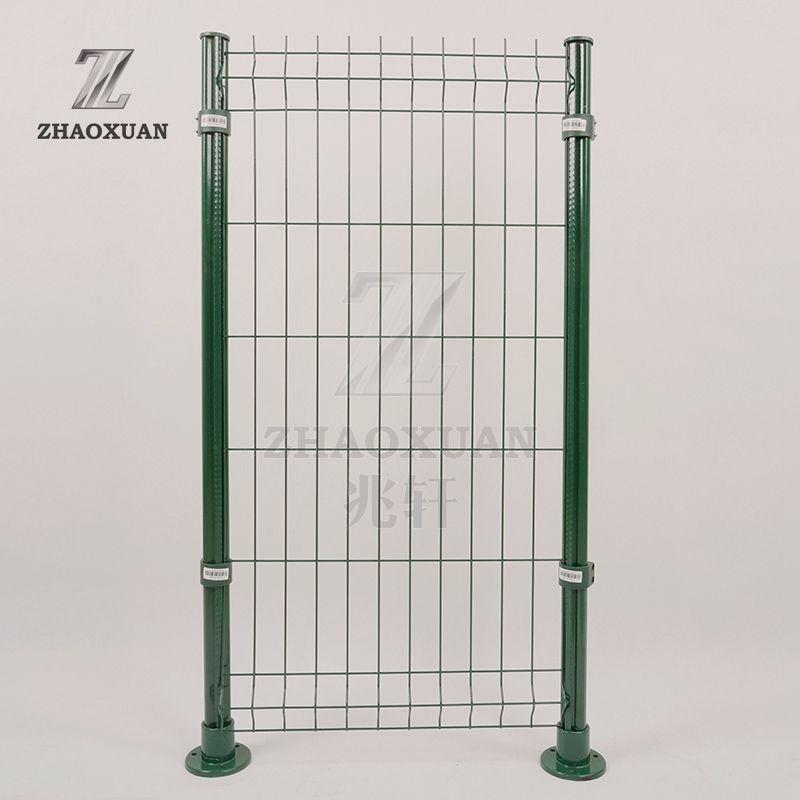

Fix I: Bury our economical fence in the ground	Fix II : Install our economical fence with bottom base or feet

Specifications N0.1	Wire Diameter (mm)	Mesh Size (mm)	Panel Width (m)	Panel Height (mm)	Fold Number	Post 's height (mm)		Post Model
						Fix I	Fix II
	3.5 4.0 4.5 5.0	10050 10055 12055 15055	2.0 2.255 2.5 3.0	800	2	1200	900	XLFP-03 mushroom shape post
				1000	2	1400	1200
				1200	2	1600	1400
				1500	3	2000	1700
				1700	3	2200	1900
				2000	4	2500	2200

Specifications No.2	Wire Diameter (mm)	Mesh Size (mm)	Panel Width (m)	Panel Height (mm)	Fold Number	Post 's height (mm)		Post Model
						Fix I	Fix II
	4.0 4.5 5.0 5.5 6.0	20050 20055 20060 20065	2.0 2.255 2.5 3.0	830	2	1200	900	XLFP-04 square /rectangle post
				1030	2	1400	1200
				1230	2	1600	1400
				1530	2	2000	1700
				1730	3	2200	1900
				1830	4	2300	2000
				2030	4	2500	2200
				2230	4	2700	2400
				2530	5	3000	2600
Surface treatment					Min.	Max.
	Electric galvanization				20g/㎡	60g/㎡
	Hot dipped galvanization				35g/㎡	700g/㎡
	Powder spray coating				100μm	120μm
	PVC/PE dipped coating				400μm	600μm
Colors	Every RAL color desired (Popular ones: Dark Green RAL6005 , Pure White RAL9010 , Stone Grey RAL7030 , Jet Black RAL9005 , Anthracite Grey RAL7016)

Our economical 3D curved wire mesh fence is welded by high quality cold draw steel wire,which after hot dipped galvanized or it is welded with cold draw wire directly, then to be galvanized. After galvanization,powder primer,and powders top coating,it can resist the corrosive and ultraviolet radiation very strongly. Also,it can use PVC dipped coating or PE coating after galvanization.

Economical 3D Curved Wire Mesh Fence

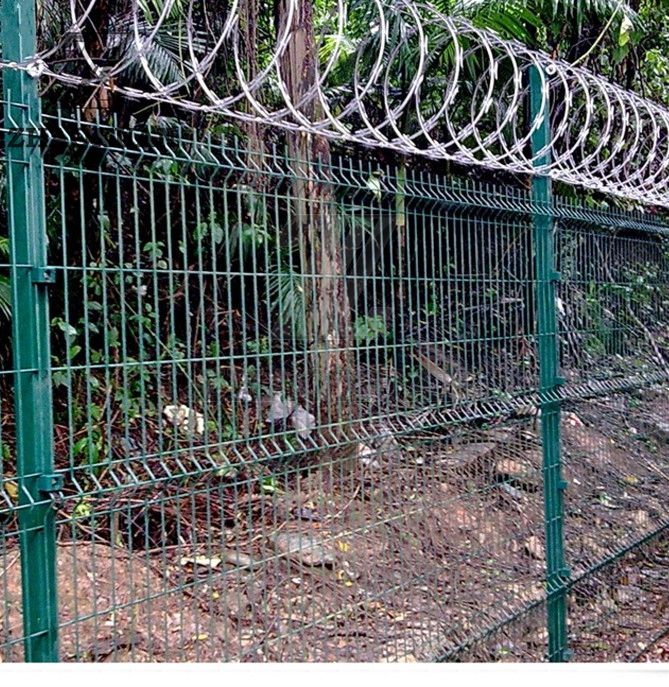

Using bending design, Our economical 3D curved wire mesh fence has better structural and impact resistance. It usually has good weather resistance and corrosion resistance, and can maintain stable performance and a long service life under various harsh environmental conditions. Our economical 3D curved wire mesh fence panels are suitable for installation in various locations, such as hillsides, ramps, artificial garden soil, urban concrete surfaces, apartment balconies, and more.Additionally, razor wire can be installed on top of our economical 3D curved wire mesh fence to further enhance your security.

Economical 3D Curved Wire Mesh Fence

Our economical 3D curved wire mesh fence panels can be used for :

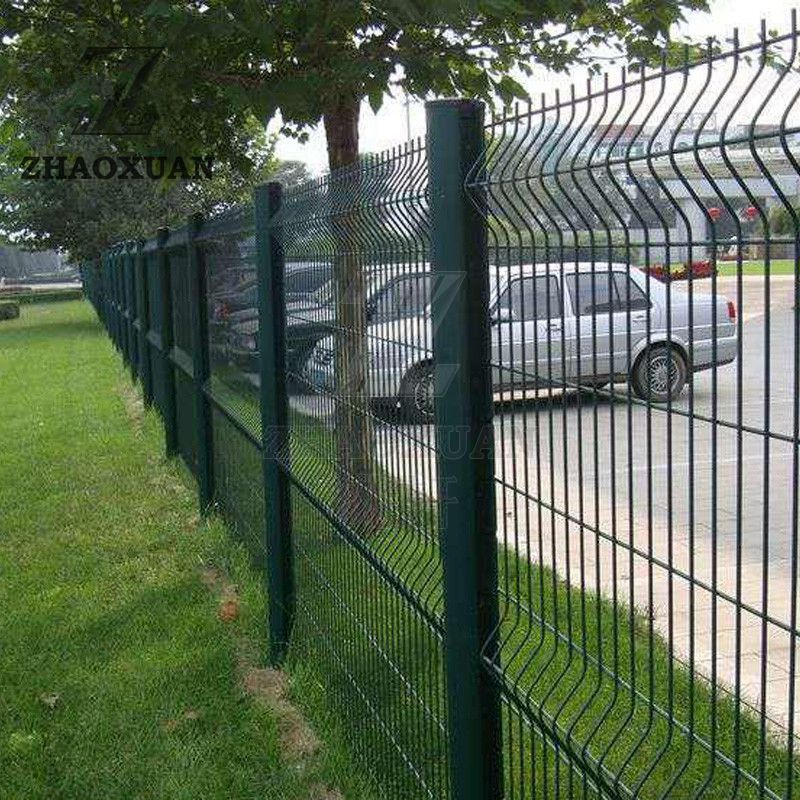

1. Residential fence : Providing privacy and security for homes, gardens and farms.

2. Commercial fence : Enhancing the safety and appearance of business premises.

3. Public fence : Offering a decorative and functional solution for public spaces,such as highway fence, railway fence, airport fence, park fence and son on.

Packing of our economical 3D curved wire mesh fences' panels and posts:

1. It has metal plate under the plastic bandage to reduce the pressure of 3D fence panels;

2. It has wooden plate at the top of 3D fence panels which can protect the fence panels avoid being crushed by other pallets.
