Chian Link Fence

Material: Q195 or Q235 Pipe

Certificate: SGS, ISO9001, ISO14001, ISO45001, BV

Brand: Zhaoxuan

Manufacturer: Anping Lansen Wire Mesh Manufacture Co.,Ltd. (our own factory)

Origin: China


Share

Product Description

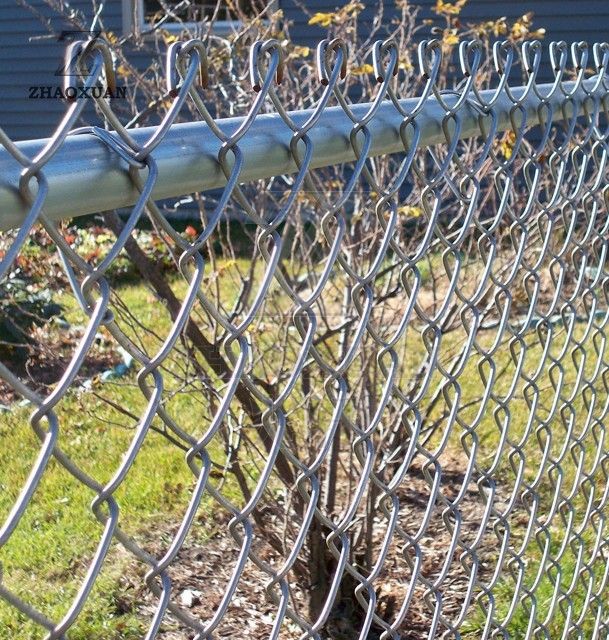

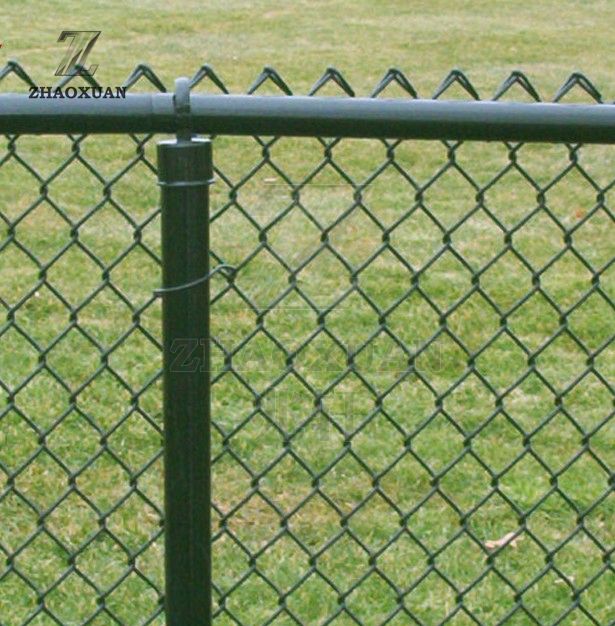

Chian Link Fence

Chain link fence — also known as cyclone, hurricane, or diamond mesh fencing — is a woven structure primarily made from galvanized or PVC-coated steel wires.

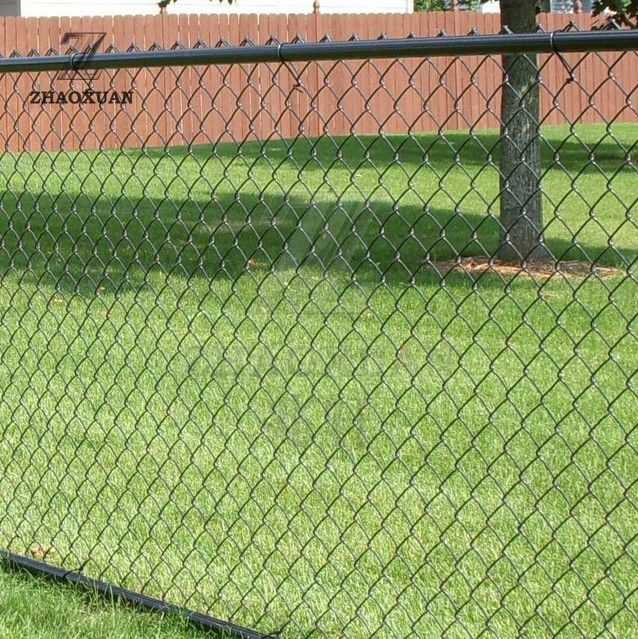

The interlocking wires create distinctive diamond-shaped patterns, making this fence both an affordable and versatile choice for residential and commercial use. You'll often find shorter heights selected for homes where they blend seamlessly into neighborhoods, while taller versions are favored by businesses seeking enhanced security.

This practical fencing solution is widely used along roads, railways, and airports, as well as for protecting equipment and facilities. It's also a popular choice for creating safe enclosures — whether for family pets in the backyard or animals in zoo habitats. While galvanized silver and forest green are the most common globally available options, many manufacturers offer custom colors to match your specific needs.

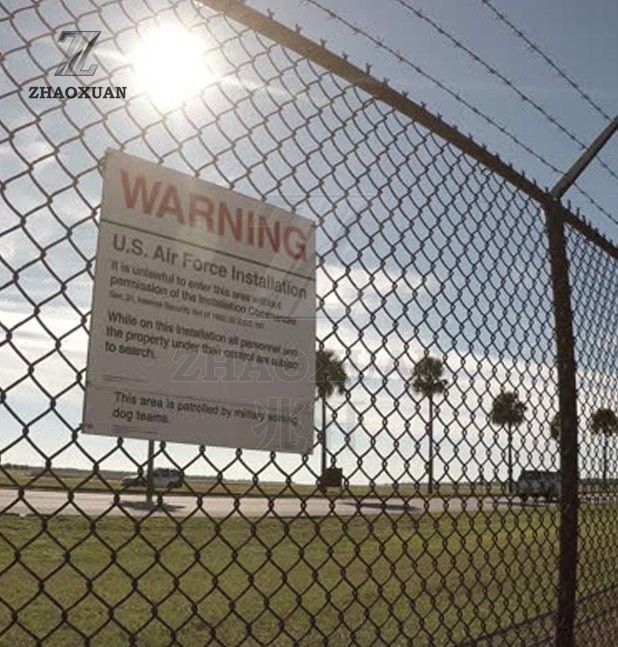

  • Barbed wire can be installed on the top to futher improve its security and protection.

  • Zhaoxuan provides a complete setof fence, including matching accessories as well as technical guidance.

  • Corrosion resistance, galvanized coating, pvc coating, can effectively prevent the fence oxidation rust.


Specification:

  • Characteristic

Using High quality Iron Rod as raw material, Galvanized, or Galvanized and PVC/PE coating, it can resist the corosive and ultraviolet radiation very strongly. The thickness of PVC powders coating usually can reach above 1.0mm. The fence obtains very strong powers to resist the concussion. Generally, the smaller the diamond size, the stronger the fence are. The ends of the fence usually have two kinds. One is knuckles barb, the other one is twisted barb.

  • Popular Specification

Wire DiameterMesh SizeLengthHeightPost's HeightSuitable Post

1.8mm

2.0mm

2.5mm

3.0mm

3.5mm

4.0mm

4.5mm

35*35mm

40*40mm

50*50mm

60*60mm

75*75mm

100*100mm

10m

15m

20m

25m

30m

or customized

1.0m

1.5m

Round Tubes(Dia 40,48,50,63,76mm)

Mushroom Post

Y Post

T Post

Or with the frame to

 install with the post.

1.2m1.7m
1.5m2.0m
1.8m2.3m
2.0m2.5m
2.5m3.0m
3.0m4.0m

4.0m

5.0m
5.0m6.0m


Our Features:

  • Design Advantage:

The wire are linked, it is easy to produce any width and length. The Max. Height can till 5m or more, the length can be adjusted as the need. This kindn of mesh is not easy to climb, and suitable for using large quantity. The post used is very portable. It reduces the cost of the whole fence and can last long time.

  • High Anti-Corrosion:

Using high quality iron rod as raw material, Galvanized, or Galvanized and PVC/PE coating, it can resist the corrosive and ultraviolet radiation very strongly. At the top, it can use barbed wire or razor wire, to enlarge the safety.



Surface Treatment
Min.
Max.
Electric Gal.
15g/m2
25g/m2
Hot Dipped Gal.
30g/m2
366g/m2
PVC/PE Coating
400 microns
600 microns

  • Choice of Color

Only Galvanized

Dark Green RAL6005

Jet Black RAL9005

Application

  • Range Of Application:

Playground(tennis ground, football ground, basketball ground)

Building Site

Courtyard, Park, Lawn, Forest Protecting

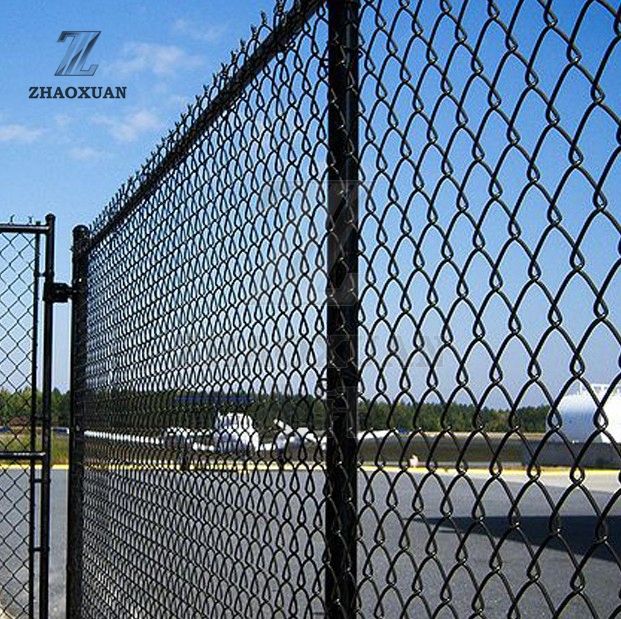

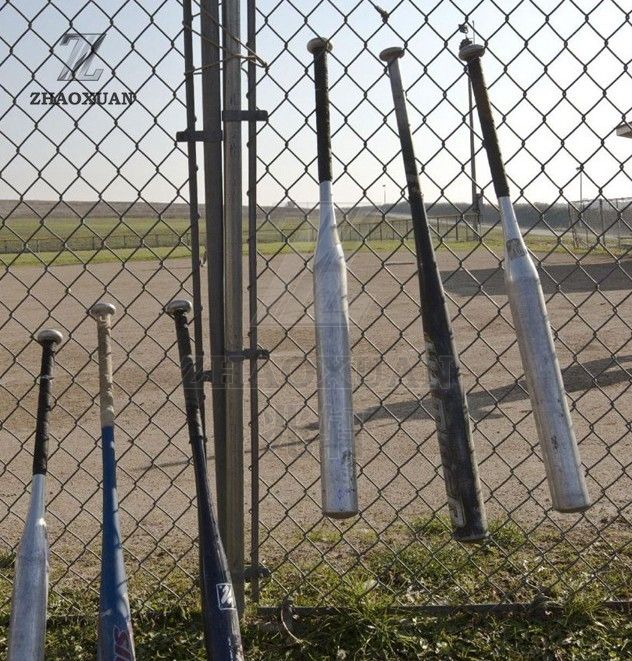

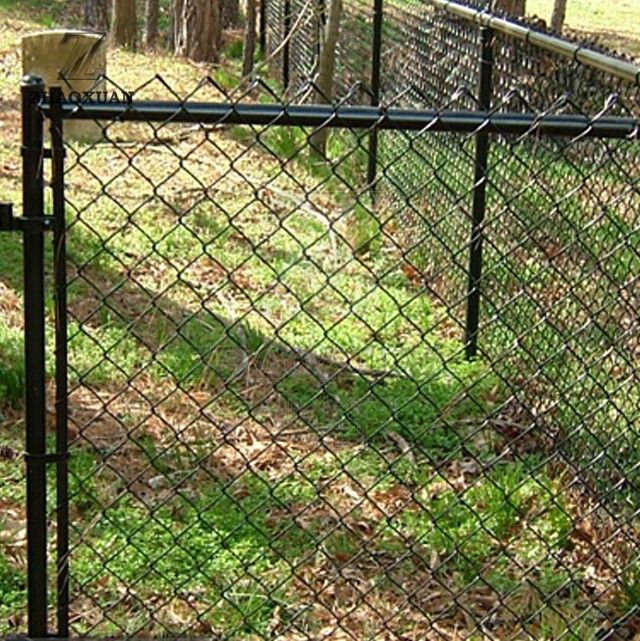

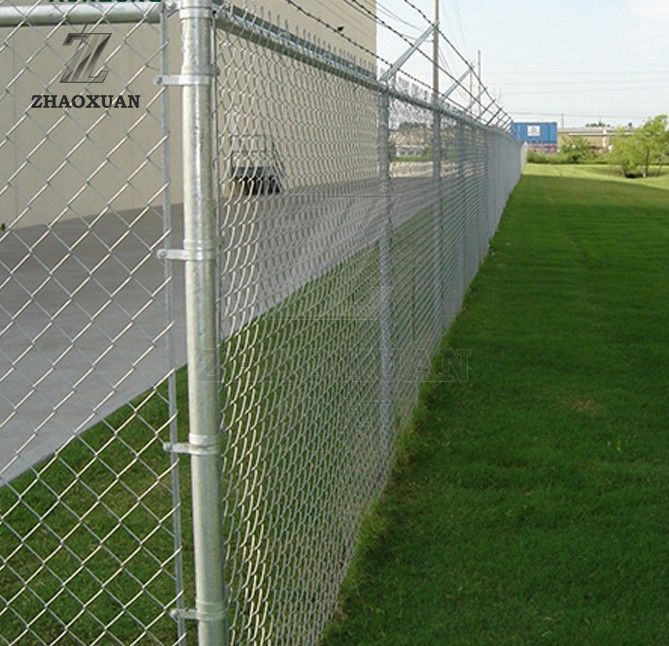

Chian Link FenceChian Link Fence

Chian Link FenceChian Link Fence

Chian Link FenceChian Link Fence


  • Company Information

Hebei Zhaoxuan Trading Co., Ltd.

1. Manufacturer

2. Superior quality & Good service

3. Fast delivery & Competitive price

4. Special size is available

5. Welcome customers' inquiry!

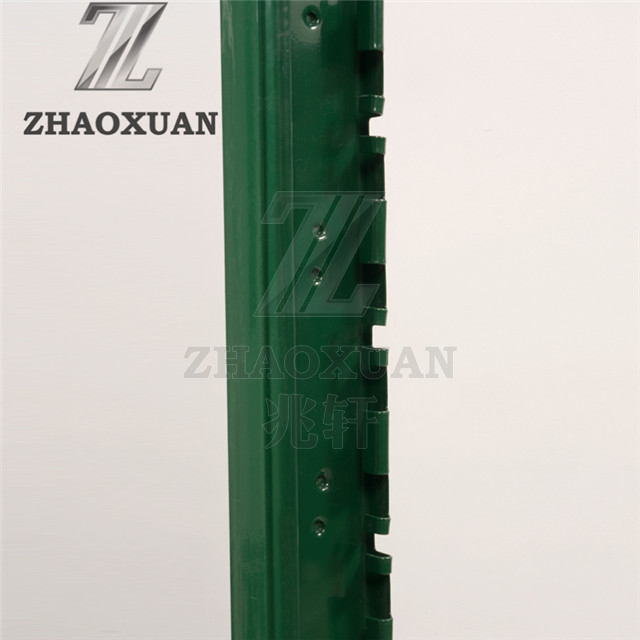

H Shape Post Patent Product

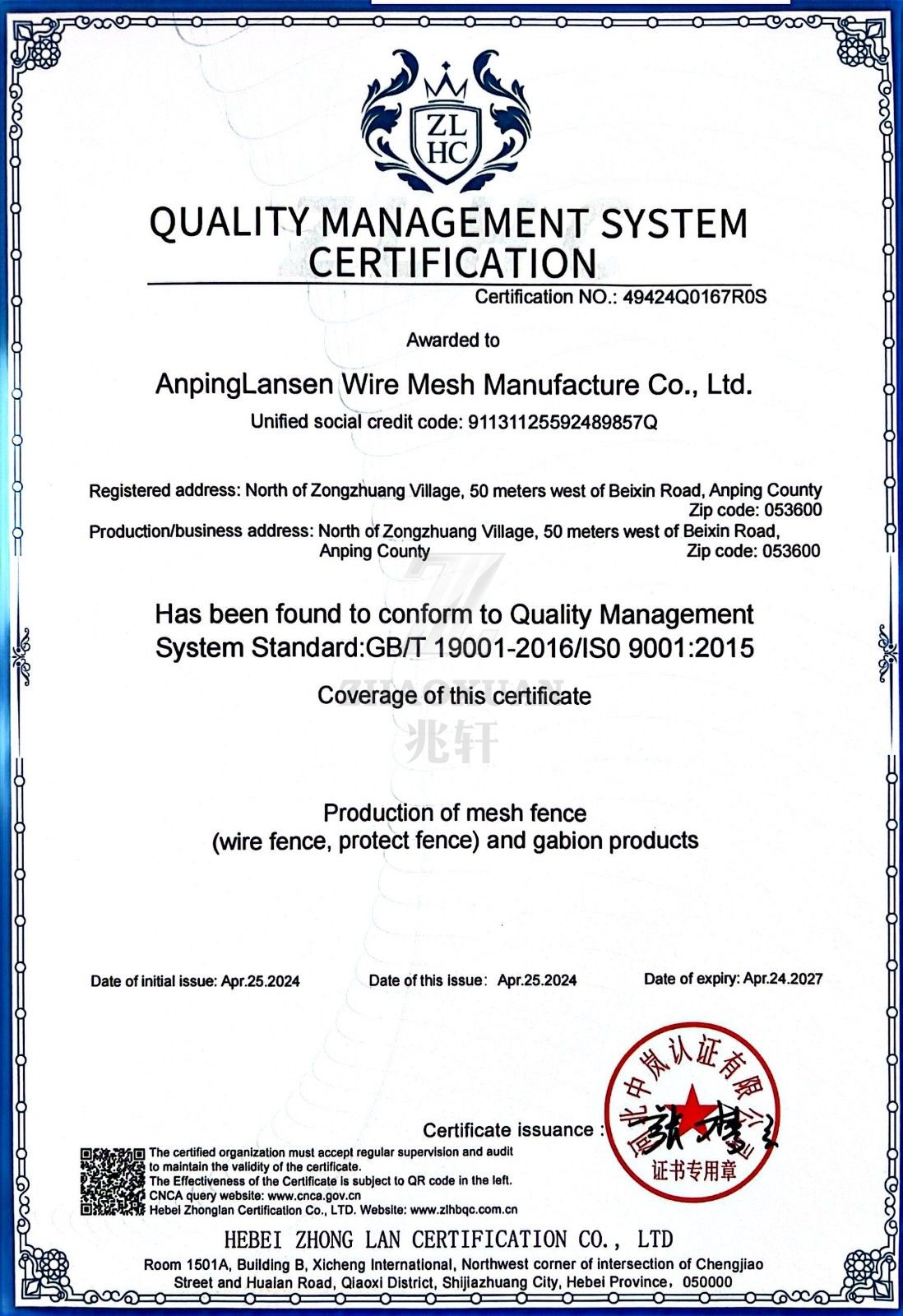

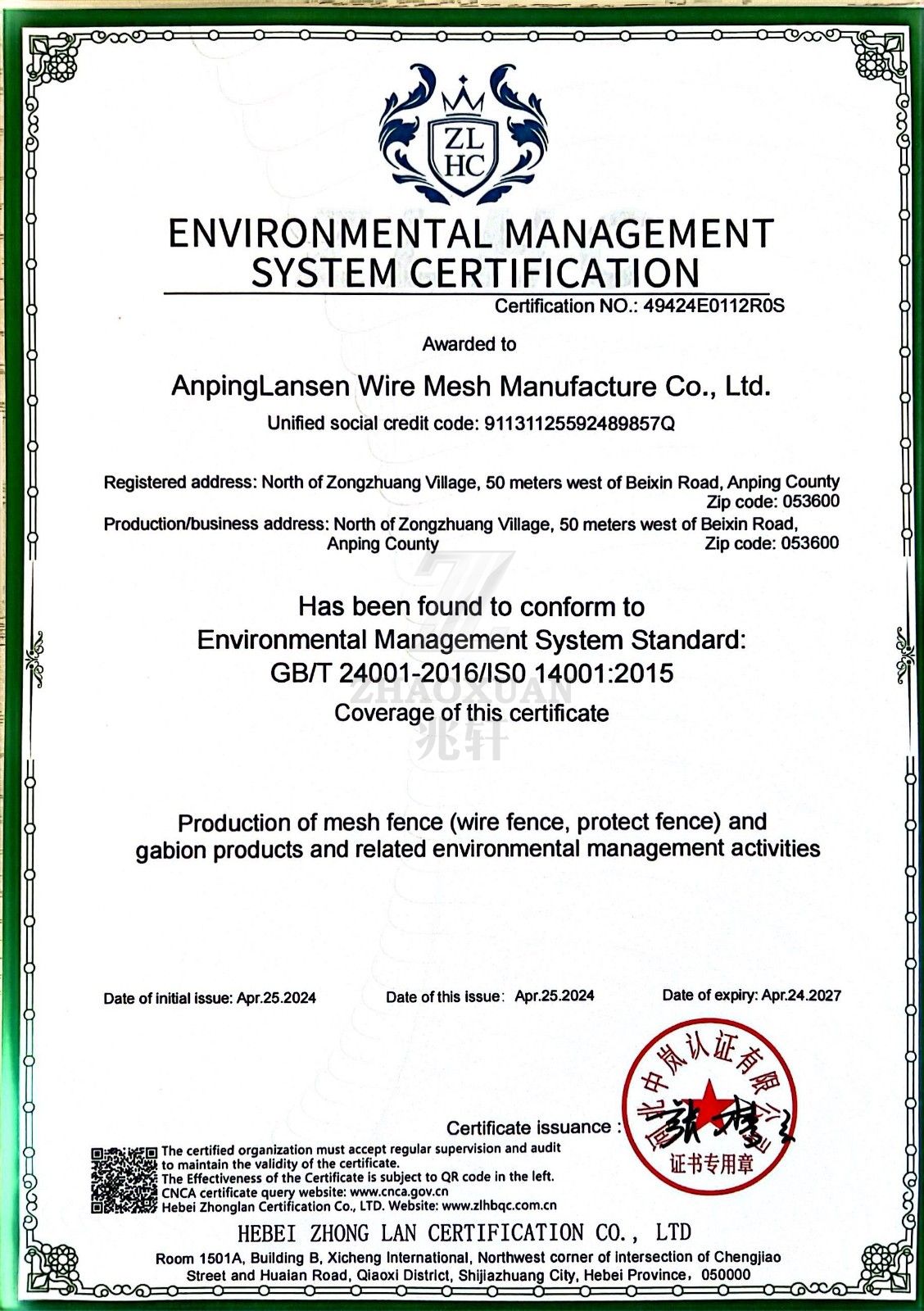

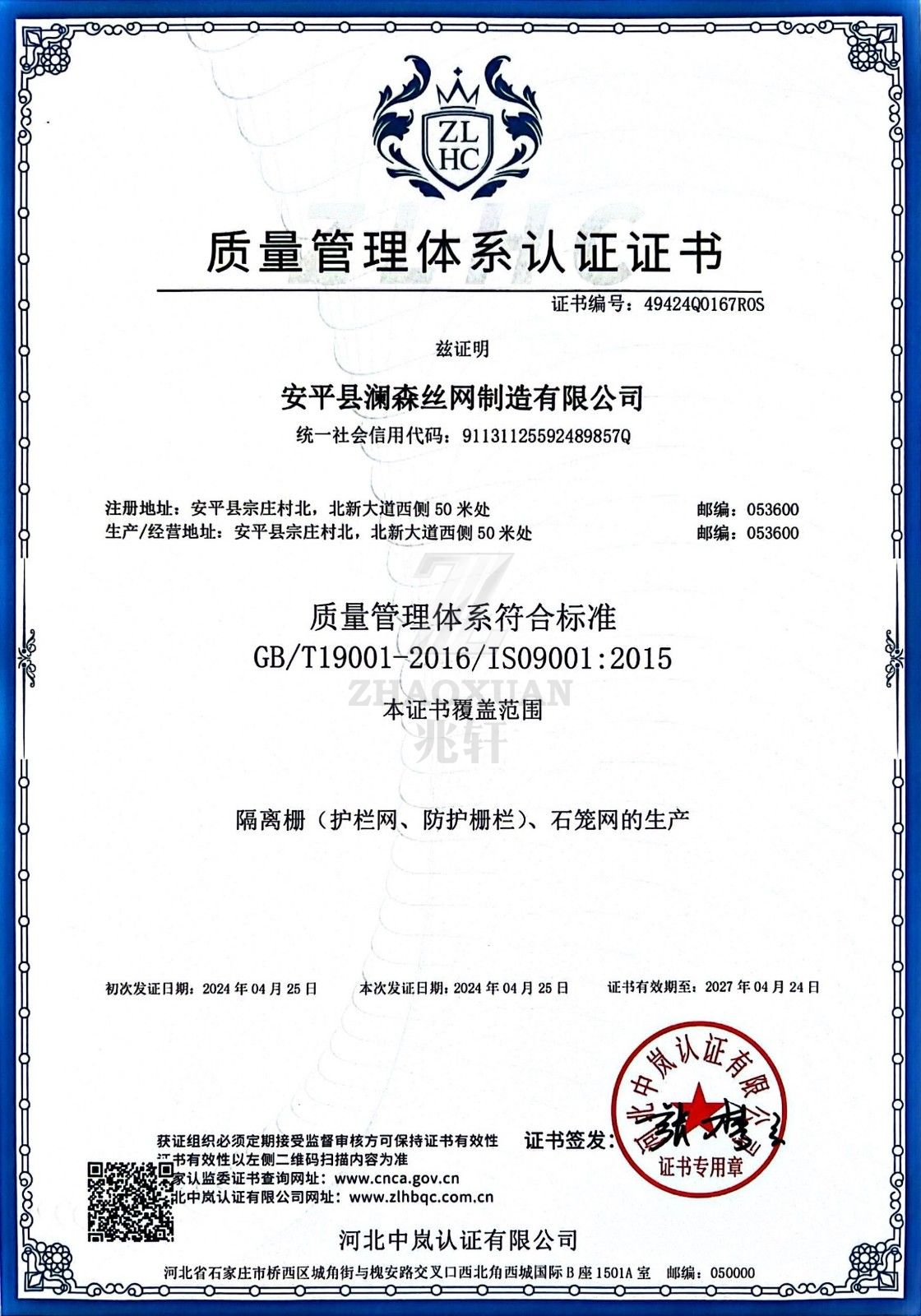

  • Certificate

H Shape Post Patent ProductH Shape Post Patent ProductH Shape Post Patent ProductH Shape Post Patent ProductH Shape Post Patent ProductH Shape Post Patent Product

  •  Packaging  & Shipping

H Shape Post Patent Product
