Assembled Easily 3D Curved Wire Mesh Fence

Zhaoxuan 3D curved wire mesh fence features:
1. Durability: Made from galvanized steel, it offers exceptional rust resistance, making it ideal for various outdoor environments.

2. Security: The unique 3D curved design enhances the strength and stability of the fence, providing superior protection.
3. Easy Installation: The modular fence panels design ensures a quick and straightforward installation process, saving time and labor.

4. Flexibility: Our 3D curved wire mesh fence's wire size, mesh open and surface treatments can be produced as customer's requests.

5. Economical: 3D curved wire mesh can reduce the wire's diameter by using bends, and the fastness of the panel won't be debase,then cost can be reduced.

Inquire Now

Product Description

XLF-01 High Quality 3D Curved Wire Mesh Fence

Specifications	Wire Dia (mm)	Mesh Size (mm)	Panel Width (m)	Panel Height （mm）	Fold No	Post 's height （mm）			Post Model
	Wire Dia (mm)	Mesh Size (mm)	Panel Width (m)	Panel Height （mm）	Fold No	Fix I	Fix II	Fix Ⅲ	Post Model
				635	2	900	700	1000	XLFP-01 H Shape Post XLFP-03 Mushroom Shape Post XLFP-04 Square/ Rectangle Fence Post XLFP-05 Peach Shape Post
	4.0 4.5 5.0 5.5 6.0	20050mm 20055mm 20060mm 20065mm	2.0m 2.255m 2.5m 3.0m	835	2	1200	900	1200
				1035	2	1400	1100	1400
				1235	2	1600	1300	1600
				1435	2	1800	1500
				1535	3	1900	1600
				1635	3	2000	1700
				1735	3	2200	1800
				1835	3	2300	1900
				1935	3	2400	2000
				2035	4	2500	2100
				2235	4	2800	2300
				2435	4	3000	2500
Surface treatment					Min.	Max.
		Electric galvanization			20g/㎡	60g/㎡
		Hot dipped galvanization			35g/㎡	700g/㎡
		Powder spray coating			100μm	120μm
		PVC/PE dipped coating			400μm	600μm
Colors	Every RAL color desired (Popular ones: Dark Green RAL6005 , Pure White RAL9010 , Stone Grey RAL7030 , Jet Black RAL9005 , Anthracite Grey RAL7016)

Our 3D curved wire mesh fence is welded by high quality cold draw steel wire,which after hot dipped galvanized or it is welded with cold draw wire directly, then to be galvanized. After galvanization,powder primer,and powders top coating,it can resist the corrosive and ultraviolet radiation very strongly. Also,it can use PVC dipped coating or PE coating after galvanization.

Using bending design, Our 3D curved wire mesh fence has better structural and impact resistance. It usually has good weather resistance and corrosion resistance, and can maintain stable performance and a long service life under various harsh environmental conditions.

Our 3D curved wire mesh fence panels are suitable for installation in various locations, such as hillsides, ramps, artificial garden soil, urban concrete surfaces, apartment balconies, and more.

Our 3D curved wire mesh fence panels can be used for :

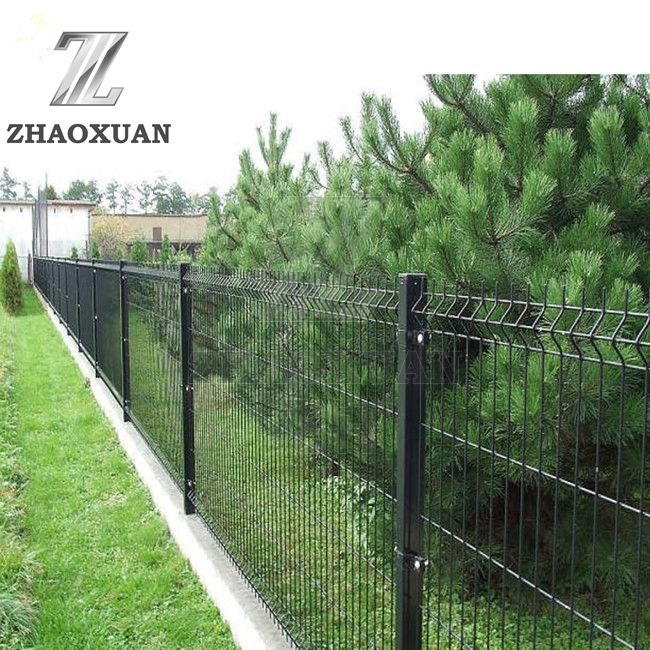

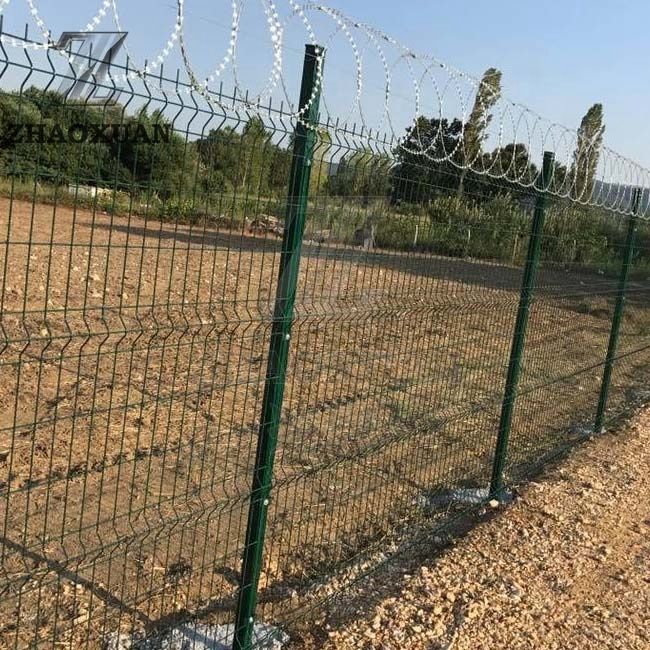

1. Residential fence : Providing privacy and security for homes, gardens and farms.

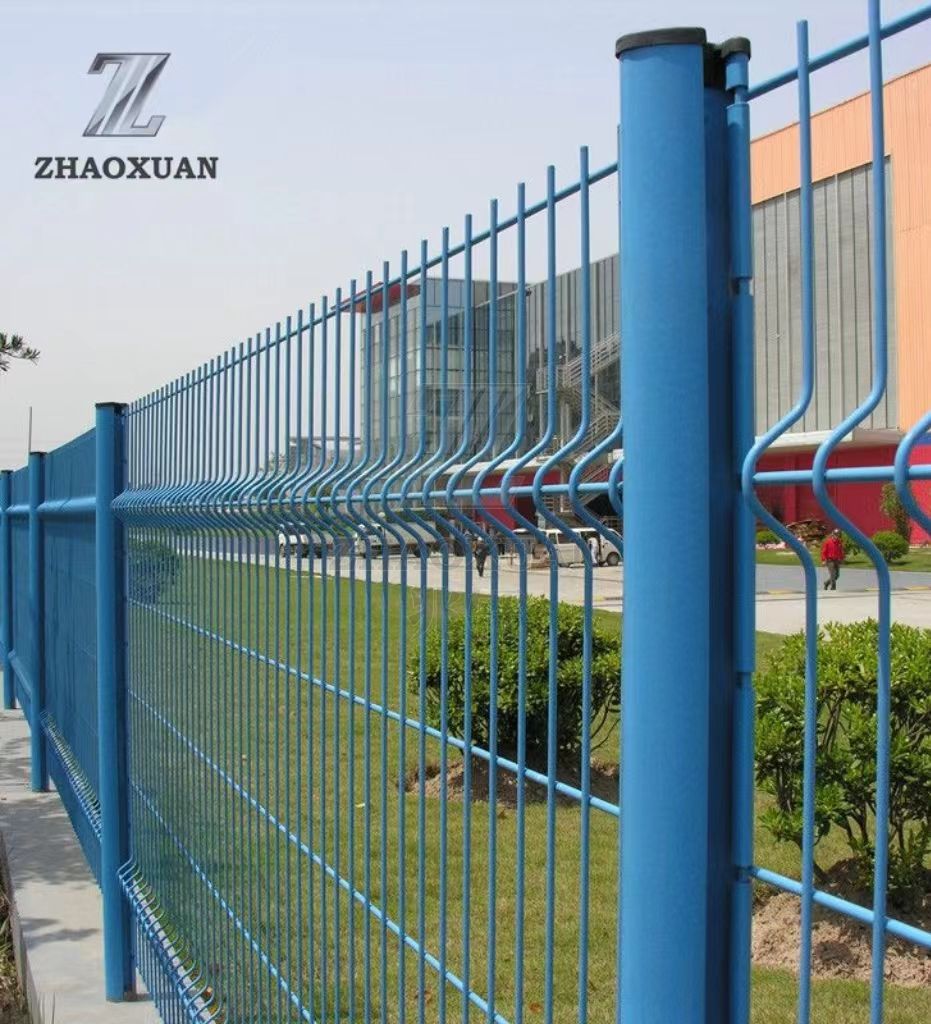

2. Commercial fence : Enhancing the safety and appearance of business premises.

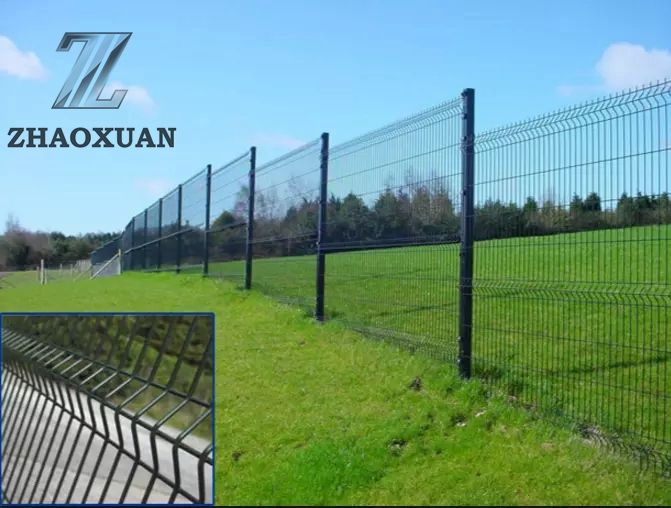

3. Public fence : Offering a decorative and functional solution for public spaces,such as highway fence, railway fence, airport fence, park fence and son on.

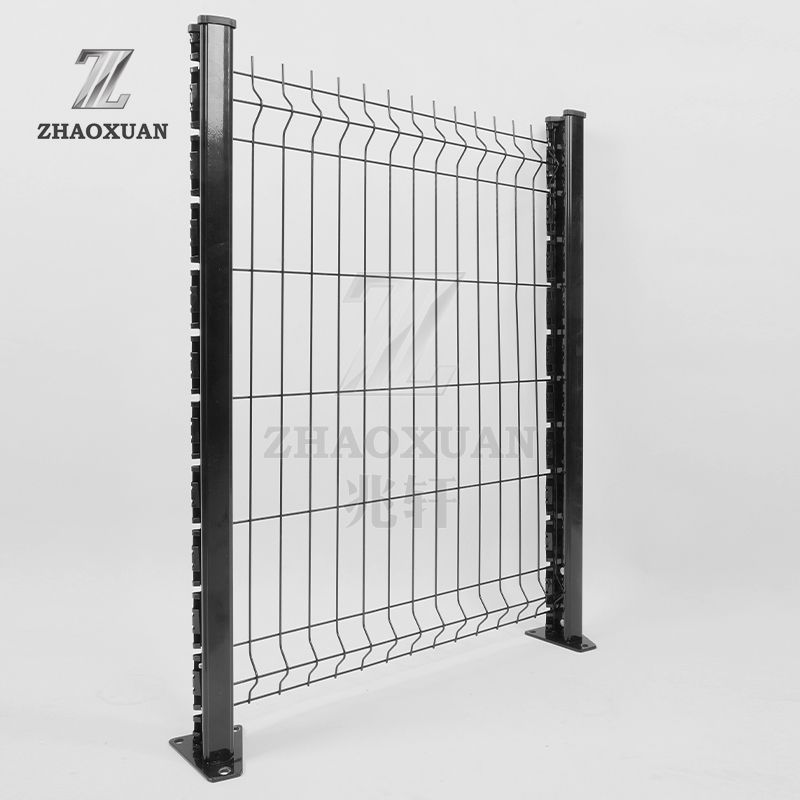

3D Curved Wire Mesh Fence Panel with H Shape Post	3D Curved Wire Mesh Fence Panle with Peach Shape Post

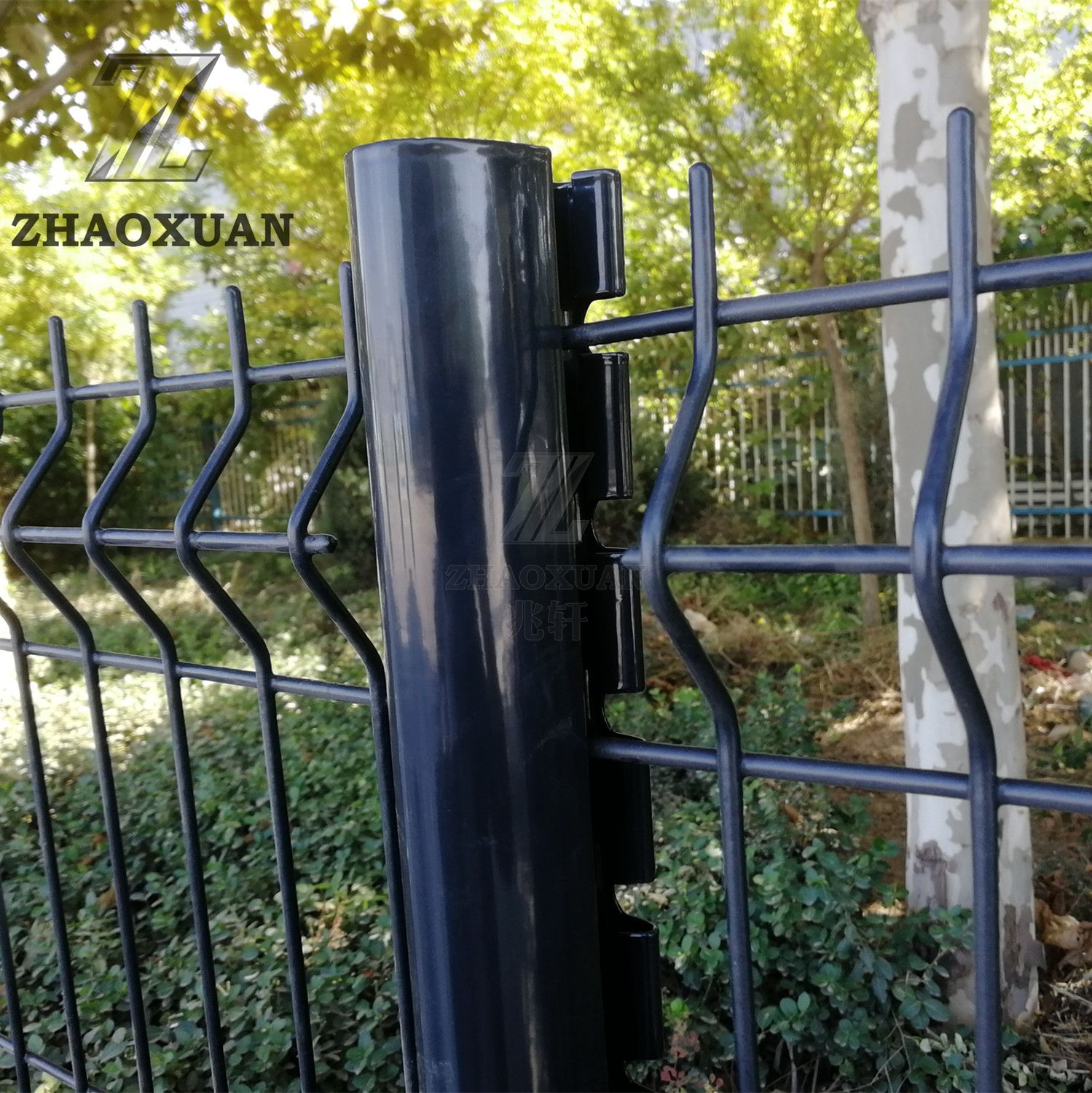

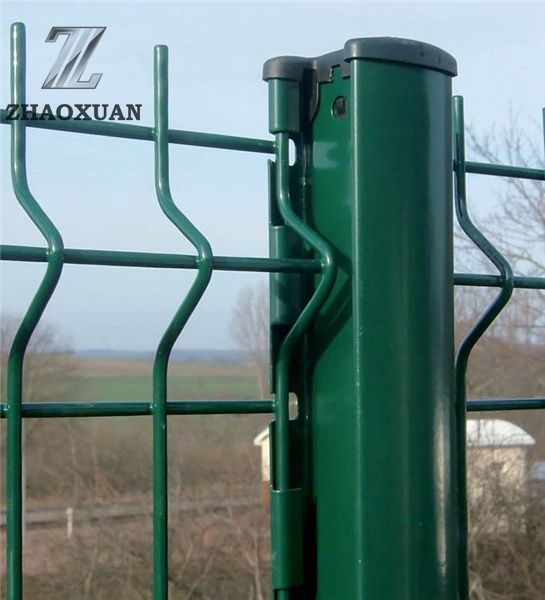

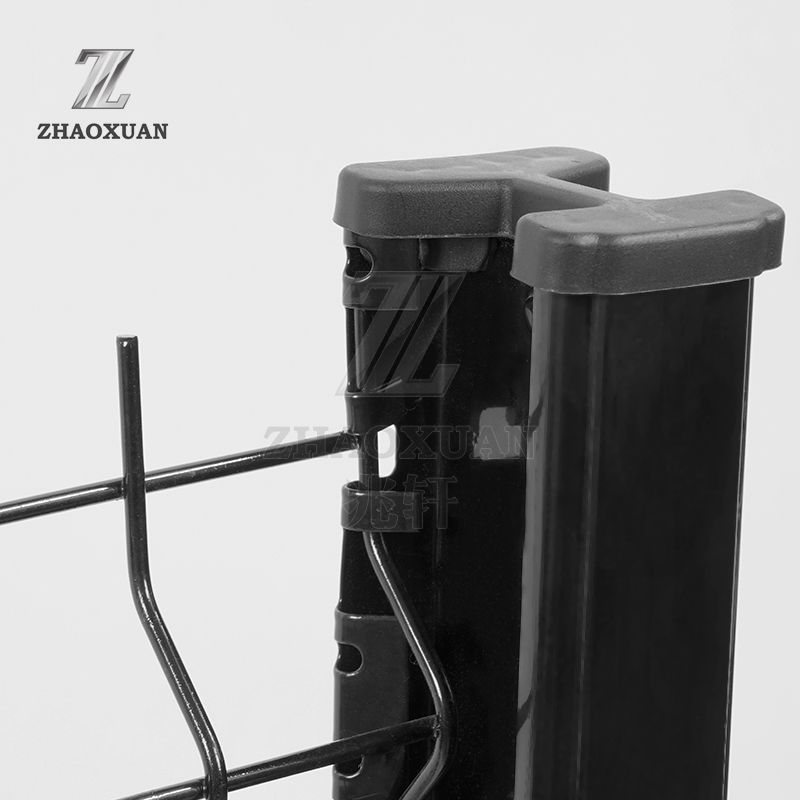

With groove design, the H shape post 3D curved wire mesh fence and peach shape post 3D curved wire mesh fence are very particular and fashionable.There are some pothooks on the fence post, the fence panel and post are jointed by the pothook.

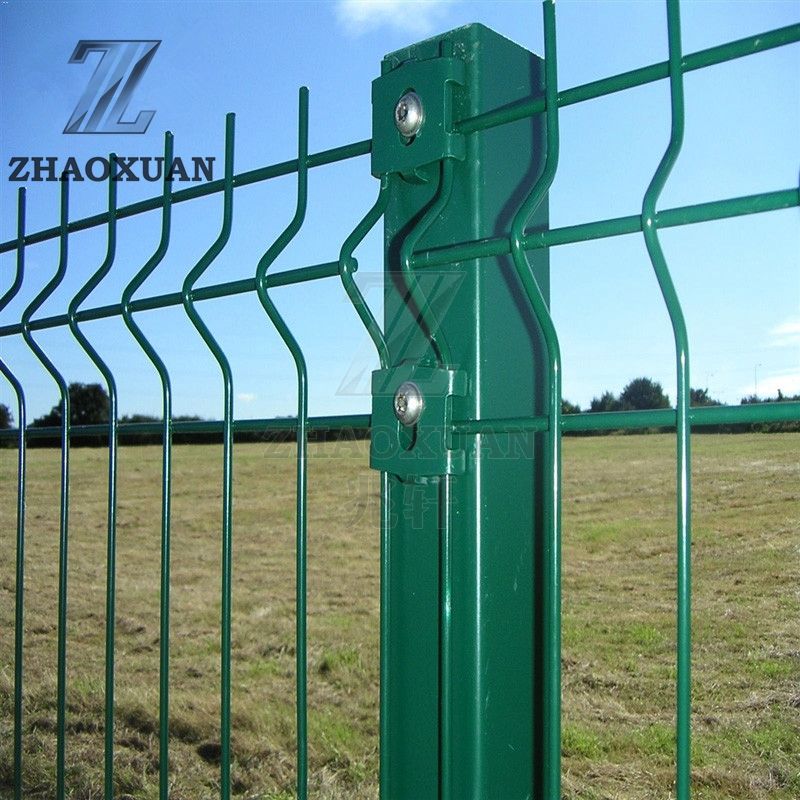

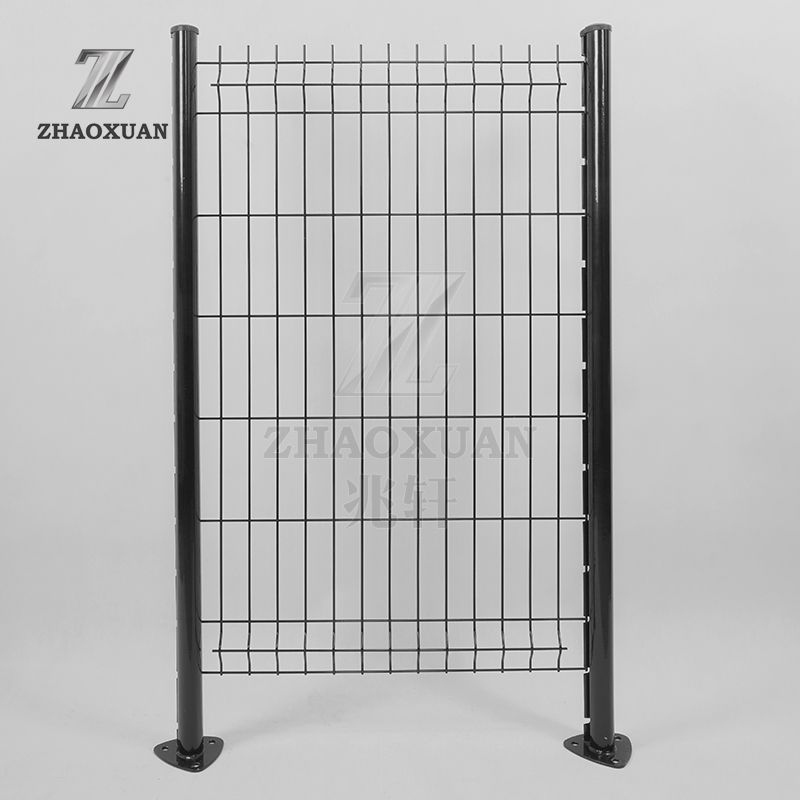

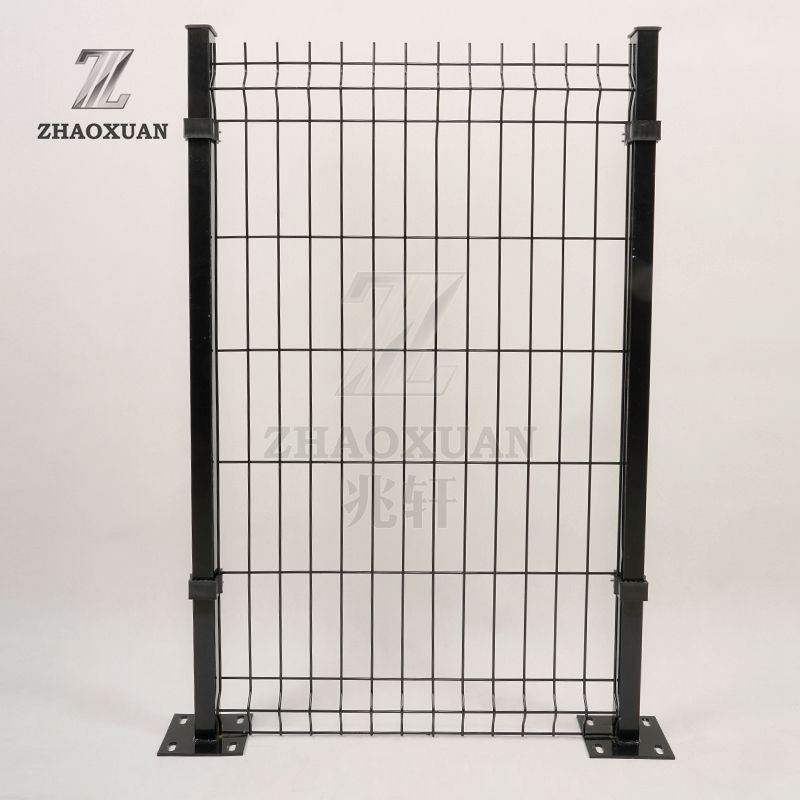

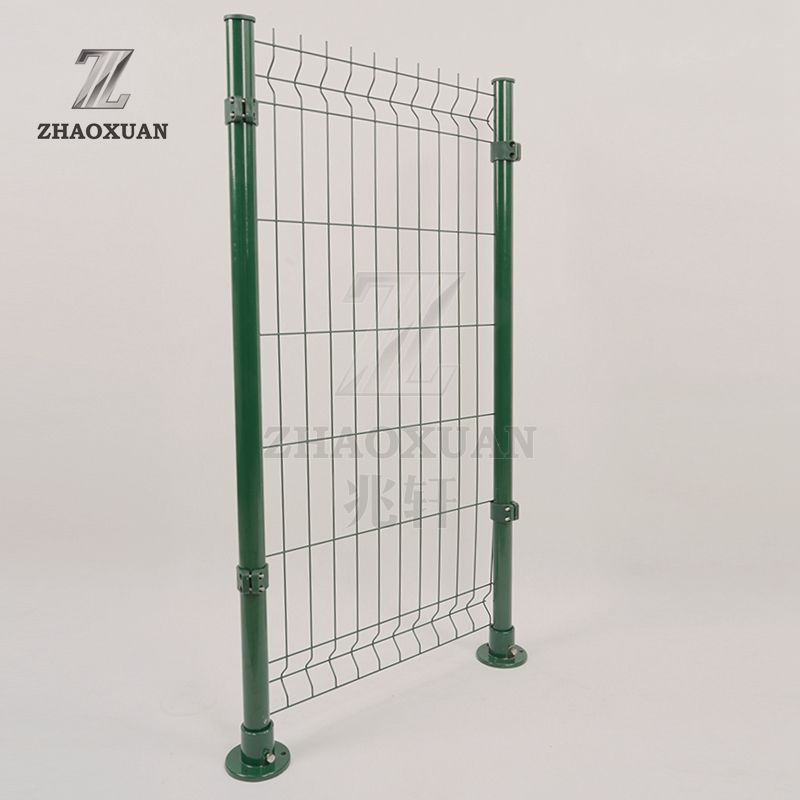

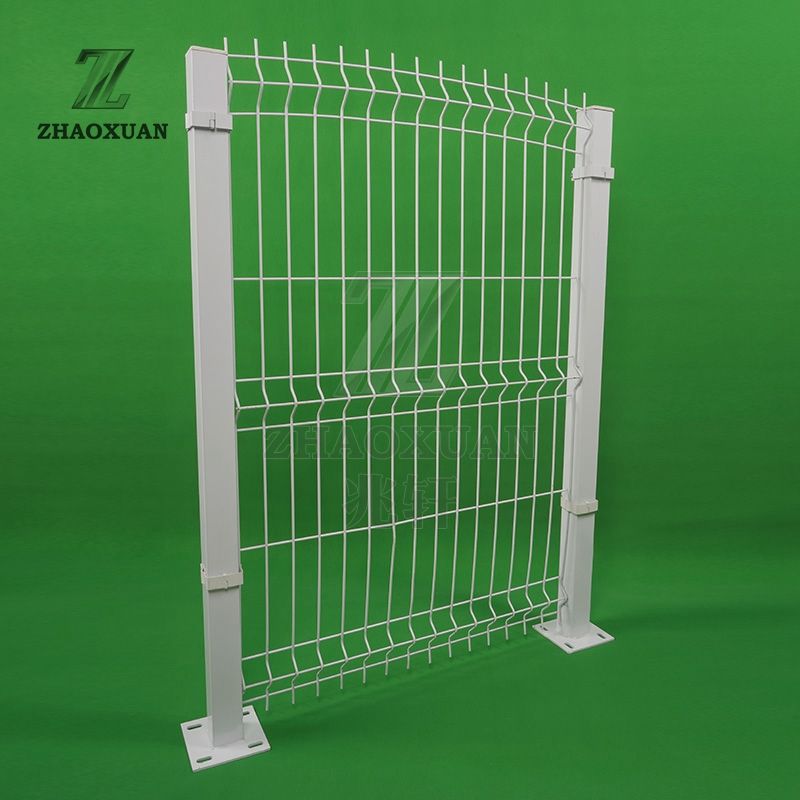

The rectangle post 3D curved wire mesh fence and mushroom shape post 3D curved wire mesh fence are connected by clips. They are durable and easily to install too.

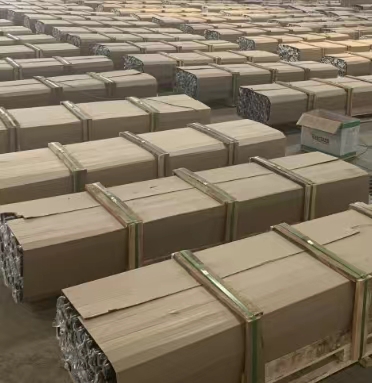

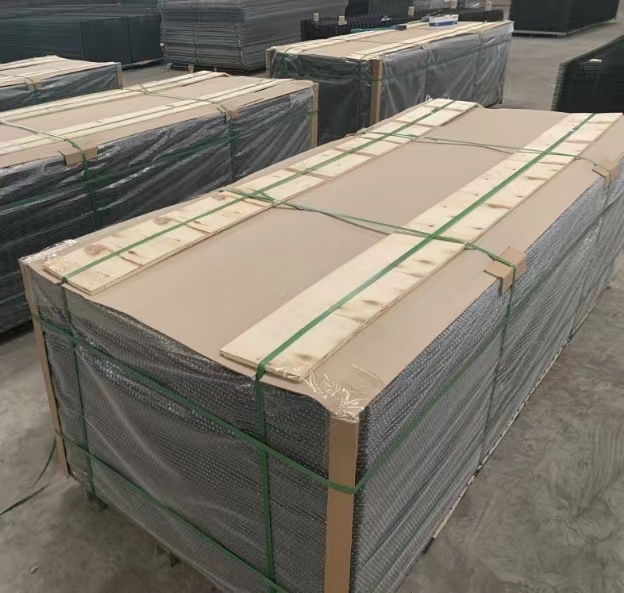

Packing of our 3D curved wire mesh fence panels and posts:

1. It has metal plate under the plastic bandage to reduce the pressure of 3D fence panels;

2. It has 4 metal corners to keep the pallet more strong;

3. It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the 3D panels;

4. It has wooden plate at the top of 3D fence panels which can protect the fence panels avoid being crushed by other pallets.

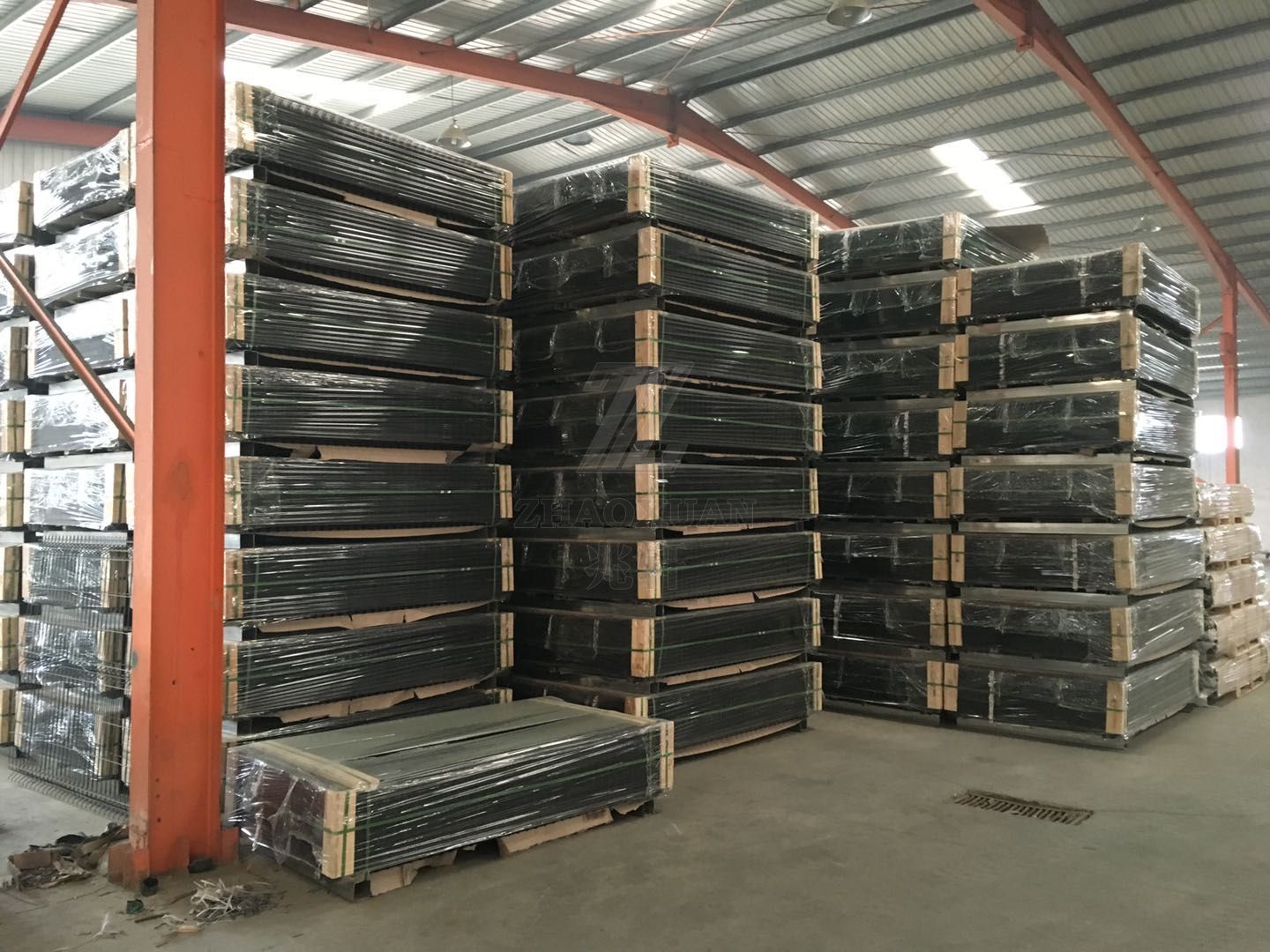

Standard packing : packing with plastic film in pallet, also can packing according to customer's requirements.

Application


Farm Fence	Garden Fence	Residential Fence	Boundary Wall Fence	Park Fence	Highway Fence	Commercial Fence
