Fence Products
– Ultimate Security & Style
The Perfect Blend of Safety and Aesthetics
Ideal for:
✅ Homes – Enhances privacy & deters intruders
✅ Highways/Railways – Engineered for durability & high impact resistance
✅ All Weather Conditions – Corrosion-resistant & long-lasting
Why Choose Our 3D Fence?
✅ Stronger Protection – Reinforced welded design
✅ Sleek Modern Look – Complements any property
✅ Easy Installation – Saves time, labor & cost
Product Description
Upgrade your property with the first choice in security fencing:

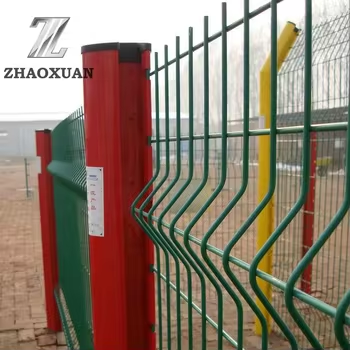

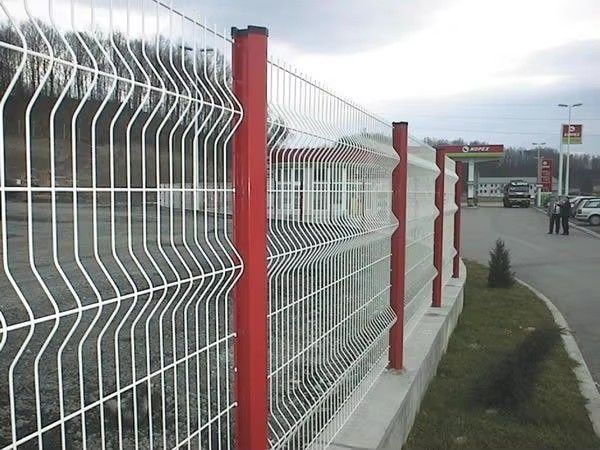

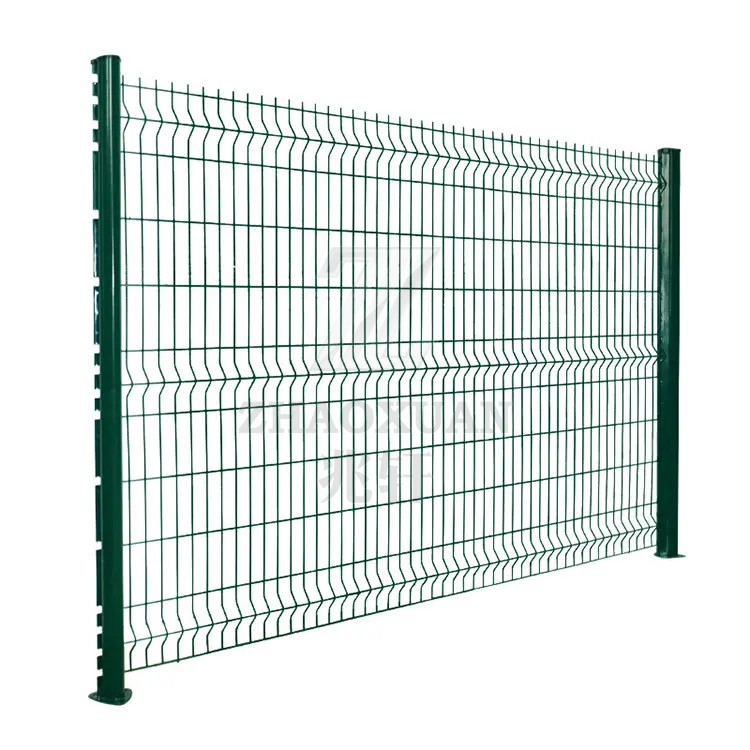

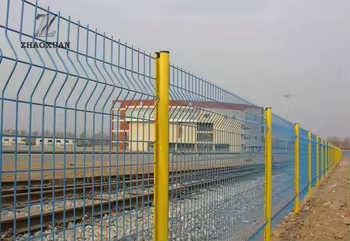

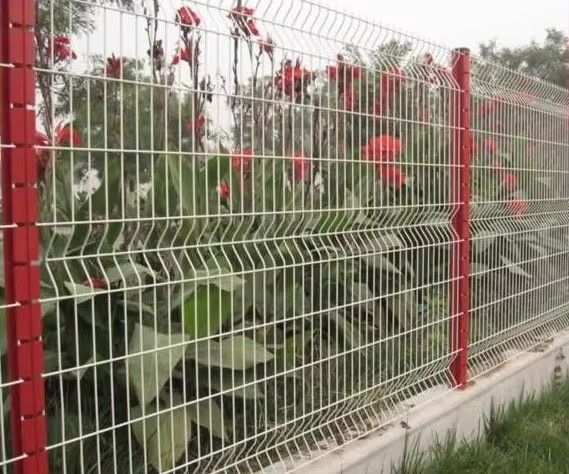

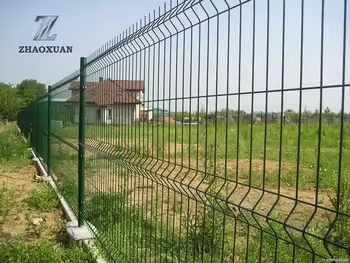

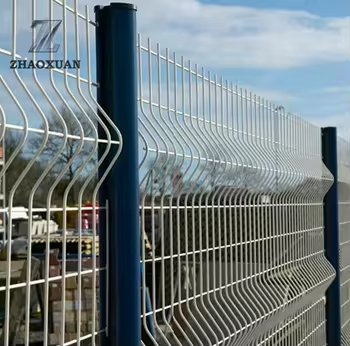

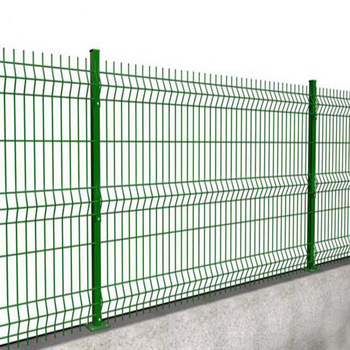

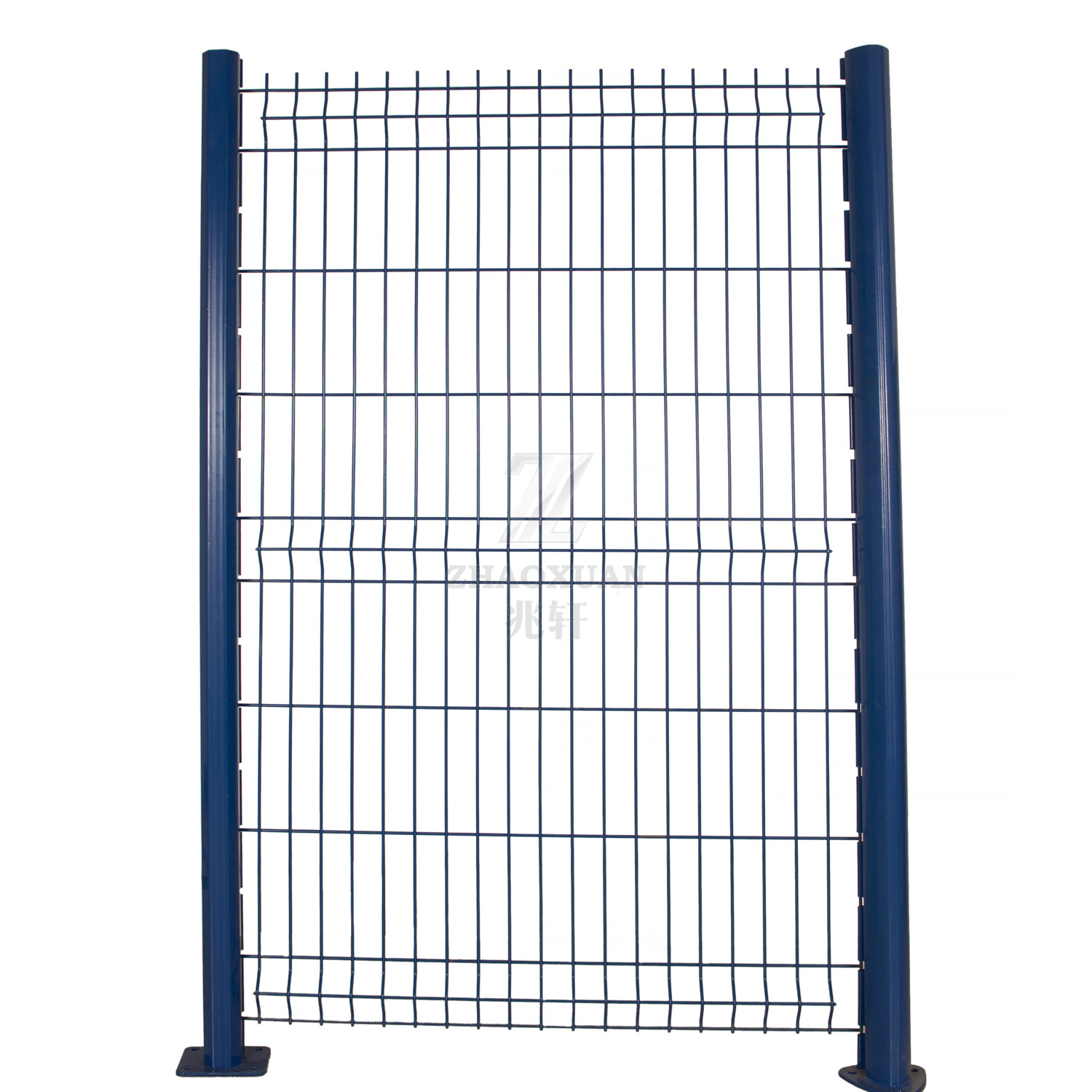

The 3D curved wire mesh fence is primarily used in residential areas to enhance property protection and privacy, it is also extensively employed in highway and railway construction due to its durability, high visibility, and ability to withstand environmental stresses.
This versatile fencing solution ensures both safety and long-term performance across diverse applications.
Common specifications
| Surface treatment | Min. | Max. | |||||||
| Electric galvanized | 20 g/m2 | 60 g/m2 | |||||||
| Hot dipped galvanized | 35 g/m2 | 700 g/m2 | |||||||
| Powder sprayed coating | 100 μm | 120 μm | |||||||
| PVC/PE dipped coating | 400 μm | 600 μm | |||||||
| Specifications | Wire Dia. (mm) | Mesh Size(mm) | Panel Width (m) | Panel Height (m) | Fold No. | Post Height (m) | Post | ||
| Fix I | Fix II | Fix III | |||||||
| 4.0 4.5 5.0 5.5 6.0 | 200×50 200×55 200×60 200×65 | 2.0 2.255 2.5 3.0 | 0.635 | 2 | 0.9 | 0.7 | 1.0 | H shaped post Peach shaped post | |
| 0.835 | 2 | 1.2 | 0.9 | 1.2 | |||||
| 1.035 | 2 | 1.4 | 1.1 | 1.4 | |||||
| 1.235 | 2 | 1.6 | 1.3 | 1.6 | |||||
| 1.435 | 2 | 1.8 | 1.5 | ||||||
| 1.535 | 3 | 1.9 | 1.6 | ||||||
| 1.635 | 3 | 2.0 | 1.7 | ||||||
| 1.735 | 3 | 2.2 | 1.8 | ||||||
| 1.835 | 3 | 2.3 | 1.9 | ||||||
| 1.935 | 3 | 2.4 | 2.0 | ||||||
| 2.035 | 4 | 2.5 | 2.1 | ||||||
| 2.235 | 4 | 2.8 | 2.3 | ||||||
| 2.435 | 4 | 3.0 | 2.5 | ||||||
| Note: Fix I: Buried in the ground Fix II: Installed with bottom base Fix III: Hanging | |||||||||
Services
✅ Manufacturing & Custom Fabrication

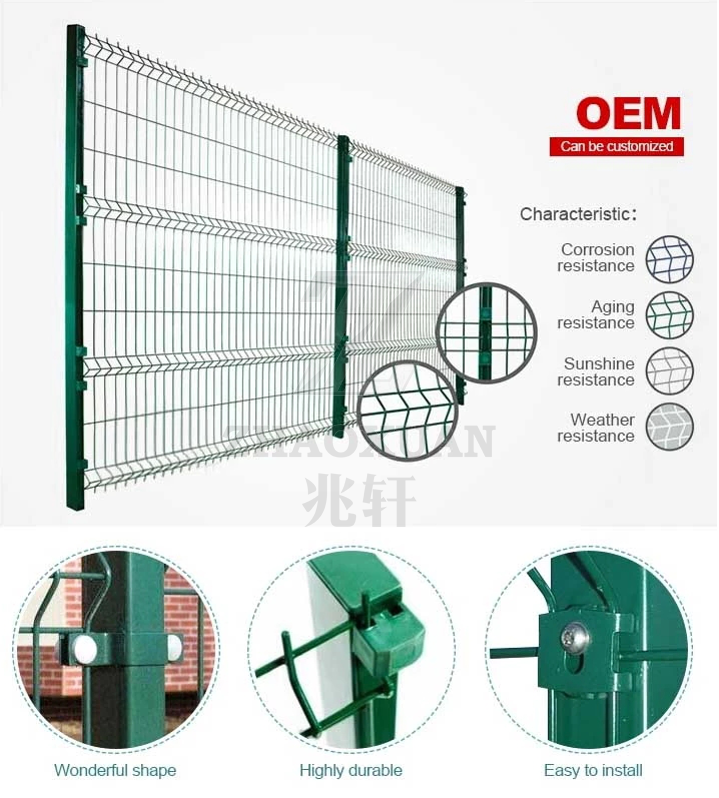

3D Panel Bending: Curved or wave-shaped fence panels for aesthetic appeal.
Material Options: Powder sprayed coated, PVC dipped coated, galvanized.
Custom Sizes: Height, width, and curvature adjustments.
✅ Installation Services
Professional Installation: Ensuring precise alignment of curved sections.
Foundation Work: Concrete footings or ground screws for stability.
Gates & Access Points: Matching curved design for consistency.
✅ Customization & Enhancements
Color Options: RAL color matching for branding or aesthetics.
Additional Services: Adding logos or patterns.

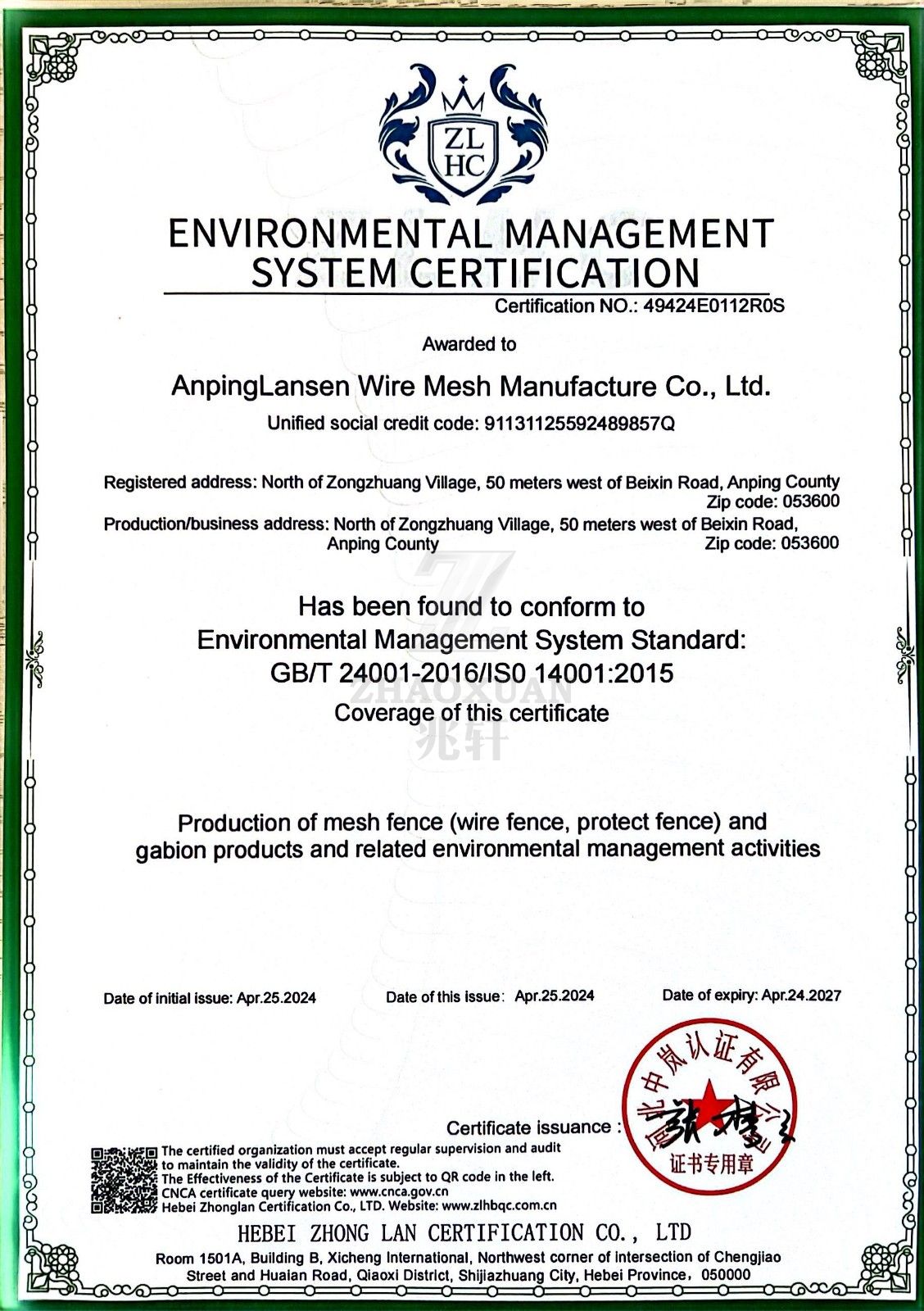

Factory Certifications
ISO 45001 ISO 9001 ISO 14001
