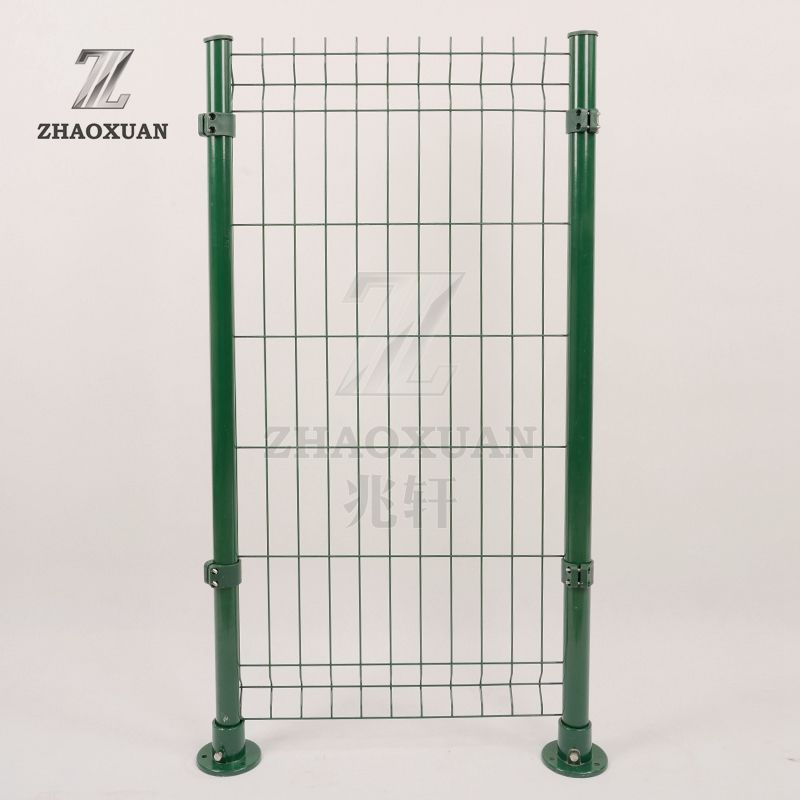

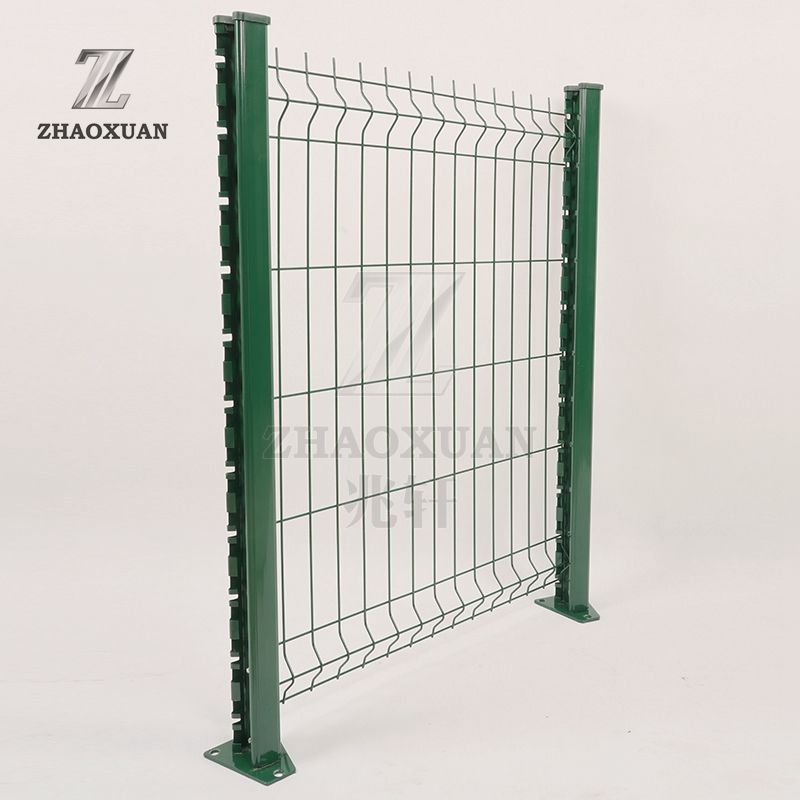

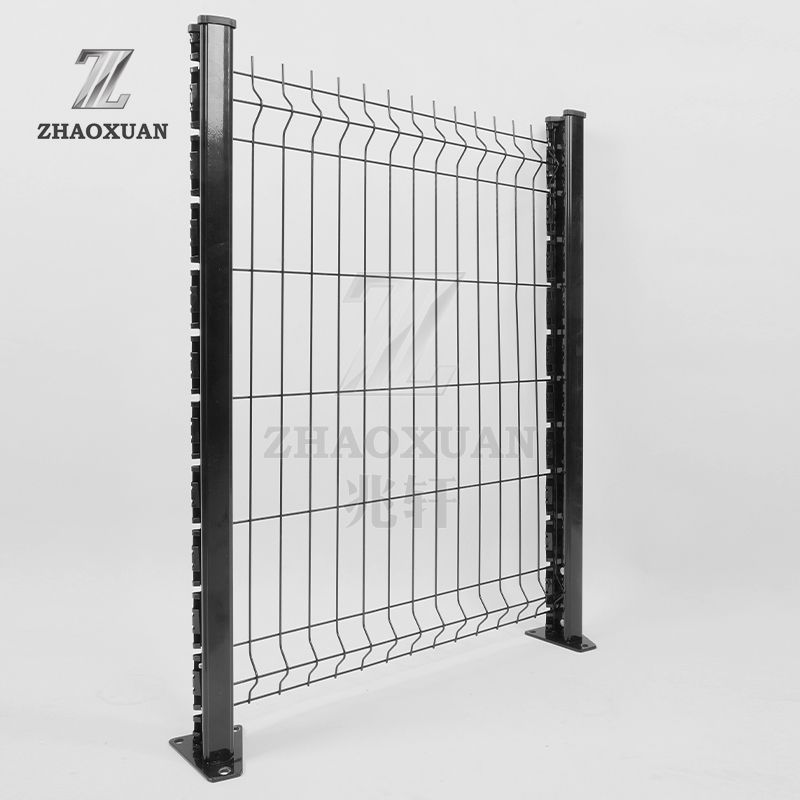

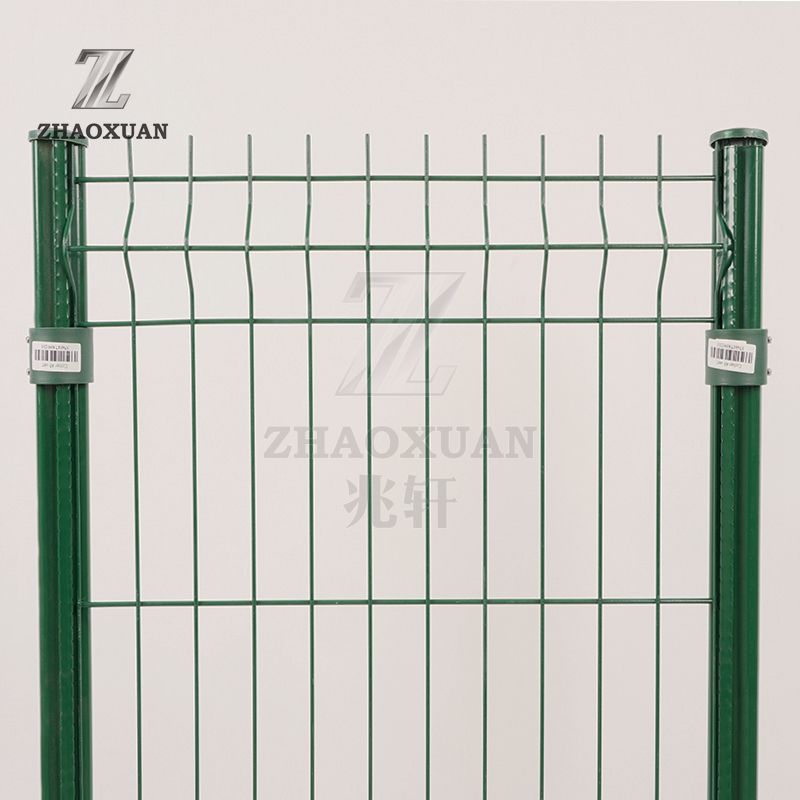

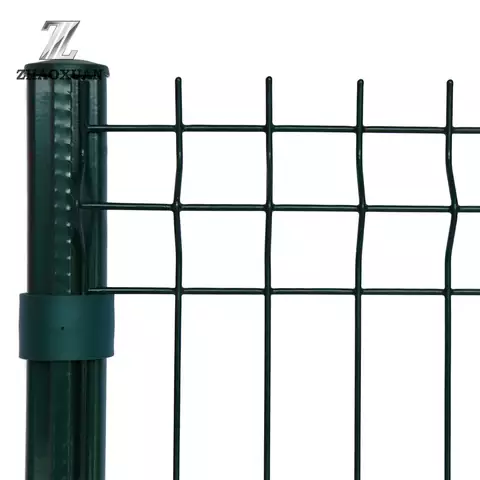

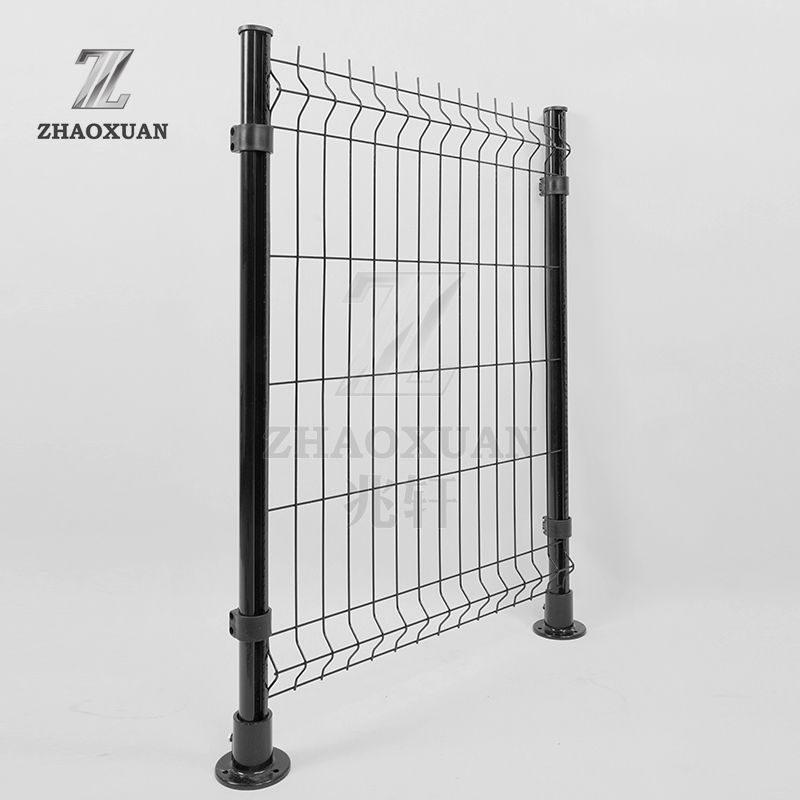

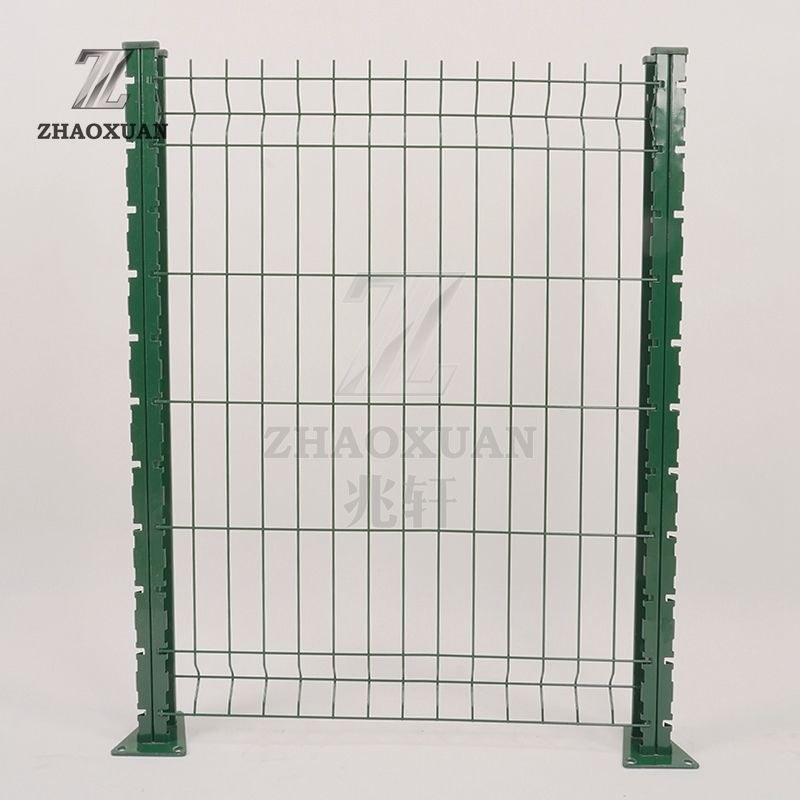

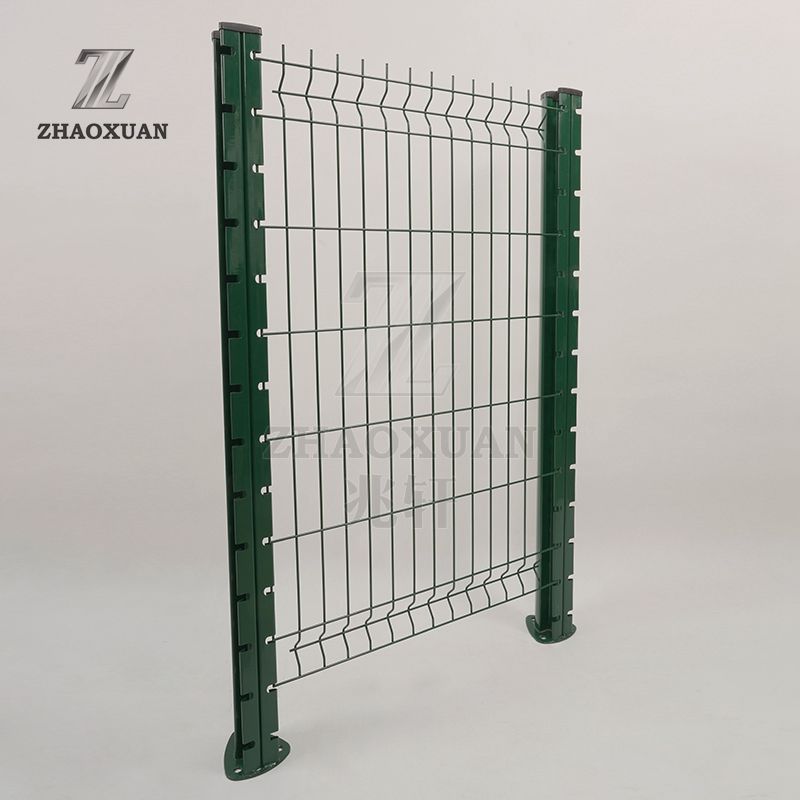

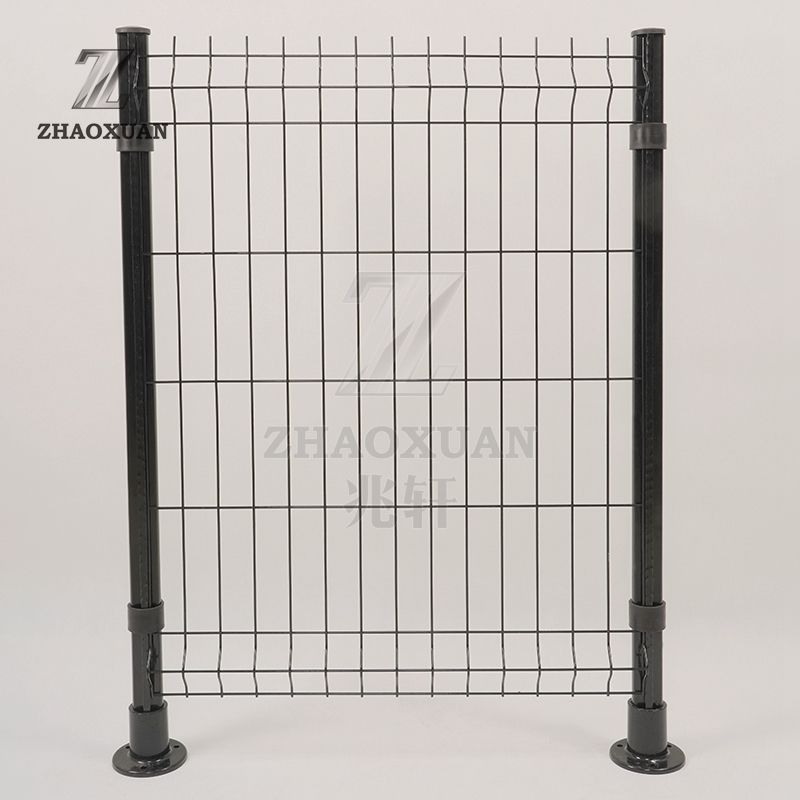

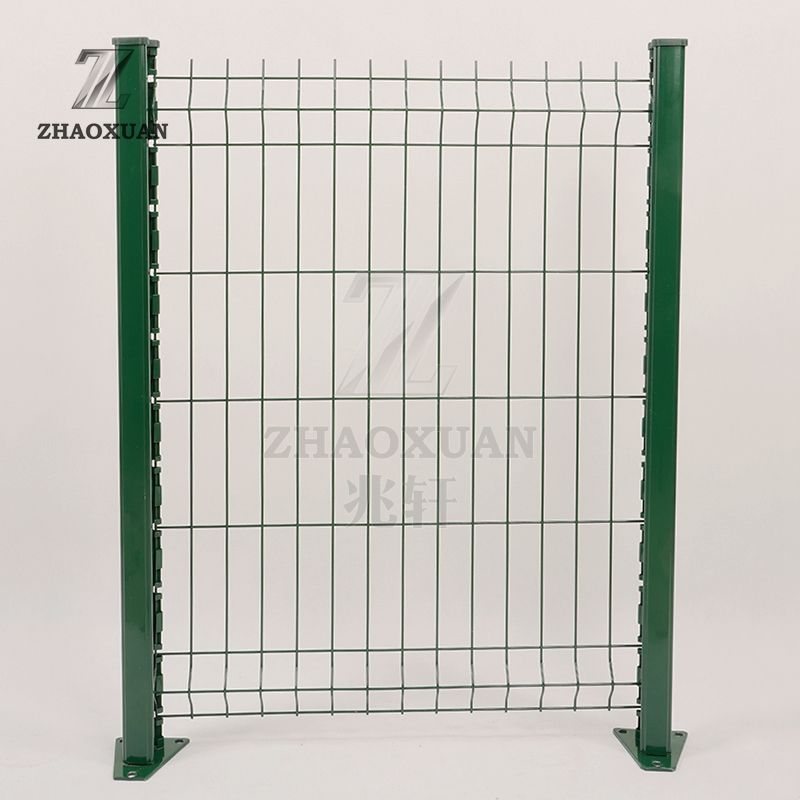

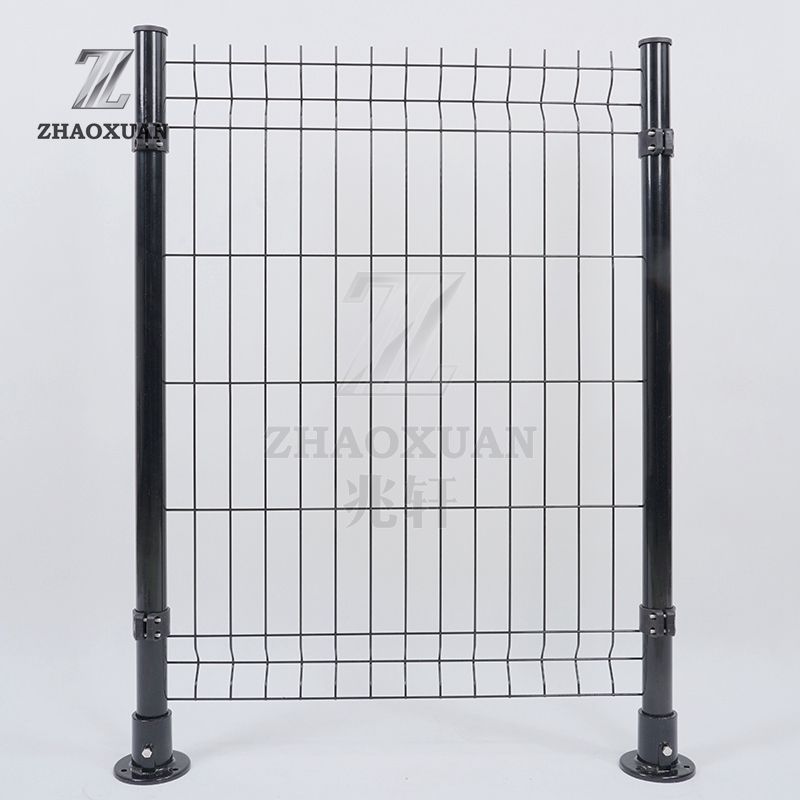

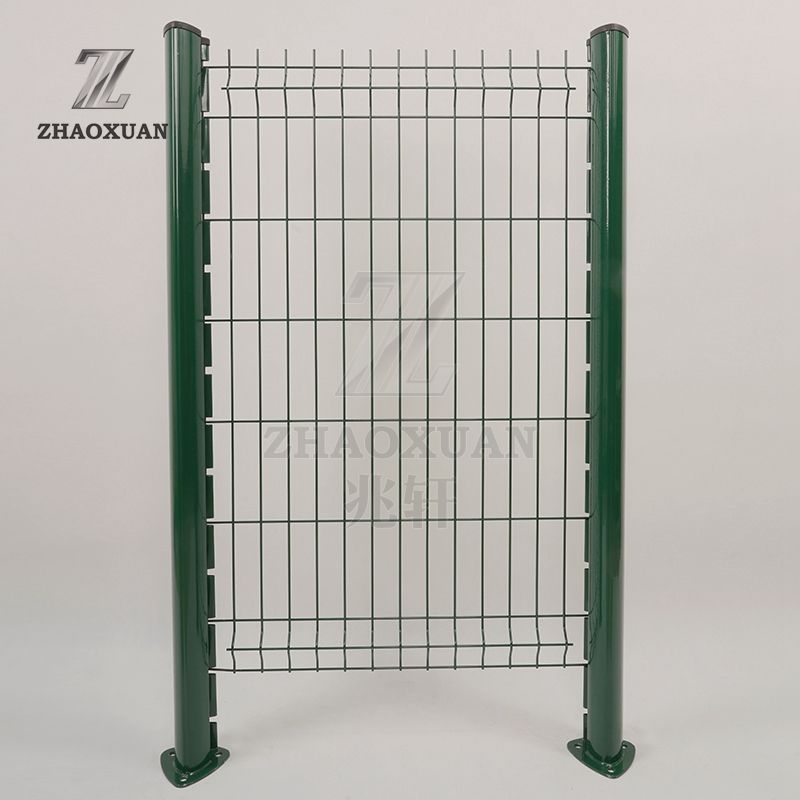

3D Curved Fence

3D Curved Fence, which is popular in many countries. This kind of fence is beautiful, better permeability, not restricted by terrain, easy to install, widely used in parks, residential buildings, stadiums, warehouses, hingway or airport service areas, railway station and other security places.

• High strength, made of high quality low carbon steel or hot rolled steel cold rolled, not easy to deformation.

• Easy to install, simple structure, can reduce construction costs..

• Anti-demolition and anti-theft, after installation, the mesh and the post will be tightly connected and will not be easily removed.

• Corrosion resistance, galvanized coating, powder coating, can effectively prevent the fence oxidation rust.

• All RAL colors, according to your environmental needs, choose the right color post.


Specification:

• Characteristic

Extraordinary and fashionable design, convenient installation, high strong quality.

The panels are welded by high quality cold drawn steel wire, after hot dipped galvanized or welded the panel with cold drawn wire directly, then to be galvanized. With the galvanized wire panels, it needs to inspect the zinclayer and others, only the eligible items could be coated. It includes the Powders Sprayed Coating or PVC / PE Dipped Coating. Then the products could last 15 years.

The panels with bends can make it more stable and stronger.

• Popular Specification

Wire Diameter	Mesh Size	Panel Width	Panel Height	Fold No.	Post's Height			Post Model
					Buried Into Ground	With Metal Base	Hanging in the Wall
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm	200*50mm 200*55mm 200*60mm 200*65mm	2.0m 2.255m 2.5m 3.0m	0.635m	2	0.9m	0.7m	1.0m	H Shape Post Peach Shape Post Mushroom Shape Post Square/Rectangle Post
			0.835m	2	1.2m	0.9m	1.2m
			1.035m	2	1.4m	1.1m	1.4m
			1.235m	2	1.6m	1.3m	1.6m
			1.435m	2	1.8m	1.5m	-
			1.535m	3	1.9m	1.6m	-
			1.635m	3	2.0m	1.7m	-
			1.735m	3	2.2m	1.8m	-
			1.835m	3	2.3m	1.9m	-
			1.935m	3	2.4m	2.0m	-
			2.035m	4	2.5m	2.1m	-
			2.235m	4	2.8m	2.3m	-
			2.435m	4	3.0m	2.5m	-

Our Features:

• Design Advantage:

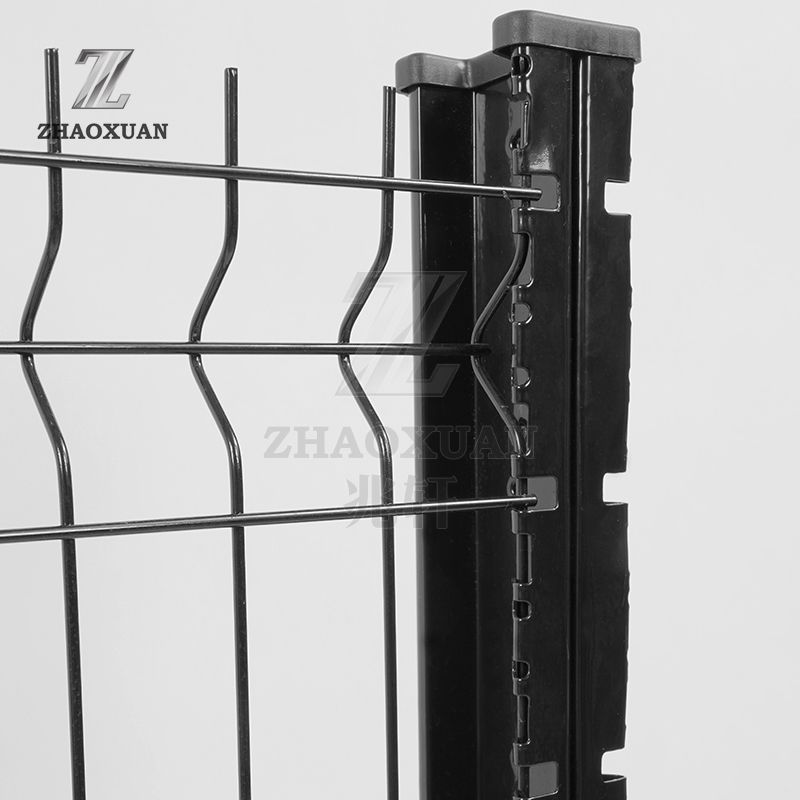

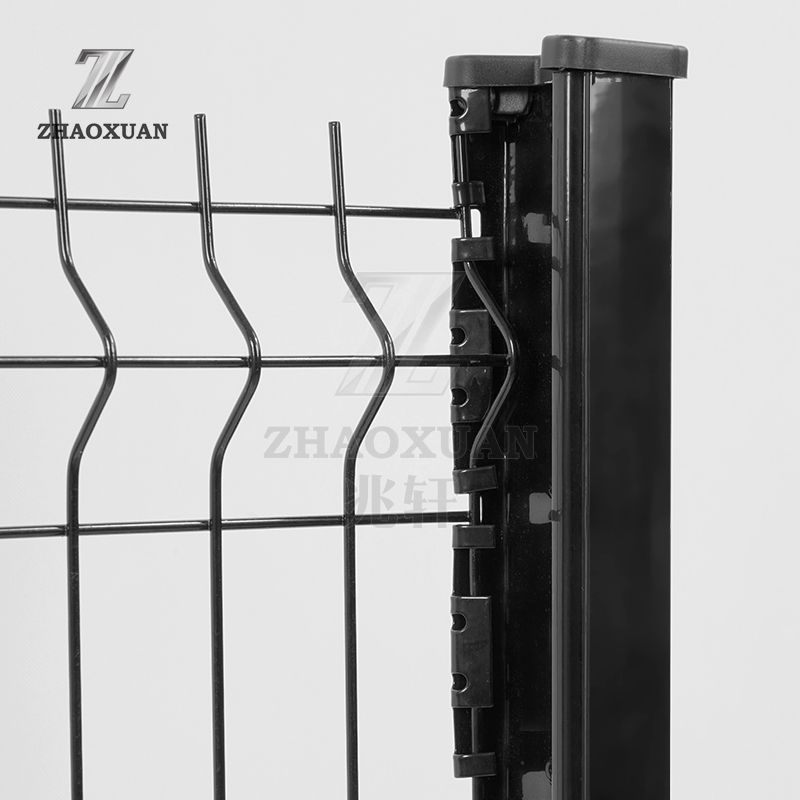

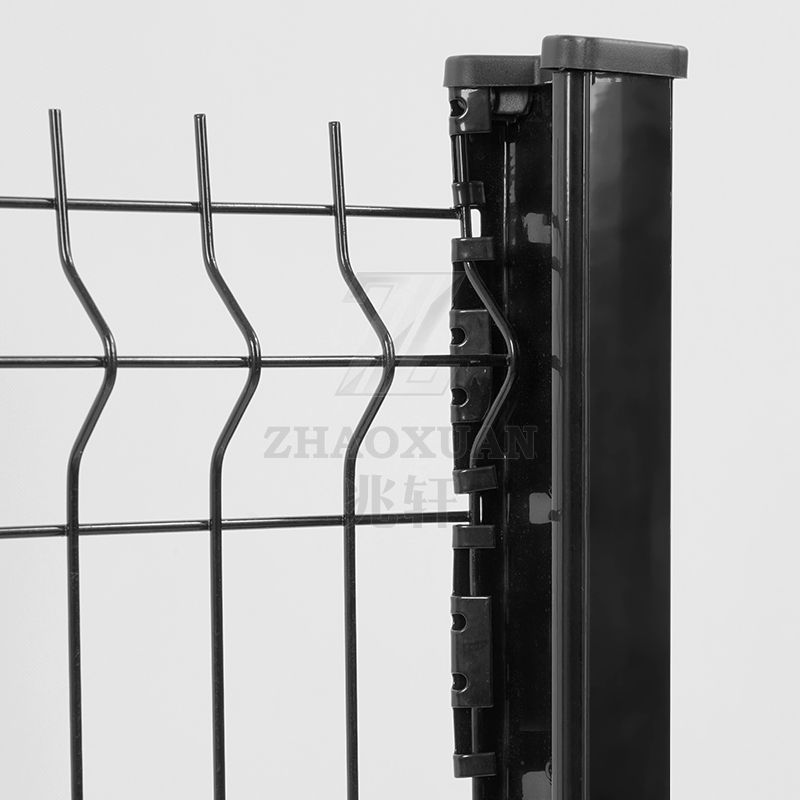

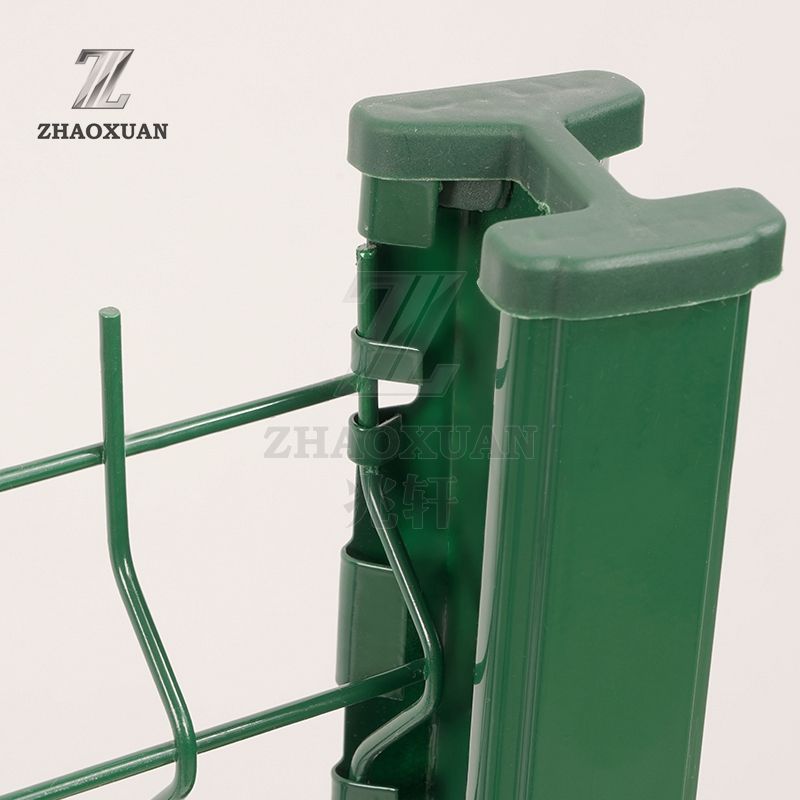

Extraordinary and fashionable design, convenient installation. The fence panels are jointed with the post without any clamps, and it is easy and convenient. It could insert into the sew of concrete base of 40mm width. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.

• High Anti-Corrosion:

Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.



Surface Treatment	Min.	Max.
Electric Gal.	20g/m2	60g/m2
Hot Dipped Gal.	35g/m2	700g/m2
Powders Sprayed Coating	100 microns	120 microns
PVC/PE Dipped Coating	400 microns	600 microns

• Choice of Color

Every RAL color desired can be delivered, for example the colors corresponding to your corporate design.

Common Colors

Dark Green RAL6005

Pure White RAL9010

Stone Grey RAL7030

Jet Black RAL9005

Anthracite Grey RAL7016

Other RAL colors are available

• Range Of Application:

Enclosing:

Road and transit (highway, railway, road, city transit)

Science & Industry Zone (factory, industry zone, sightseeing zone, new pattern farm)

Private grounds (courtyard, villadom )

Public grounds (park, zoo, train or bus station, lawn)

Commercial grounds (corporation, hotel, supermarket)

• Company Information

Hebei Zhaoxuan Trading Co., Ltd.
